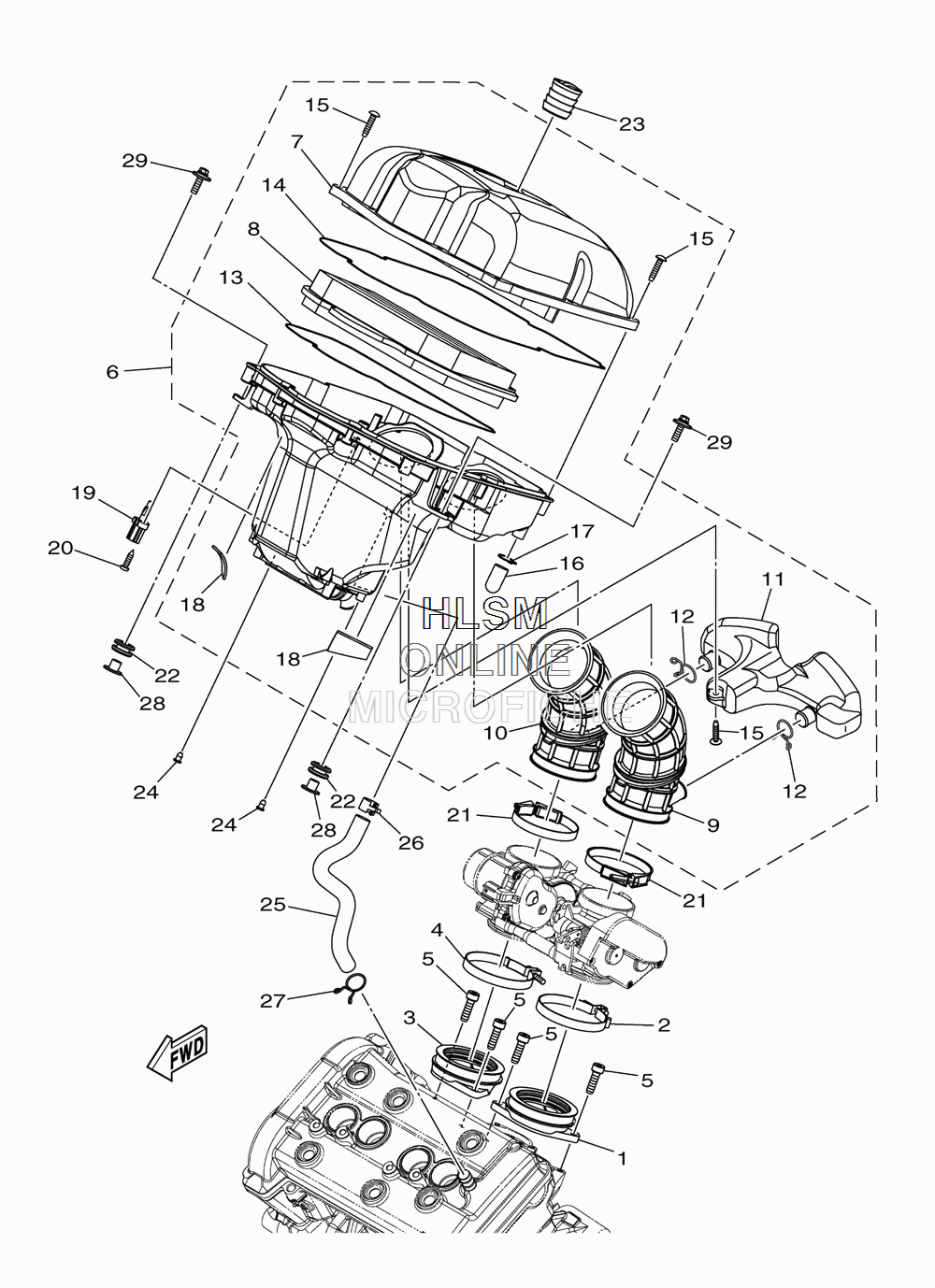

AIR CLEANER W/ INTAKE для Yamaha SUPER TENERE - 2013 года выпуска`
-
№АртикулНазвание
-
123P-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-69001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
323P-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
490450-69001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
591312-06020-00 BOLTBOLT
-
623P-14410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
723P-14421-00-00 ...CASE, AIR CLEANER 2...CASE, AIR CLEANER 2
-
823P-14451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
923P-14453-00-00 ...JOINT, AIR CLEANER 1...JOINT, AIR CLEANER 1
-
1023P-14463-00-00 ...JOINT, AIR CLEANER 2...JOINT, AIR CLEANER 2
-
1123P-13581-00-00 ...CHAMBER, AIR...CHAMBER, AIR
-
1290467-180A1-00 ...CLIP...CLIP
-
1323P-14452-00-00 ...SEAL...SEAL
-
1423P-14462-00-00 ...SEAL...SEAL
-
1590160-05013-00 ...SCREW, ROUND TAPPING...SCREW, ROUND TAPPING
-
1623P-1443E-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
1723P-14159-00-00 ...CLIP...CLIP
-
185JW-2139X-00-00 ...DAMPER...DAMPER
-
198FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2097707-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
2190450-67003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290480-14329-00 GROMMETGROMMET
-
2323P-14862-00-00 PLUGPLUG
-
2490338-05056-00 PLUGPLUG
-
2523P-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2690467-15168-00 CLIPCLIP
-
2790467-140A4-00 CLIPCLIP
-
2890387-06033-00 COLLARCOLLAR
-
2990119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
