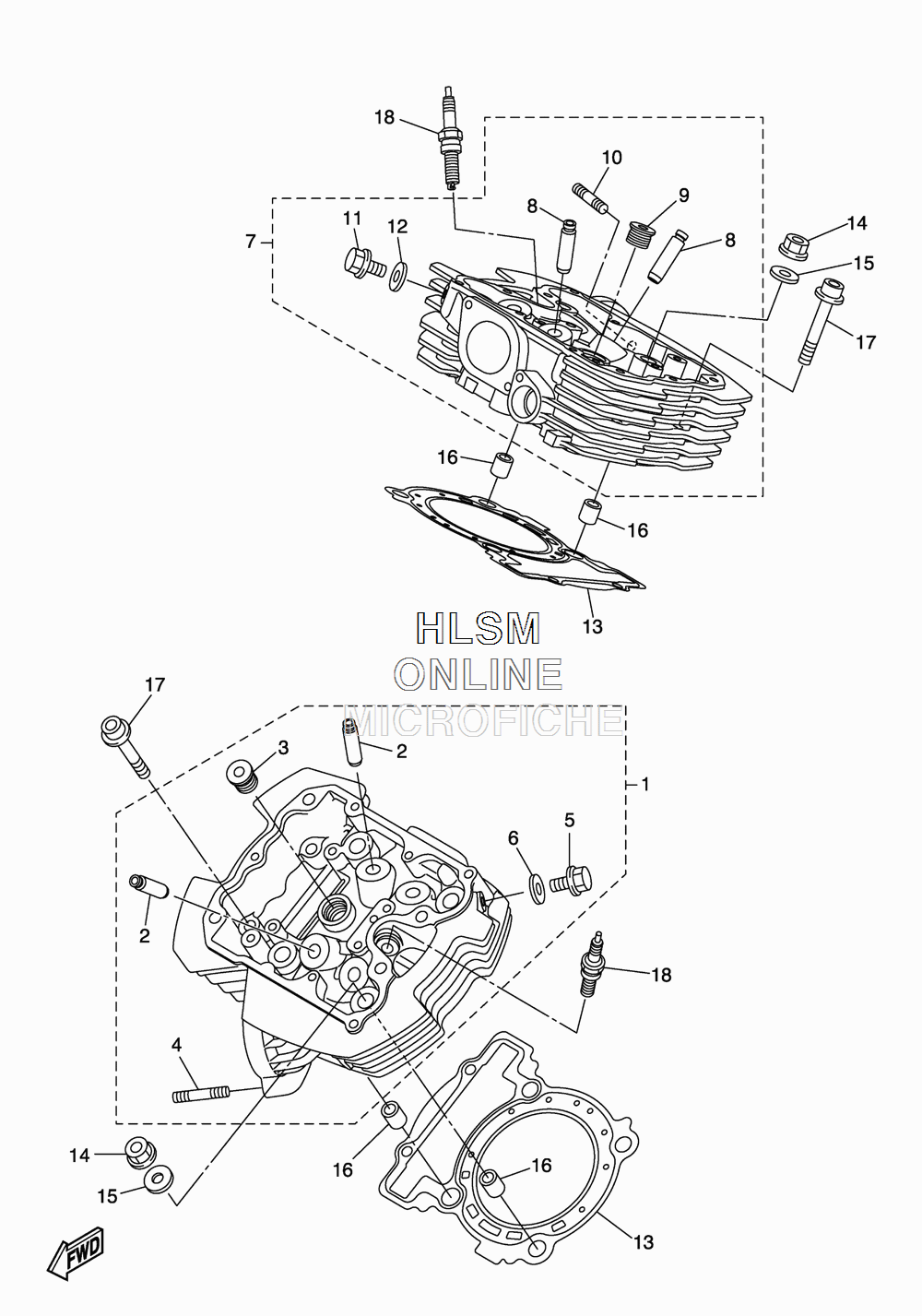

CYLINDER HEAD для Yamaha STRYKER - 2013 года выпуска`
-
№АртикулНазвание
-
13D8-11101-09-00 CYLINDER HEAD ASSY (FRONT)CYLINDER HEAD ASSY (FRONT)
-
24G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
390340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
495612-08625-00 ...BOLT, STUD...BOLT, STUD
-
595022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690430-08119-00 ...GASKET...GASKET
-
73D8-11101-19-00 CYLINDER HEAD ASSY (REAR)CYLINDER HEAD ASSY (REAR)
-
84G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
990340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1095612-08625-00 ...BOLT, STUD...BOLT, STUD
-
1195022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1290430-08119-00 ...GASKET...GASKET
-
133D8-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1490179-12004-00 NUTNUT
-
1590201-12025-00 WASHER, PLATEWASHER, PLATE
-
1691815-16017-00 PIN, DOWELPIN, DOWEL
-
1790110-08065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1894701-00422-00 PLUG, SPARK (NGK LMAR7A-9) (STD)PLUG, SPARK (NGK LMAR7A-9) (STD)
-
1894701-00423-00 PLUG, SPARK (NGK LMAR6A-9) (OPT)PLUG, SPARK (NGK LMAR6A-9) (OPT)
