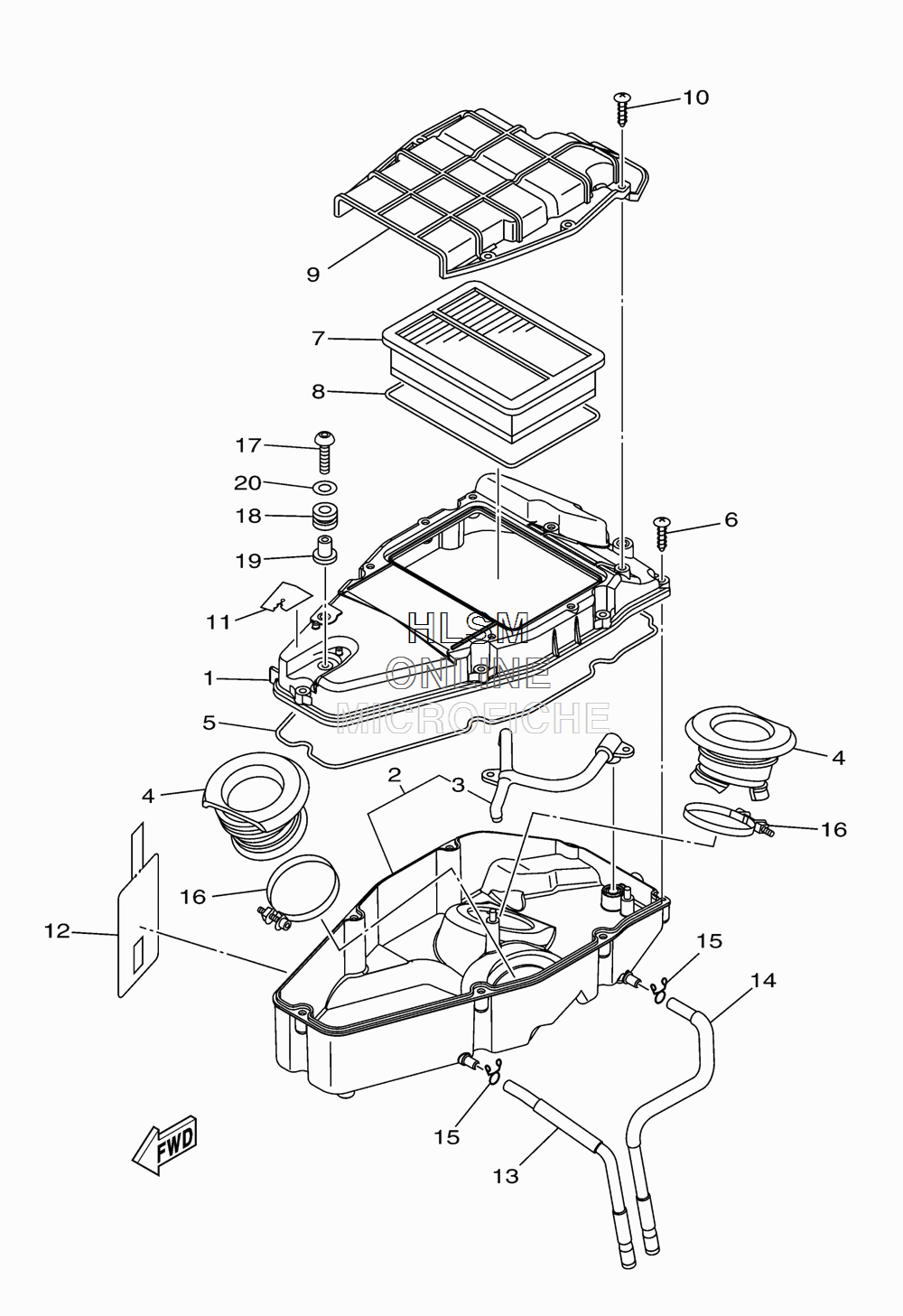

AIR CLEANER W/ INTAKE для Yamaha STRATOLINER S - 2013 года выпуска`
-
№АртикулНазвание
-
11D7-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
21D7-W1443-00-00 SILENCER, INNER SETSILENCER, INNER SET
-
31D7-14419-00-00 ...PIPE...PIPE
-
41D7-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
51D7-14457-00-00 SEALSEAL
-
697707-50030-00 SCREW, TAPPINGSCREW, TAPPING
-
71D7-14461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
81D7-14452-00-00 SEALSEAL
-
91D7-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
1097707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
111D7-14425-00-00 DAMPER 1DAMPER 1
-
121D7-14417-00-00 COVER 1COVER 1
-
131D7-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
141D7-1443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
1590467-09103-00 CLIPCLIP
-
1690450-56005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1792017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890480-14023-00 GROMMETGROMMET
-
1990387-07391-00 COLLARCOLLAR
-
2090201-064R0-00 WASHER, PLATEWASHER, PLATE
