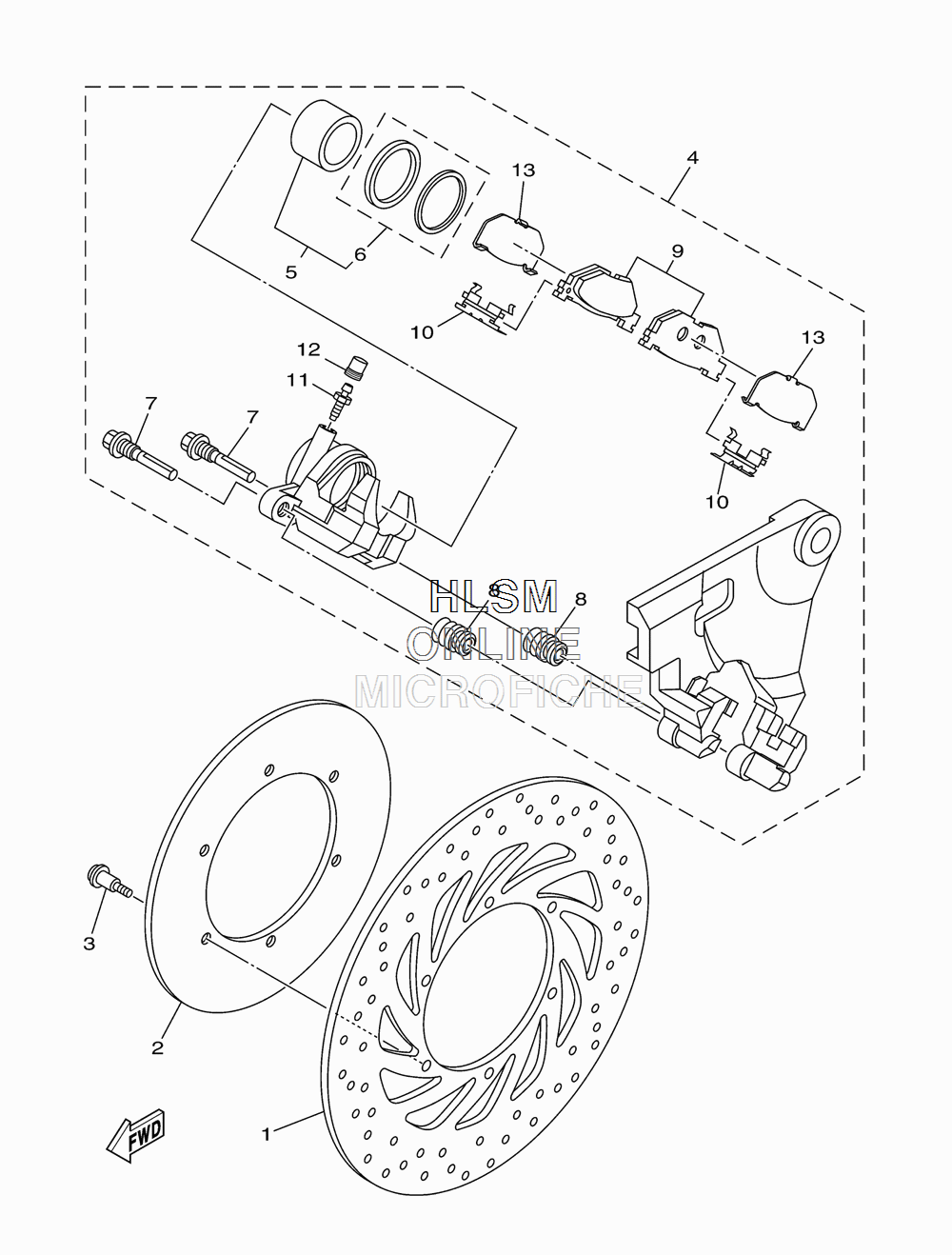

BRAKE - REAR CALIPER для Yamaha RAIDER - 2013 года выпуска`
-
№АртикулНазвание
-
15C7-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
25C7-2581A-00-00 PLATE, DISCPLATE, DISC
-
390109-06049-00 BOLTBOLT
-
45C7-2580W-20-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51D7-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65JW-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
73P6-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
84TT-25937-00-00 ...BOOT 2...BOOT 2
-
93D8-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
101D7-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1147X-25824-01-00 ...SCREW, BLEED...SCREW, BLEED
-
121D7-25825-00-00 ...CAP...CAP
-
135GJ-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
