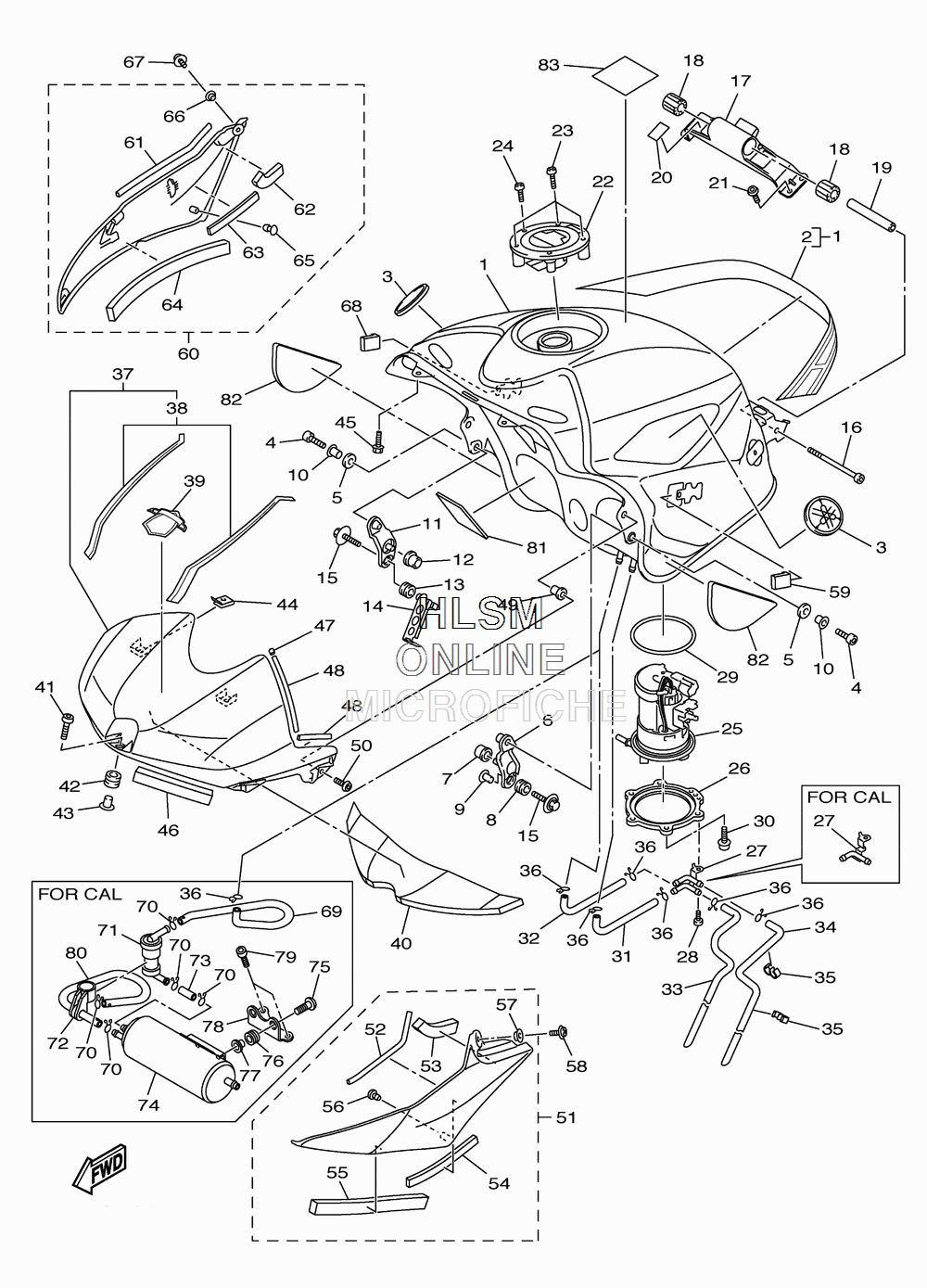

FUEL TANK для Yamaha YZF-R6 WORLD GP 50TH ANNIVERSARY - 2012 года выпуска
-
№АртикулНазвание
-
113S-Y2410-00-06 FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
-
21JS-24244-00-00 ...GRAPHIC, FUEL TANK 1...GRAPHIC, FUEL TANK 1
-
35SL-2413B-10-00 EMBLEM 3DEMBLEM 3D
-
491312-06016-00 BOLTBOLT
-
55VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
65VY-24191-10-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
75VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
890480-10542-00 GROMMETGROMMET
-
990387-066Y6-00 COLLARCOLLAR
-
1090387-06143-00 COLLARCOLLAR
-
115VY-24192-10-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
125VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1390480-10542-00 GROMMETGROMMET
-
142C0-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
1590119-06262-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1691312-06090-00 BOLTBOLT
-
172C0-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
202C0-21566-00-00 TAPE, 1TAPE, 1
-
2190111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2239P-24602-00-00 CAP ASSYCAP ASSY
-
2390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2491312-05010-00 BOLTBOLT
-
2514B-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
2613S-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2713S-24135-00-00 CLAMP 1 (EXCEPT CALIF)CLAMP 1 (EXCEPT CALIF)
-
2713S-24135-10-00 CLAMP 1 (CALIF ONLY)CLAMP 1 (CALIF ONLY)
-
2890154-05012-00 SCREW, BINDINGSCREW, BINDING
-
2919B-24486-00-00 O-RINGO-RING
-
3090110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3113S-24315-00-00 PIPE 5PIPE 5
-
3213S-24316-00-00 PIPE 6PIPE 6
-
3313S-24317-00-00 PIPE 7 (EXCEPT CALIF)PIPE 7 (EXCEPT CALIF)
-
3313S-24317-10-00 PIPE 7 (CALIF ONLY)PIPE 7 (CALIF ONLY)
-
3413S-24313-00-00 PIPE 3PIPE 3
-
3590464-09M31-00 CLAMPCLAMP
-
3690467-09006-00 CLIP (EXECPT CALIF)CLIP (EXECPT CALIF)
-
3690467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3713S-Y210A-10-1X COVER, TOP (BLUISH WHITE COCKTAIL 1)COVER, TOP (BLUISH WHITE COCKTAIL 1)
-
381JS-24230-20-00 ...GRAPHIC SET 1...GRAPHIC SET 1
-
391KB-2416B-00-00 EMBLEM 3DEMBLEM 3D
-
4013S-24854-00-00 DAMPERDAMPER
-
4190111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4290480-12314-00 GROMMETGROMMET
-
4390387-06222-00 COLLARCOLLAR
-
4490183-05074-00 NUT, SPRINGNUT, SPRING
-
4590105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
462C0-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
4713S-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
482C0-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
4990179-05523-00 NUTNUT
-
5098902-05014-00 SCREW, BINDSCREW, BIND
-
5113S-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
524C8-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
532C0-2414P-00-00 ...DAMPER, PLATE 5...DAMPER, PLATE 5
-
544C8-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
552C0-24184-00-00 ...DAMPER, LOCATING 4...DAMPER, LOCATING 4
-
5690338-06018-00 ...PLUG...PLUG
-
5790387-05035-00 ...COLLAR...COLLAR
-
5898902-05008-00 SCREW, BINDSCREW, BIND
-
595PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
6013S-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
614C8-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
622C0-2414P-00-00 ...DAMPER, PLATE 5...DAMPER, PLATE 5
-
634C8-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
642C0-24184-00-00 ...DAMPER, LOCATING 4...DAMPER, LOCATING 4
-
6590338-06018-00 ...PLUG...PLUG
-
6690387-05035-00 ...COLLAR...COLLAR
-
6798902-05008-00 SCREW, BINDSCREW, BIND
-
685PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
6913S-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
7090467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
712C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
722C0-24398-00-00 BAND 1 (CALIF ONLY)BAND 1 (CALIF ONLY)
-
7390445-11065-00 HOSE (L30) (CALIF ONLY)HOSE (L30) (CALIF ONLY)
-
745EL-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
7590111-06091-00 BOLT,HEX. SOCKET BUTTON (CALIF ONLY)BOLT,HEX. SOCKET BUTTON (CALIF ONLY)
-
7690480-13018-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
7790387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
782C0-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
7990110-06175-00 BOLT, HEXAGON SOCKET HEAD (CALIF ONLY)BOLT, HEXAGON SOCKET HEAD (CALIF ONLY)
-
802C0-1443J-01-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
8113S-24145-10-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
822C0-24145-10-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
834C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
