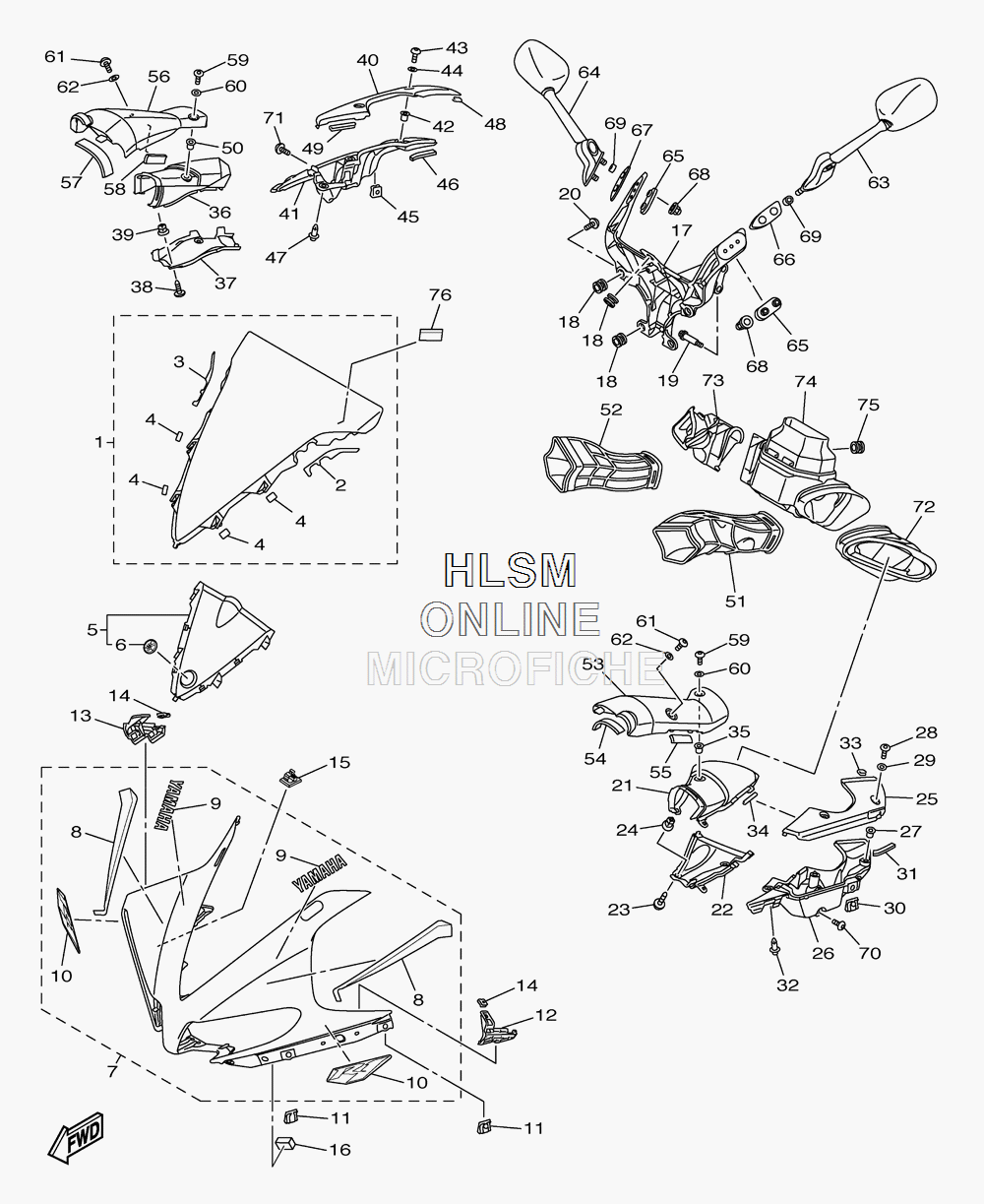

COWLING для Yamaha YZF-R1 WORLD GP 50TH ANNIVERSARY EDITION - 2012 года выпуска

№

Артикул

Название
1

14B-28380-40-00 WINDSCREEN ASSY

WINDSCREEN ASSY
2

14B-28428-10-00 ...SEAL 1

...SEAL 1
3

14B-28429-10-00 ...SEAL 2

...SEAL 2
4

4C8-21735-00-00 ...SEAL 2

...SEAL 2
5

1KB-2830P-10-00 PANEL ASSY

PANEL ASSY
6

4KN-2836B-20-00 ...TUNING FORK MARK

...TUNING FORK MARK
7

1KB-W283G-30-0X BODY, FRONT UPPER 1 (BLUISH WHITE COCKTAIL/VIVID RED COCKTAIL)

BODY, FRONT UPPER 1 (BLUISH WHITE COCKTAIL/VIVID RED COCKTAIL)
8

1KB-2834X-00-00 ...GRAPHIC SET 1, COWLING

...GRAPHIC SET 1, COWLING
9

1KB-2153B-00-00 ...EMBLEM, YAMAHA

...EMBLEM, YAMAHA
10

1KB-28368-00-00 ...EMBLEM

...EMBLEM
11

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
12

1KB-2831U-00-00 STAY, SIDE 1

STAY, SIDE 1
13

1KB-2832U-00-00 STAY, SIDE 1

STAY, SIDE 1
14

90183-05076-00 NUT,SPRING

NUT,SPRING
15

90464-16020-00 CLAMP

CLAMP
16

90520-15010-00 DAMPER, PLATE

DAMPER, PLATE
17

14B-28356-10-00 STAY 1

STAY 1
18

4XV-83513-00-00 DAMPER

DAMPER
19

90105-08052-00 BOLT, FLANGE

BOLT, FLANGE
20

90160-05006-00 SCREW, ROUND TAPPING

SCREW, ROUND TAPPING
21

14B-2838N-00-P5 DUCT 1 (MAT BLACK 2)

DUCT 1 (MAT BLACK 2)
22

14B-2838T-00-00 DUCT 3

DUCT 3
23

97702-50012-00 SCREW, TAPPING

SCREW, TAPPING
24

90480-08005-00 GROMMET

GROMMET
25

14B-2839K-00-P5 LID 1 (MAT BLACK 2)

LID 1 (MAT BLACK 2)
26

14B-2838V-00-00 BOX 3

BOX 3
27

90179-05523-00 NUT

NUT
28

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
29

90202-05180-00 WASHER, PLATE

WASHER, PLATE
30

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
31

J44-78248-00-00 SEAL 4

SEAL 4
32

90269-07077-00 RIVET

RIVET
33

90520-01001-00 DAMPER, PLATE

DAMPER, PLATE
34

90520-03005-00 DAMPER, PLATE

DAMPER, PLATE
35

90179-05523-00 NUT

NUT
36

14B-2838R-00-P5 DUCT 2 (MAT BLACK 2)

DUCT 2 (MAT BLACK 2)
37

14B-2838U-00-00 DUCT 4

DUCT 4
38

97702-50012-00 SCREW, TAPPING

SCREW, TAPPING
39

90480-08005-00 GROMMET

GROMMET
40

14B-2839L-00-P5 LID 2 (MAT BLACK 2)

LID 2 (MAT BLACK 2)
41

14B-2838W-00-00 BOX 4

BOX 4
42

90179-05523-00 NUT

NUT
43

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
44

90202-05180-00 WASHER, PLATE

WASHER, PLATE
45

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
46

J44-78248-00-00 SEAL 4

SEAL 4
47

90269-07077-00 RIVET

RIVET
48

90520-01001-00 DAMPER, PLATE

DAMPER, PLATE
49

90520-03005-00 DAMPER, PLATE

DAMPER, PLATE
50

90179-05523-00 NUT

NUT
51

14B-2838J-00-00 DUCT 5

DUCT 5
52

14B-2838P-00-00 DUCT 6

DUCT 6
53

14B-2837L-00-P5 PANEL, CONSOLE 1 (MAT BLACK 2)

PANEL, CONSOLE 1 (MAT BLACK 2)
54

4C8-2112D-00-00 DAMPER, 3

DAMPER, 3
55

2S3-2111D-00-00 SEAL 1

SEAL 1
56

14B-2837M-00-P5 PANEL, CONSOLE 2 (MAT BLACK 2)

PANEL, CONSOLE 2 (MAT BLACK 2)
57

4C8-2112D-00-00 DAMPER, 3

DAMPER, 3
58

2S3-2111D-00-00 SEAL 1

SEAL 1
59

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
60

90202-05180-00 WASHER, PLATE

WASHER, PLATE
61

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
62

90202-05180-00 WASHER, PLATE

WASHER, PLATE
63

14B-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (LEFT)
64

14B-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)

REAR VIEW MIRROR ASSY (RIGHT)
65

4C8-26298-00-00 PLATE, MIRROR FITTING 1

PLATE, MIRROR FITTING 1
66

14B-2628N-00-00 BASE, MIRROR (LEFT)

BASE, MIRROR (LEFT)
67

14B-2628R-00-00 BASE, MIRROR (RIGHT)

BASE, MIRROR (RIGHT)
68

90176-06055-00 NUT, CROWN

NUT, CROWN
69

90387-064T3-00 COLLAR

COLLAR
70

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
71

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
72

14B-2846C-00-00 BOX, SIDE 1

BOX, SIDE 1
73

14B-2846D-00-00 BOX, SIDE 2

BOX, SIDE 2
74

14B-2845D-10-00 BOX, FRONT

BOX, FRONT
75

90480-13567-00 GROMMET

GROMMET
76

4B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1

LABEL, NOTICE WINDSHIELD 1
