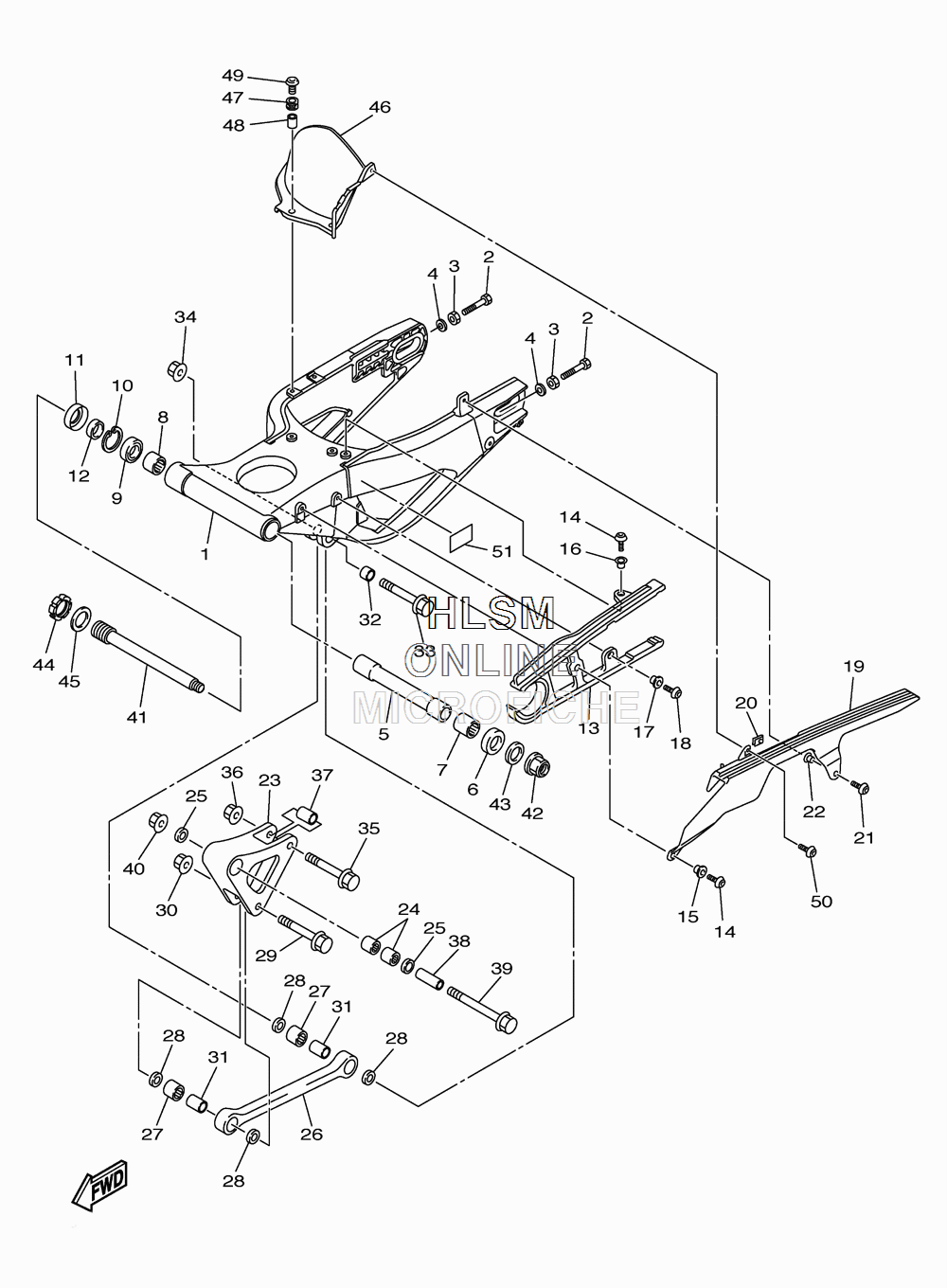

SUSPENSION - REAR ARM для Yamaha YZF-R1 (BLUISH WHITE COCKTAIL) - 2012 года выпуска`
-
№АртикулНазвание
-
114B-22110-00-P0 REAR ARM COMP. (MAT BLACK 2)REAR ARM COMP. (MAT BLACK 2)
-
290101-08013-00 BOLTBOLT
-
395302-08600-00 NUTNUT
-
490201-08057-00 WASHER, PLATEWASHER, PLATE
-
514B-22184-00-00 BUSHBUSH
-
65VY-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
793317-52897-00 BEARINGBEARING
-
893317-428U8-00 BEARINGBEARING
-
993306-97202-00 BEARINGBEARING
-
1099009-42500-00 CIRCLIPCIRCLIP
-
1193106-28004-00 OIL SEALOIL SEAL
-
1290387-22023-00 COLLARCOLLAR
-
1314B-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1492012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-062X0-00 COLLARCOLLAR
-
1690387-06066-00 COLLARCOLLAR
-
1790387-06066-00 COLLARCOLLAR
-
1892012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1914B-22311-00-00 CASE, CHAINCASE, CHAIN
-
2090183-05076-00 NUT,SPRINGNUT,SPRING
-
2190111-06083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290387-07717-00 COLLARCOLLAR
-
231KB-2217A-00-00 ARM, RELAYARM, RELAY
-
2493315-31758-00 BEARINGBEARING
-
2593109-17071-00 OIL SEALOIL SEAL
-
261KB-2217M-00-00 ARM 1ARM 1
-
2793315-31758-00 BEARINGBEARING
-
2893109-17071-00 OIL SEALOIL SEAL
-
2990105-10017-00 BOLT, FLANGEBOLT, FLANGE
-
3095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3190387-1012A-00 COLLARCOLLAR
-
3290387-1013U-00 COLLARCOLLAR
-
3390105-10018-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590105-10017-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3790387-1012A-00 COLLARCOLLAR
-
3890387-10034-00 COLLARCOLLAR
-
3990105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
4095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4114B-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
4290185-20008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390201-20026-00 WASHER, PLATEWASHER, PLATE
-
444C8-22252-00-00 NUTNUT
-
4590201-30016-00 WASHER, PLATEWASHER, PLATE
-
4614B-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
4790480-12005-00 GROMMETGROMMET
-
4890387-06057-00 COLLARCOLLAR
-
4990149-06302-00 SCREWSCREW
-
5090111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5114B-21668-00-00 LABEL, TIRELABEL, TIRE
