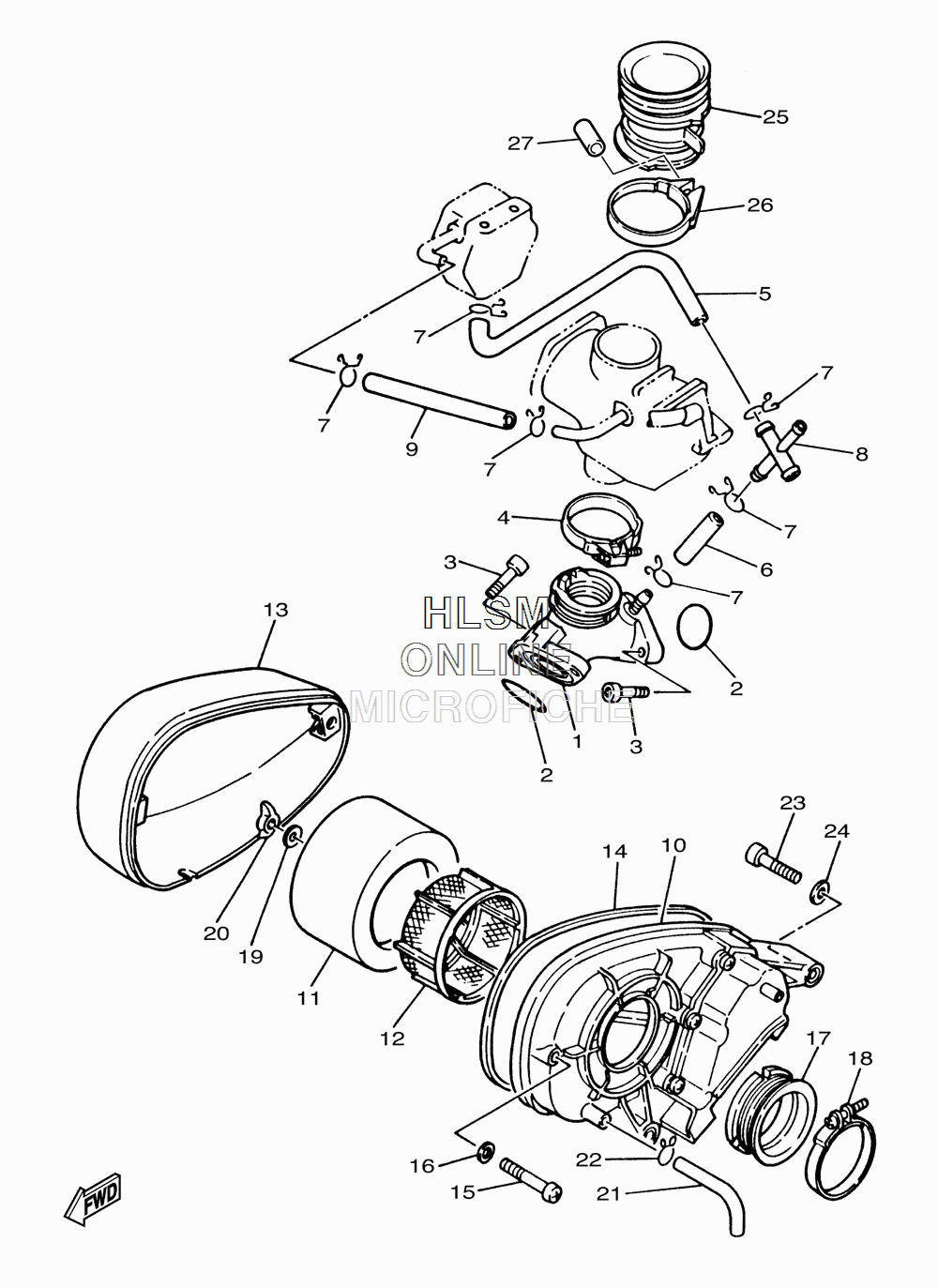

AIR CLEANER W/ INTAKE для Yamaha V STAR 250 - 2012 года выпуска`
-
№АртикулНазвание
-
12UJ-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-30611-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
41HX-13575-00-00 BANDBAND
-
52UJ-13978-00-00 PIPE, REGULATORPIPE, REGULATOR
-
690445-11763-00 HOSE (L45)HOSE (L45)
-
790467-10041-00 CLIPCLIP
-
83BG-13595-00-00 JOINTJOINT
-
990445-11061-00 HOSEHOSE
-
102UJ-14401-00-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
112UJ-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
122UJ-14458-00-00 GUIDEGUIDE
-
132UJ-14422-00-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
142UJ-14452-00-00 SEALSEAL
-
1598507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
172UJ-14485-00-00 PIPE, JOINTPIPE, JOINT
-
1890460-54111-00 CLAMP, HOSECLAMP, HOSE
-
1990201-05036-00 WASHER, PLATEWASHER, PLATE
-
2090175-05005-00 NUT, WINGNUT, WING
-
212UJ-14419-00-00 PIPEPIPE
-
2290467-11106-00 CLIPCLIP
-
2391317-06025-00 BOLTBOLT
-
2492907-06600-00 WASHER, PLATEWASHER, PLATE
-
252UJ-14469-00-00 FUNNEL, AIRFUNNEL, AIR
-
2690460-54085-00 CLAMP, HOSECLAMP, HOSE
-
273HT-84385-00-00 CAP 1CAP 1
