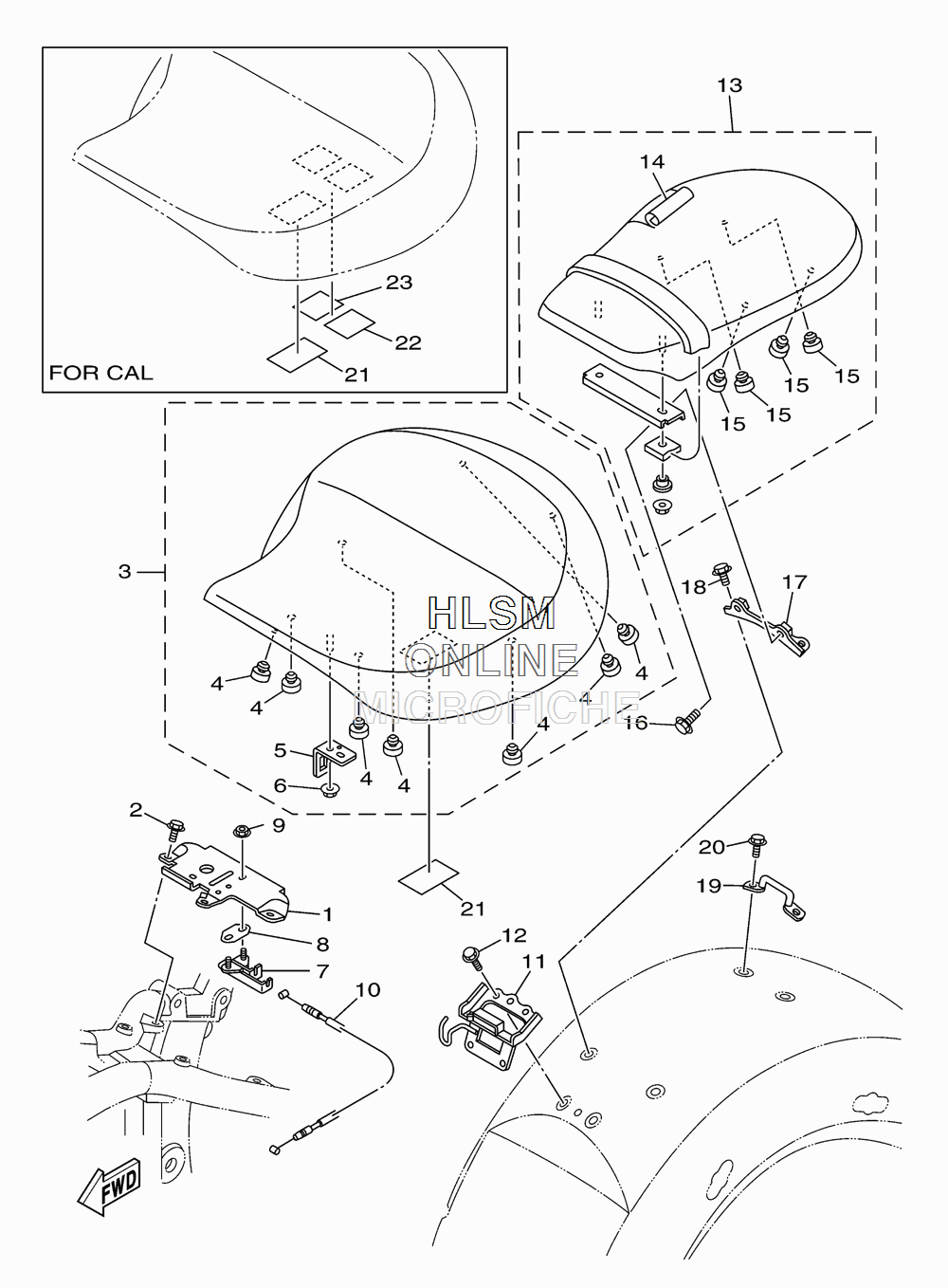

SEAT для Yamaha STRATOLINER S - 2012 года выпуска`
-
№АртикулНазвание
-
11D7-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
290105-08485-00 BOLT, FLANGEBOLT, FLANGE
-
31D7-24710-30-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
54NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
695602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
84BP-24792-00-00 PLATEPLATE
-
995702-06500-00 NUT, FLANGENUT, FLANGE
-
105PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
111D7-2475N-00-00 BRACKETBRACKET
-
1295022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
131D7-24750-20-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
141D7-2470H-20-00 ...SEAT COVER COMP., 2...SEAT COVER COMP., 2
-
1522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1695022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
171D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
191D7-2475R-00-00 BRACKET 6BRACKET 6
-
2095022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
211D7-21668-00-00 LABEL, TIRELABEL, TIRE
-
225RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
2334B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
