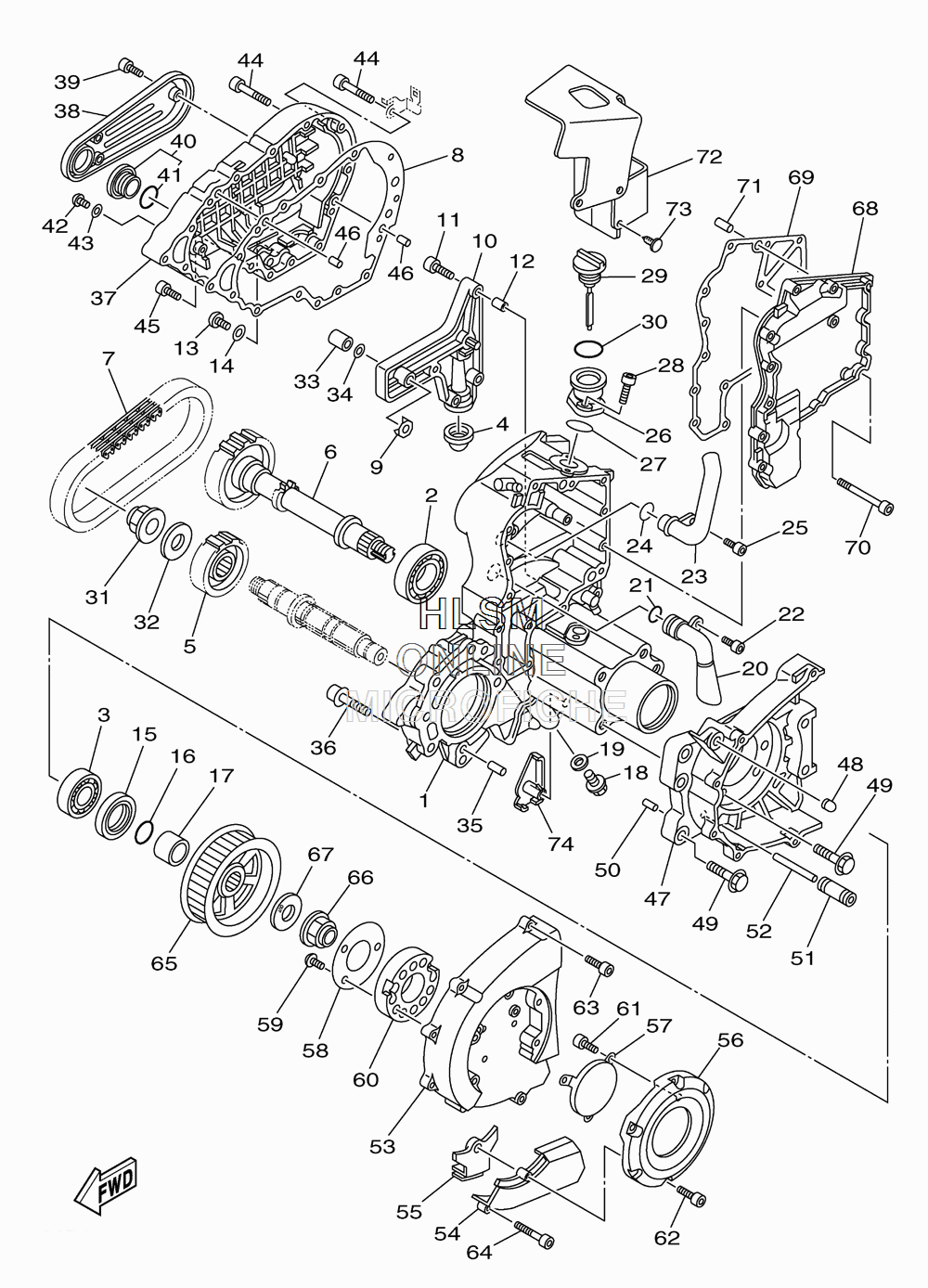

MIDDLE DRIVE GEAR для Yamaha STRATOLINER S - 2012 года выпуска
-
№АртикулНазвание
-
11D7-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
293306-20801-00 BEARINGBEARING
-
393306-28204-00 BEARINGBEARING
-
44WM-13286-00-00 CLEANERCLEANER
-
51D7-17682-00-00 SPROCKET, CHAIN DRIVESPROCKET, CHAIN DRIVE
-
61D7-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
74WM-16139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
81D7-17929-00-00 GASKET 1GASKET 1
-
91D7-17931-00-00 GASKET 2GASKET 2
-
101D7-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
1191314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1299530-08012-00 PIN, DOWELPIN, DOWEL
-
1390149-08031-00 SCREWSCREW
-
1490430-08119-00 GASKETGASKET
-
1593102-42008-00 OIL SEALOIL SEAL
-
1693210-32001-00 O-RINGO-RING
-
1790387-32005-00 COLLARCOLLAR
-
1890340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
19214-11198-01-00 GASKETGASKET
-
201D7-13421-00-00 STRAINER 2STRAINER 2
-
2193210-21631-00 O-RINGO-RING
-
2290110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
231D7-13582-00-00 PIPEPIPE
-
2493210-21631-00 O-RINGO-RING
-
2590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
261D7-13132-00-00 JOINTJOINT
-
2793210-40351-00 O-RINGO-RING
-
2890110-06179-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
295PX-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
3093210-35512-00 O-RINGO-RING
-
3190179-22016-00 NUTNUT
-
3290208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3390179-10013-00 NUTNUT
-
3490430-10004-00 GASKETGASKET
-
3599530-10114-00 PIN, DOWELPIN, DOWEL
-
3690110-10013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
371D7-15779-00-00 COVERCOVER
-
381D7-17821-00-00 COVER, HOUSINGCOVER, HOUSING
-
3990110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090340-20005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
411D7-176F4-09-00 ...O-RING...O-RING
-
4292014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390430-06016-00 GASKETGASKET
-
4491314-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4591314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4699530-08012-00 PIN, DOWELPIN, DOWEL
-
471D7-17613-00-00 STAYSTAY
-
485PX-17654-00-00 SPACER 1SPACER 1
-
4995814-12050-00 BOLT, FLANGEBOLT, FLANGE
-
5099530-08012-00 PIN, DOWELPIN, DOWEL
-
514WM-17653-00-00 SLIDERSLIDER
-
5293606-76002-00 PIN, DOWELPIN, DOWEL
-
531D7-17076-00-00 COVERCOVER
-
541D7-17662-00-00 PLATE, STAYPLATE, STAY
-
551D7-15486-00-00 GROMMETGROMMET
-
561D7-17665-00-00 PLATE 1PLATE 1
-
571D7-17675-00-00 PLATE 2PLATE 2
-
581D7-17672-00-00 PLATE, STAYPLATE, STAY
-
5990149-06082-00 SCREWSCREW
-
601D7-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
6191314-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6391314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6491314-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
651D7-17651-00-00 PULLEY, BELTPULLEY, BELT
-
6690179-22016-00 NUTNUT
-
6790208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
681D7-17538-00-00 CAP, HOUSINGCAP, HOUSING
-
691D7-17933-00-00 GASKET 4GASKET 4
-
7091312-06025-00 BOLTBOLT
-
7199530-08012-00 PIN, DOWELPIN, DOWEL
-
725C7-1763A-00-00 PLATE, CAPPLATE, CAP
-
7390269-07005-00 RIVETRIVET
-
745PX-17446-00-00 PLATEPLATE
