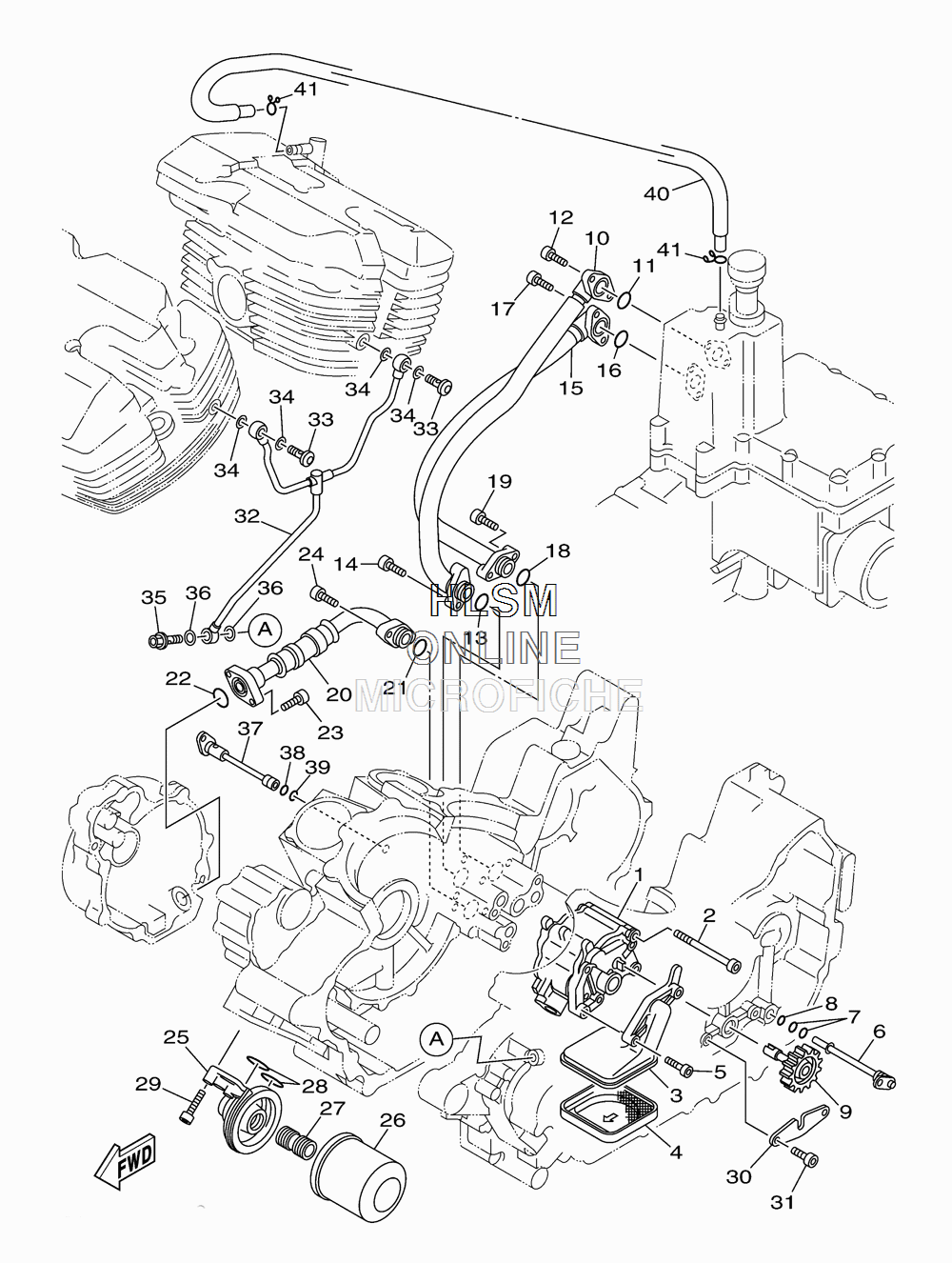

OIL PUMP для Yamaha ROAD STAR S (CALIF ONLY) - 2012 года выпуска`
-
№АртикулНазвание
-
15PX-13300-03-00 OIL PUMP ASSYOIL PUMP ASSY
-
290110-06309-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
34WM-13412-00-00 HOUSING, STRAINERHOUSING, STRAINER
-
44WM-13411-00-00 STRAINER, OILSTRAINER, OIL
-
590110-06057-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
64WM-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
793210-09350-00 O-RINGO-RING
-
893210-06667-00 O-RINGO-RING
-
95YU-13360-00-00 DRIVEN GEAR ASSYDRIVEN GEAR ASSY
-
104WM-13416-01-00 PIPE, OIL 1PIPE, OIL 1
-
1193210-16629-00 O-RINGO-RING
-
1291317-06020-00 BOLTBOLT
-
1393210-15171-00 O-RINGO-RING
-
1491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
154WM-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
1693210-16629-00 O-RINGO-RING
-
1791317-06020-00 BOLTBOLT
-
1893210-15171-00 O-RINGO-RING
-
1991314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205PX-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2193210-13657-00 O-RINGO-RING
-
2293210-16629-00 O-RINGO-RING
-
2391314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490110-06106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
255MB-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
263FV-13440-10-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2790401-20002-00 BOLT, UNIONBOLT, UNION
-
2893210-23326-00 O-RINGO-RING
-
2990110-06047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
304WM-1357N-01-00 PLATE, STOPPER 1PLATE, STOPPER 1
-
3191317-06016-00 BOLTBOLT
-
325VN-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
3390401-10175-00 BOLT, UNIONBOLT, UNION
-
3490430-10188-00 GASKETGASKET
-
3590401-08176-00 BOLT, UNIONBOLT, UNION
-
3690430-08119-00 GASKETGASKET
-
374WM-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
3893210-08003-00 O-RINGO-RING
-
3993210-07435-00 O-RINGO-RING
-
405VN-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
4190467-10008-00 CLIPCLIP
