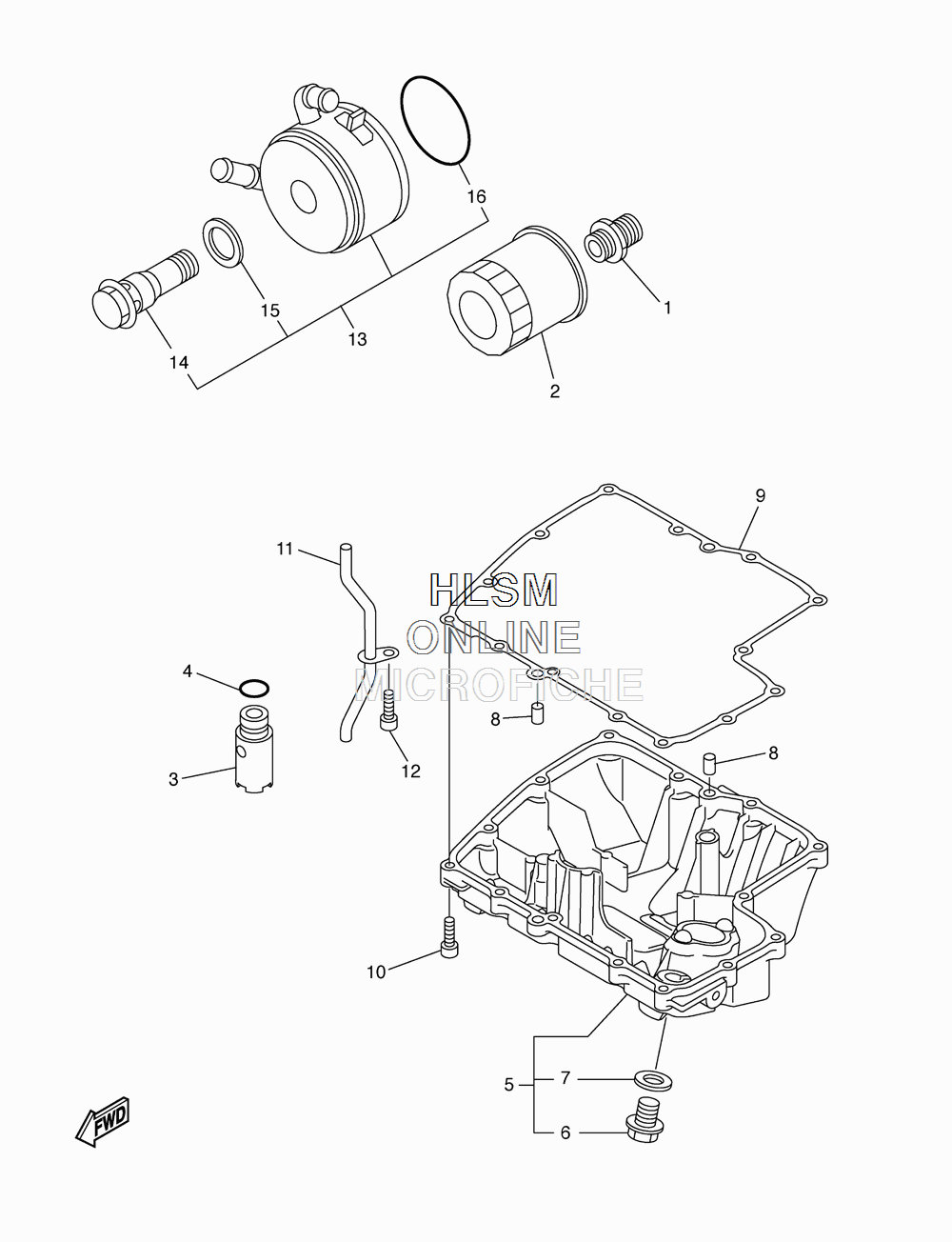

OIL CLEANER для Yamaha FZ1 - 2012 года выпуска`
-
№АртикулНазвание
-
190401-20008-00 BOLT, UNIONBOLT, UNION
-
25GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
35VY-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
493210-15566-00 O-RINGO-RING
-
52D1-13400-10-00 STRAINER COVER ASSYSTRAINER COVER ASSY
-
690340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
7214-11198-01-00 ...GASKET...GASKET
-
899530-08012-00 PIN, DOWELPIN, DOWEL
-
94C8-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1091312-06025-00 BOLT (4MY)BOLT (4MY)
-
115VY-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
1290110-06161-00 BOLT, HEXAGON SOCKET (4MY)BOLT, HEXAGON SOCKET (4MY)
-
135VY-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
145EB-12822-00-00 ...BOLT, UNION...BOLT, UNION
-
155EB-13475-00-00 ...GASKET...GASKET
-
165JW-13473-00-00 ...O-RING...O-RING
