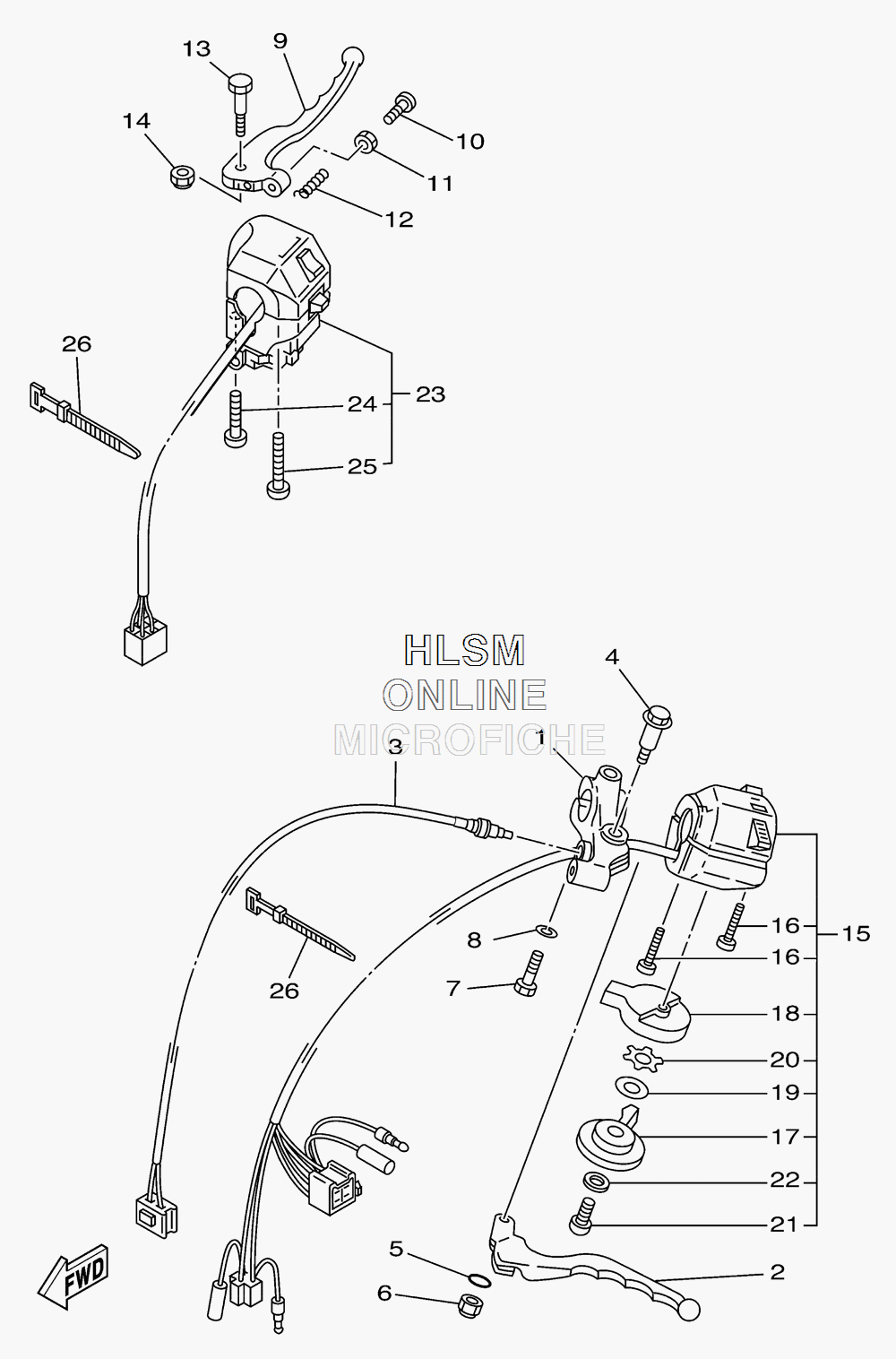

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 250 - 2011 года выпуска`
-
№АртикулНазвание
-
142X-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22GV-83912-00-00 LEVER 1LEVER 1
-
32UJ-82917-00-00 SWITCHSWITCH
-
490109-06799-00 BOLTBOLT
-
593210-11368-00 O-RINGO-RING
-
695607-06100-00 NUT, UNUT, U
-
797007-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
92W1-83922-00-00 LEVER 2LEVER 2
-
1090149-06131-00 SCREWSCREW
-
1190170-06010-00 NUTNUT
-
1290501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390109-06577-00 BOLTBOLT
-
1495607-06100-00 NUT, UNUT, U
-
152UJ-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1698507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1710M-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
1810M-83942-00-00 ...COVER, STARTER...COVER, STARTER
-
191AA-8397X-00-00 ...SPACER...SPACER
-
2090209-10131-00 ...WASHER...WASHER
-
2198507-06008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2292901-06200-00 ...WASHER...WASHER
-
231VE-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2498506-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2598506-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
26437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
