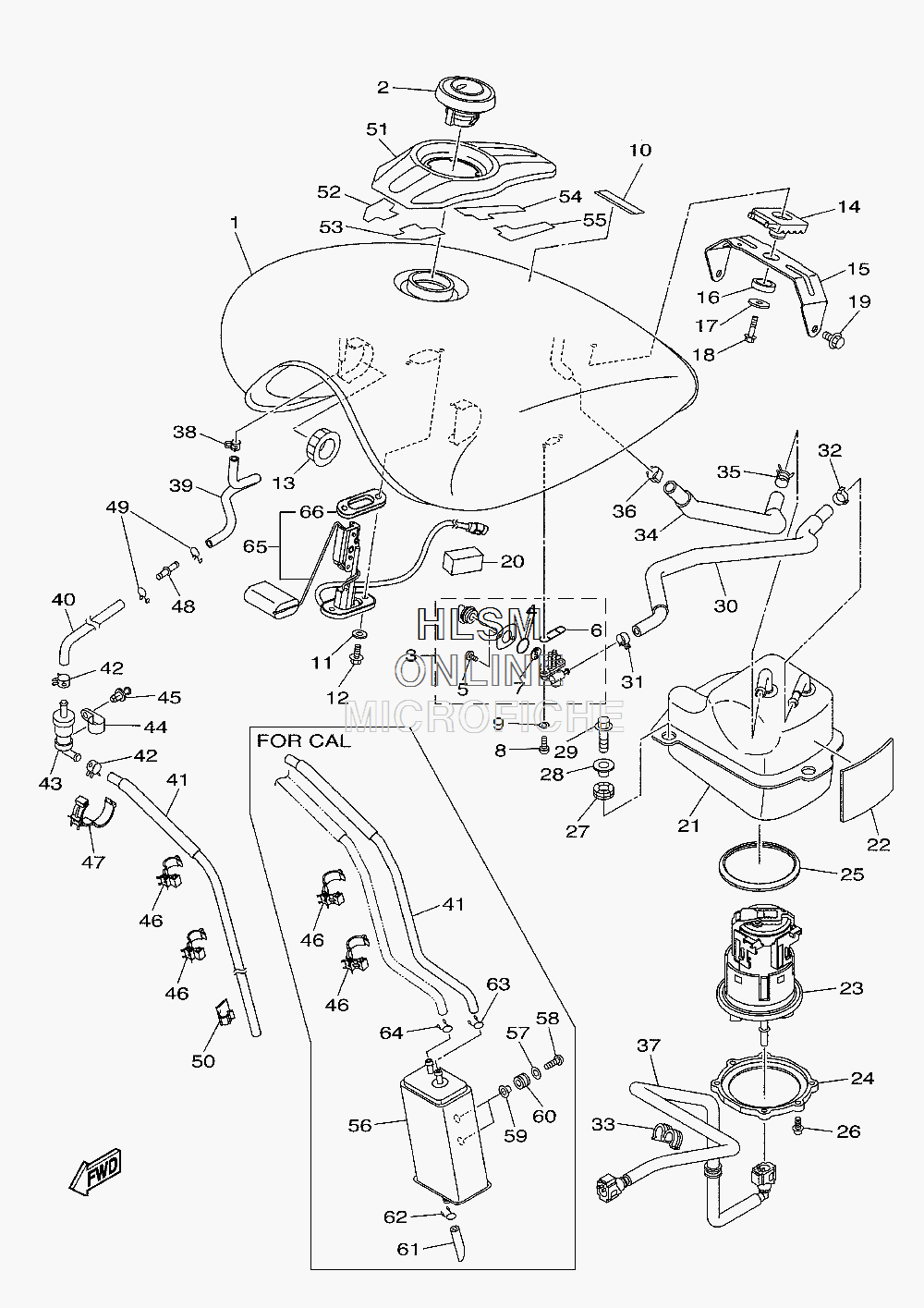

FUEL TANK для Yamaha STRYKER (PURPLISH BLUE/ YELLOWISH RED) - 2011 года выпуска

№

Артикул

Название
1

27D-Y2410-00-01 FUEL TANK COMP. (VPBC5)

FUEL TANK COMP. (VPBC5)
1

27D-Y2410-00-03 FUEL TANK COMP. (DYRC4)

FUEL TANK COMP. (DYRC4)
2

4NK-24602-12-00 CAP ASSY

CAP ASSY
3

4JT-24500-10-00 FUEL COCK ASSY 1

FUEL COCK ASSY 1
4

3AJ-24534-01-00 ...SEAL, COCK

...SEAL, COCK
5

98502-03008-00 ...SCREW, PAN HEAD

...SCREW, PAN HEAD
6

4X8-24512-00-00 ...O-RING

...O-RING
7

3AC-24523-00-00 ...VALVE PACKING

...VALVE PACKING
8

90149-06108-00 SCREW

SCREW
9

90202-05193-00 WASHER, PLATE

WASHER, PLATE
10

5GK-2118K-00-00 LABEL, CAUTION

LABEL, CAUTION
11

90202-05193-00 WASHER, PLATE

WASHER, PLATE
12

95812-06016-00 BOLT, FLANGE

BOLT, FLANGE
13

2YK-24181-10-00 DAMPER, LOCATING 1

DAMPER, LOCATING 1
14

1D7-24182-00-00 DAMPER, LOCATING 2

DAMPER, LOCATING 2
15

27D-2413Y-00-00 BRACKET, TANK FITTING

BRACKET, TANK FITTING
16

4TR-24183-00-00 DAMPER, LOCATING 3

DAMPER, LOCATING 3
17

90387-06177-00 COLLAR

COLLAR
18

95812-06030-00 BOLT, FLANGE

BOLT, FLANGE
19

95827-08012-00 BOLT, FLANGE

BOLT, FLANGE
20

2YK-21747-00-00 DAMPER

DAMPER
21

3D8-244A0-00-00 PUMP CASE COMP.

PUMP CASE COMP.
22

3D8-2414J-00-00 DAMPER, PLATE 2

DAMPER, PLATE 2
23

3D8-13907-01-00 FUEL PUMP COMP.

FUEL PUMP COMP.
24

3D8-24491-10-00 BRACKET, FUEL PUMP

BRACKET, FUEL PUMP
25

5JW-24486-00-00 O-RING

O-RING
26

90110-05028-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD
27

3D8-24185-00-00 DAMPER, LOCATING 5

DAMPER, LOCATING 5
28

90387-062U9-00 COLLAR

COLLAR
29

95812-06025-00 BOLT, FLANGE

BOLT, FLANGE
30

27D-24311-00-00 PIPE, FUEL 1

PIPE, FUEL 1
31

90467-12004-00 CLIP

CLIP
32

90467-130A1-00 CLIP

CLIP
33

90464-19001-00 CLAMP

CLAMP
34

27D-24312-00-00 PIPE 2

PIPE 2
35

90467-160A2-00 CLIP

CLIP
36

5PX-2411M-00-00 CLIP

CLIP
37

3D8-13971-00-00 PIPE, FUEL 1

PIPE, FUEL 1
38

90467-090A5-00 CLIP

CLIP
39

27D-24324-00-00 PIPE 13

PIPE 13
40

27D-24325-00-00 PIPE 14

PIPE 14
41

27D-2486A-00-00 PIPE 1 (CALIF. ONLY)

PIPE 1 (CALIF. ONLY)
41

27D-2486G-00-00 PIPE 3

PIPE 3
42

90467-09001-00 CLIP

CLIP
43

5RB-24180-00-00 ROLL OVER VALVE ASSY

ROLL OVER VALVE ASSY
44

90461-15139-00 CLAMP

CLAMP
45

90269-05005-00 RIVET

RIVET
46

90464-20191-00 CLAMP

CLAMP
46

90464-15192-00 CLAMP (CALIF. ONLY)

CLAMP (CALIF. ONLY)
47

90464-30252-00 CLAMP

CLAMP
48

4XY-14568-00-00 JOINT

JOINT
49

90467-09103-00 CLIP

CLIP
50

90464-10012-00 CLAMP

CLAMP
51

27D-241B1-00-00 COVER, TANK

COVER, TANK
52

27D-241A7-00-00 SEAL 7

SEAL 7
53

27D-24329-00-00 SEAL

SEAL
54

27D-241A8-00-00 SEAL 8

SEAL 8
55

27D-2414E-00-00 SEAL 2

SEAL 2
56

5PX-24170-00-00 CANISTER ASSY (CALIF. ONLY)

CANISTER ASSY (CALIF. ONLY)
57

90201-06023-00 WASHER, PLATE (CALIF. ONLY)

WASHER, PLATE (CALIF. ONLY)
58

90111-06067-00 BOLT, HEX. SOCKET BUTTON (CALIF. ONLY)

BOLT, HEX. SOCKET BUTTON (CALIF. ONLY)
59

90387-062L2-00 COLLAR (CALIF. ONLY)

COLLAR (CALIF. ONLY)
60

90480-13163-00 GROMMET (CALIF. ONLY)

GROMMET (CALIF. ONLY)
61

27D-24322-00-00 PIPE 11 (CALIF. ONLY)

PIPE 11 (CALIF. ONLY)
62

90467-10041-00 CLIP (CALIF. ONLY)

CLIP (CALIF. ONLY)
63

90467-09103-00 CLIP (CALIF. ONLY)

CLIP (CALIF. ONLY)
64

90467-09103-00 CLIP (CALIF. ONLY)

CLIP (CALIF. ONLY)
65

27D-85752-00-00 SENDER UNIT ASSY, FUEL METER

SENDER UNIT ASSY, FUEL METER
66

4WM-85753-00-00 ...GASKET, SENDER UNIT

...GASKET, SENDER UNIT
