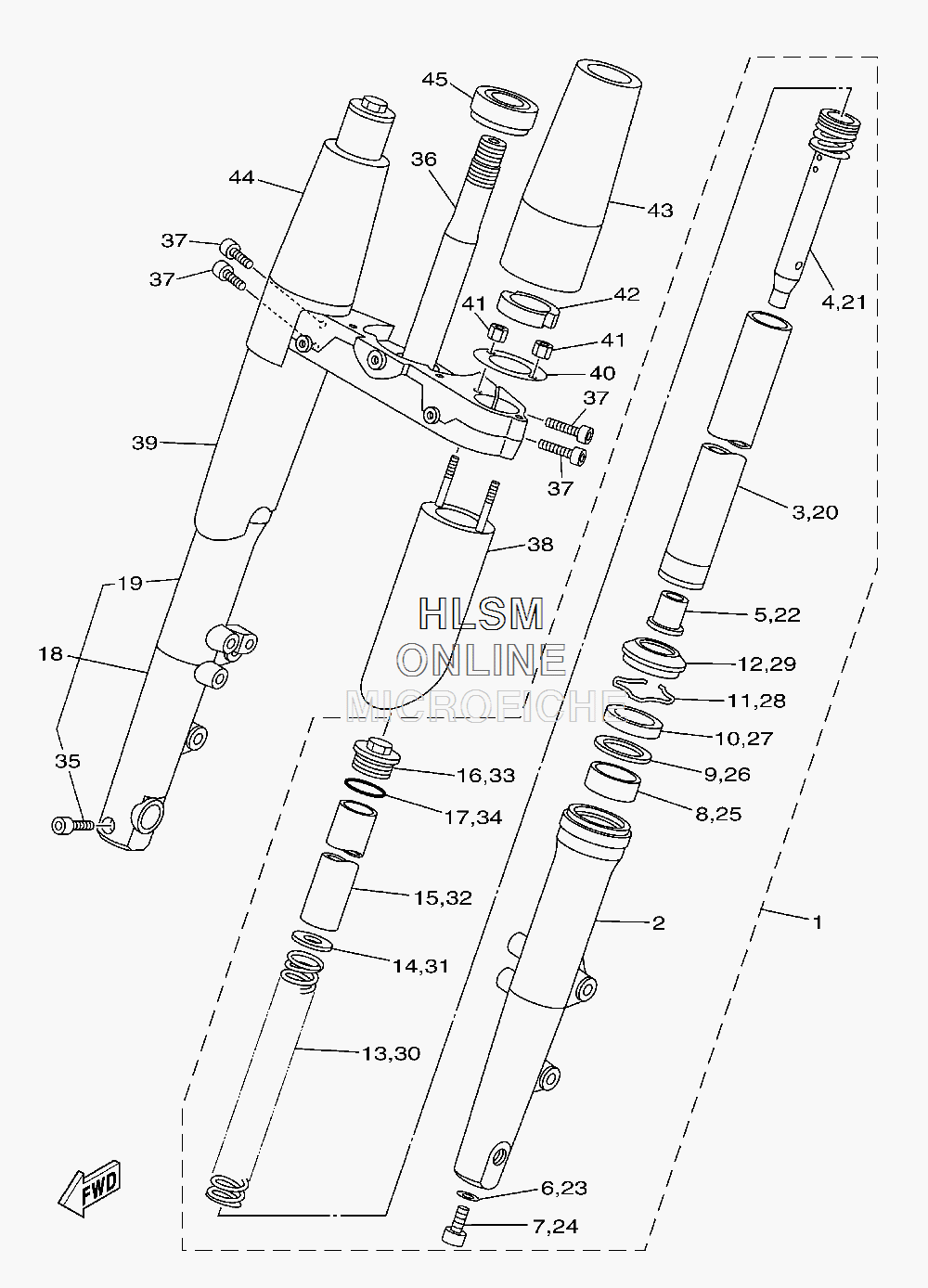

SUSPENSION - FRONT FORK для Yamaha STRATOLINER DELUXE - 2011 года выпуска
-
№АртикулНазвание
-
11D7-23102-20-00 FRONT FORK ASSY (L.H) (SMX)FRONT FORK ASSY (L.H) (SMX)
-
21D7-23126-20-00 ...TUBE, OUTER (LEFT) (SMX)...TUBE, OUTER (LEFT) (SMX)
-
31D7-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
41D7-23170-00-00 ...CYLINDER COMP, FRONT FORK...CYLINDER COMP, FRONT FORK
-
51D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
62K8-23158-L0-00 ...GASKET...GASKET
-
73R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
85TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
101D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
114SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
121D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
131D7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
141D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
151D7-23118-00-00 ...SPACER...SPACER
-
161D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
171D7-23188-00-00 ...O-RING...O-RING
-
181D7-23103-20-00 FRONT FORK ASSY (R.H) (SMX)FRONT FORK ASSY (R.H) (SMX)
-
191D7-23136-20-00 ...TUBE, OUTER (RIGHT) (SMX)...TUBE, OUTER (RIGHT) (SMX)
-
201D7-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
211D7-23170-00-00 ...CYLINDER COMP, FRONT FORK...CYLINDER COMP, FRONT FORK
-
221D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
232K8-23158-L0-00 ...GASKET...GASKET
-
243R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
255TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
264SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
271D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
284SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
291D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
301D7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
311D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
321D7-23118-00-00 ...SPACER...SPACER
-
331D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
341D7-23188-00-00 ...O-RING...O-RING
-
3591314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
361D7-23400-00-00 STEERING ASSYSTEERING ASSY
-
3791314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
381D7-23123-30-00 COVER, UNDER 1 (SMX)COVER, UNDER 1 (SMX)
-
391D7-23133-30-00 COVER, UNDER 2 (SMX)COVER, UNDER 2 (SMX)
-
401D7-23165-00-00 WASHER, FELTWASHER, FELT
-
411D7-23357-00-00 NUTNUT
-
421D7-23163-00-00 GASKETGASKET
-
431D7-23121-30-00 COVER, UPPER 1 (SMX)COVER, UPPER 1 (SMX)
-
441D7-23131-30-00 COVER, UPPER 2 (SMX)COVER, UPPER 2 (SMX)
-
4593332-00096-00 BEARINGBEARING
