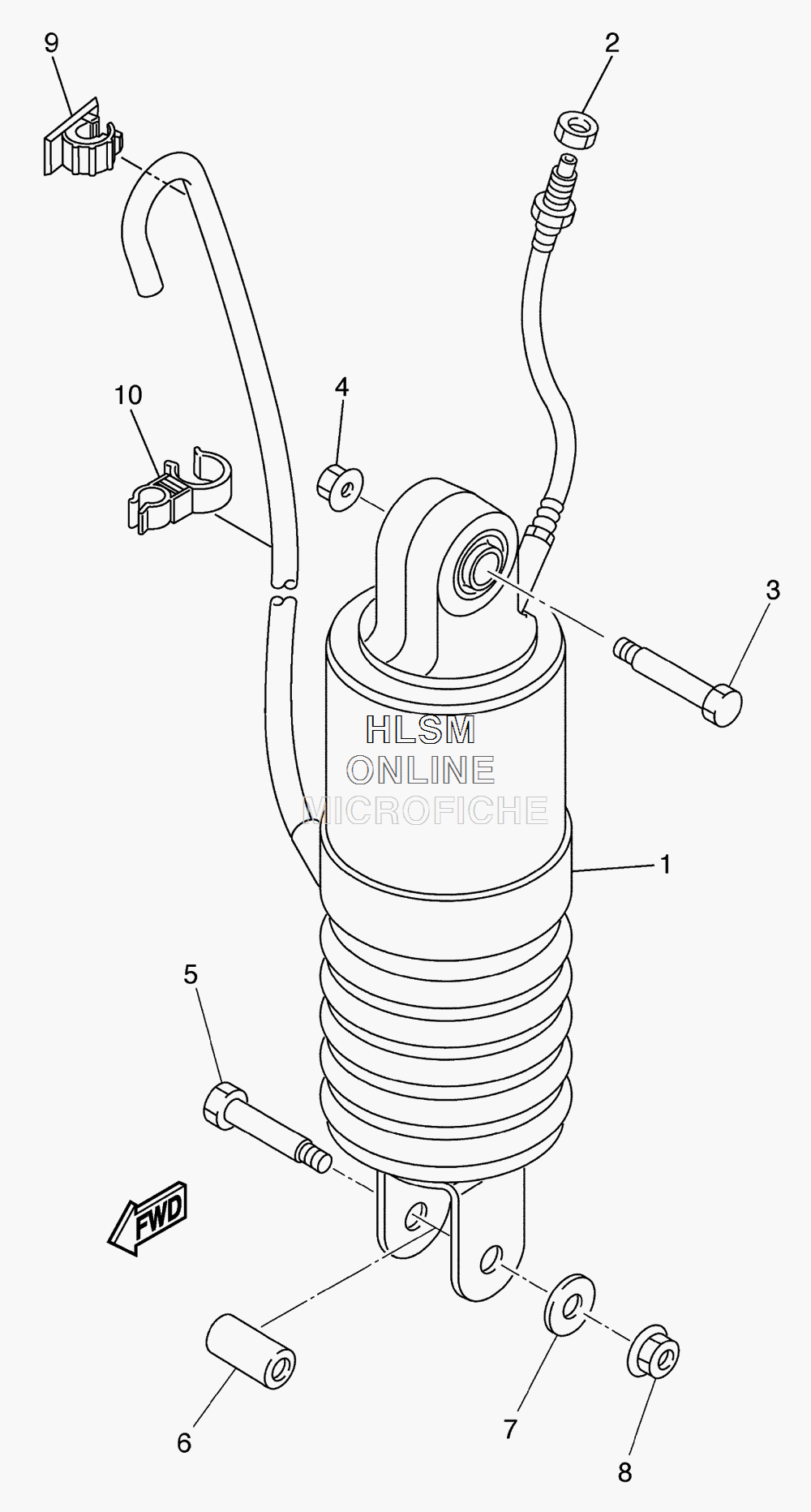

SUSPENSION - REAR SHOCK ABSORBER для Yamaha ROYAL STAR VENTURE S - 2011 года выпуска`
-
№АртикулНазвание
-
14XY-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290170-14350-00 NUTNUT
-
390101-12033-00 BOLTBOLT
-
495602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590101-12033-00 BOLTBOLT
-
690387-126W4-00 COLLARCOLLAR
-
790201-12045-00 WASHER, PLATEWASHER, PLATE
-
895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990464-13005-00 CLAMPCLAMP
-
1090464-12008-00 CLAMPCLAMP
