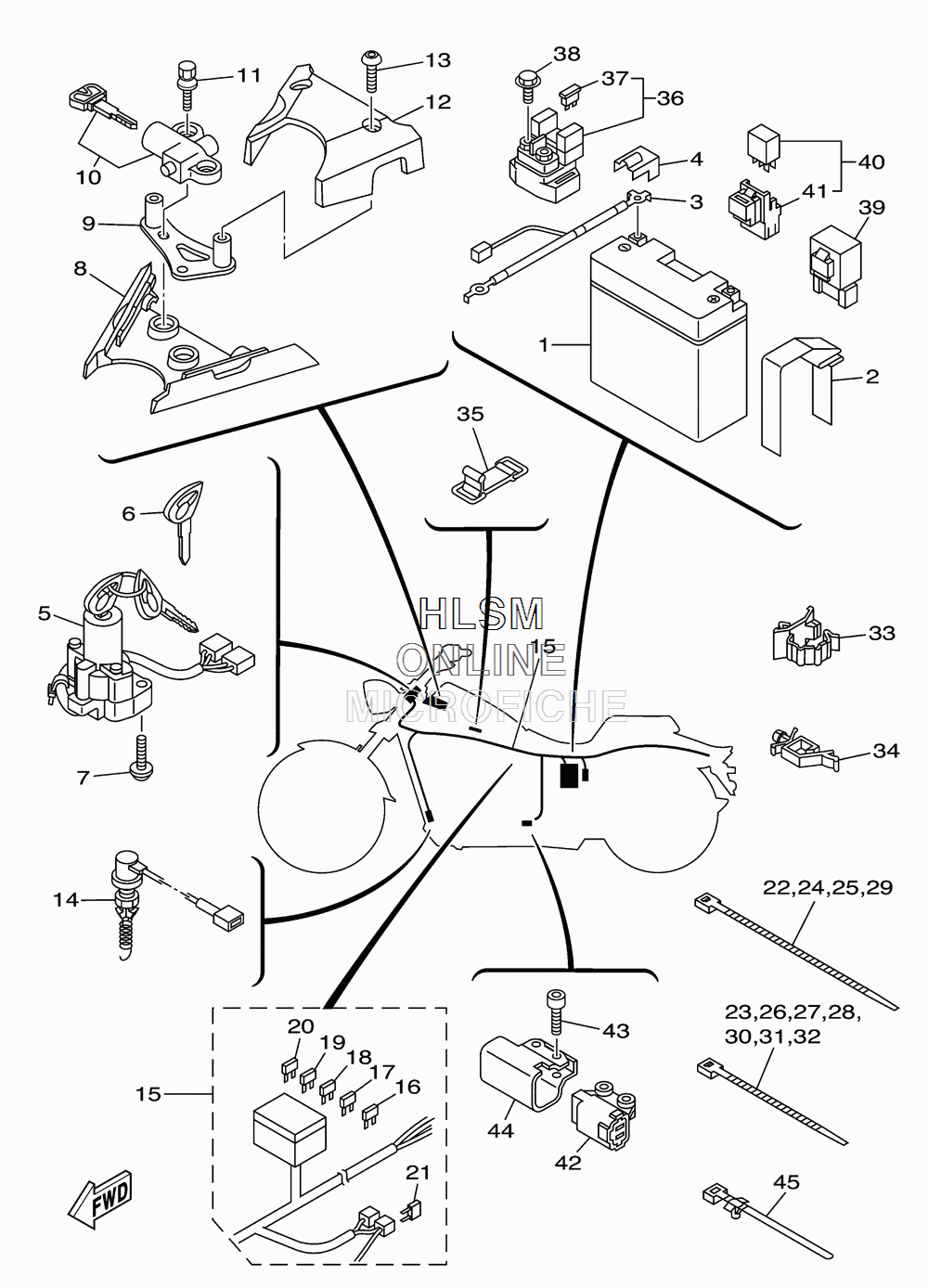

ELECTRICAL 2 для Yamaha RAIDER S - 2011 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
24AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
31D7-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
41D7-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
55C7-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
65PX-82511-09-00 BLANK KEYBLANK KEY
-
790111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
85C7-8252U-00-00 COVERCOVER
-
95C7-21158-00-00 BRACKETBRACKET
-
105C7-W2348-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
1190109-080G5-00 BOLTBOLT
-
125C7-2848Y-00-00 COVER, LOCKCOVER, LOCK
-
1390111-06003-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
145C7-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
155C7-82590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
175JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
205JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
215JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
223MA-82591-00-00 BANDBAND
-
231UA-82591-00-00 BANDBAND
-
243MA-82591-00-00 BANDBAND
-
253MA-82591-00-00 BANDBAND
-
261UA-82591-00-00 BANDBAND
-
271UA-82591-00-00 BANDBAND
-
281UA-82591-00-00 BANDBAND
-
293MA-82591-00-00 BANDBAND
-
301UA-82591-00-00 BANDBAND
-
311UA-82591-00-00 BANDBAND
-
321UA-82591-00-00 BANDBAND
-
3390464-20002-00 CLAMPCLAMP
-
3490464-16021-00 CLAMPCLAMP
-
351KH-82131-00-00 BAND, BATTERYBAND, BATTERY
-
365JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3736Y-82151-00-00 FUSE (15A-BL)FUSE (15A-BL)
-
3895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
395VK-81950-30-00 RELAY ASSYRELAY ASSY
-
405EA-81950-20-00 RELAY ASSYRELAY ASSY
-
415EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
425VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4390110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
445C7-82388-00-00 PLATEPLATE
-
4590464-34002-00 CLAMPCLAMP
