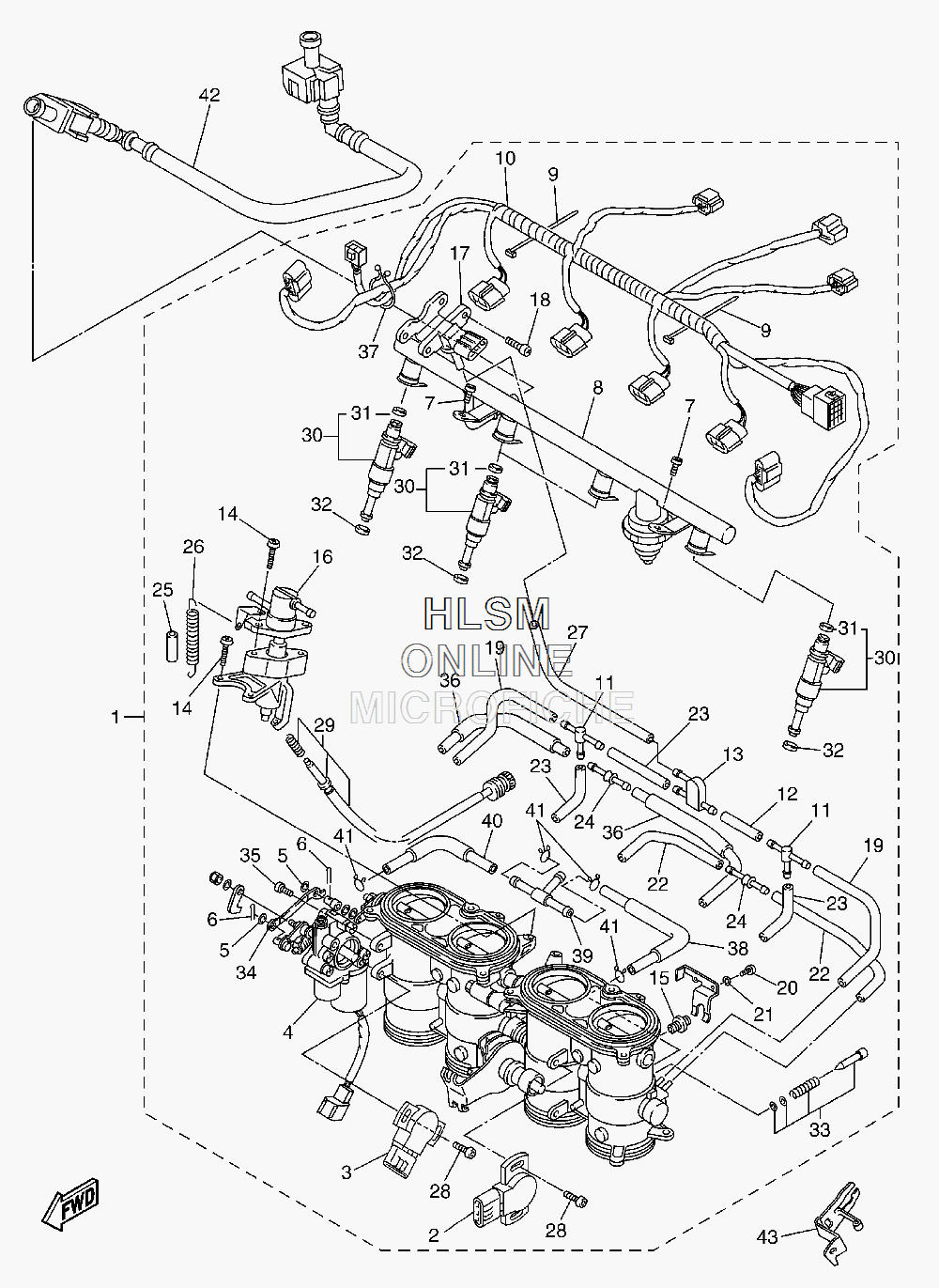

AIR CLEANER W/ INTAKE для Yamaha FZ1 - 2011 года выпуска`
-
№АртикулНазвание
-
12D1-13750-20-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
13C3-13750-10-00 THROTTLE BODY ASSY (CALIF. ONLY)THROTTLE BODY ASSY (CALIF. ONLY)
-
22D1-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
35FL-85885-10-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
45VY-85850-00-00 ...GEARED MOTOR COMP. (CALIF. ONLY)...GEARED MOTOR COMP. (CALIF. ONLY)
-
42D1-85870-00-00 ...GEARED MOTOR COMP. 2 (EXCEPT CALIF.)...GEARED MOTOR COMP. 2 (EXCEPT CALIF.)
-
522U-14952-00-00 ...WASHER...WASHER
-
691492-12010-00 ...PIN, COTTER...PIN, COTTER
-
798502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
82D1-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
94KM-14137-00-00 ...CLIP...CLIP
-
102D1-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
1168V-24376-00-00 ...PIPE, JOINT (T - FITTING)...PIPE, JOINT (T - FITTING)
-
125JW-14396-00-00 ...PIPE...PIPE
-
133XV-14251-00-00 ...NIPPLE...NIPPLE
-
1498502-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155VY-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
165VY-14204-00-00 ...CASE, STARTER...CASE, STARTER
-
171C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1892502-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
195FL-14349-10-00 ...PIPE...PIPE
-
2098507-03016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2192990-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
225PW-14349-00-00 ...PIPE...PIPE
-
235PS-14987-00-00 ...HOSE...HOSE
-
245PW-14251-00-00 ...NIPPLE...NIPPLE
-
255DM-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
265JW-14589-00-00 ...SPRING...SPRING
-
275SL-14349-00-00 ...PIPE...PIPE
-
288CC-14216-10-00 ...SCREW...SCREW
-
295PW-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
305VY-13761-00-00 ...INJECTOR...INJECTOR
-
315PS-14147-00-00 ......O-RING......O-RING
-
328FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
335JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
345VY-14905-00-00 ...LEVER, STARTER...LEVER, STARTER
-
3598507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
365VY-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
3790464-30040-00 ...CLAMP...CLAMP
-
385VY-14465-01-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
3990413-08012-00 ...WAY .3 (CALIF ONLY)...WAY .3 (CALIF ONLY)
-
405VY-14466-01-00 ...PIPE (CALIF. ONLY)...PIPE (CALIF. ONLY)
-
4190467-09006-00 ...CLIP (CALIF. ONLY)...CLIP (CALIF. ONLY)
-
422D1-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
432D1-14413-01-00 STAYSTAY
