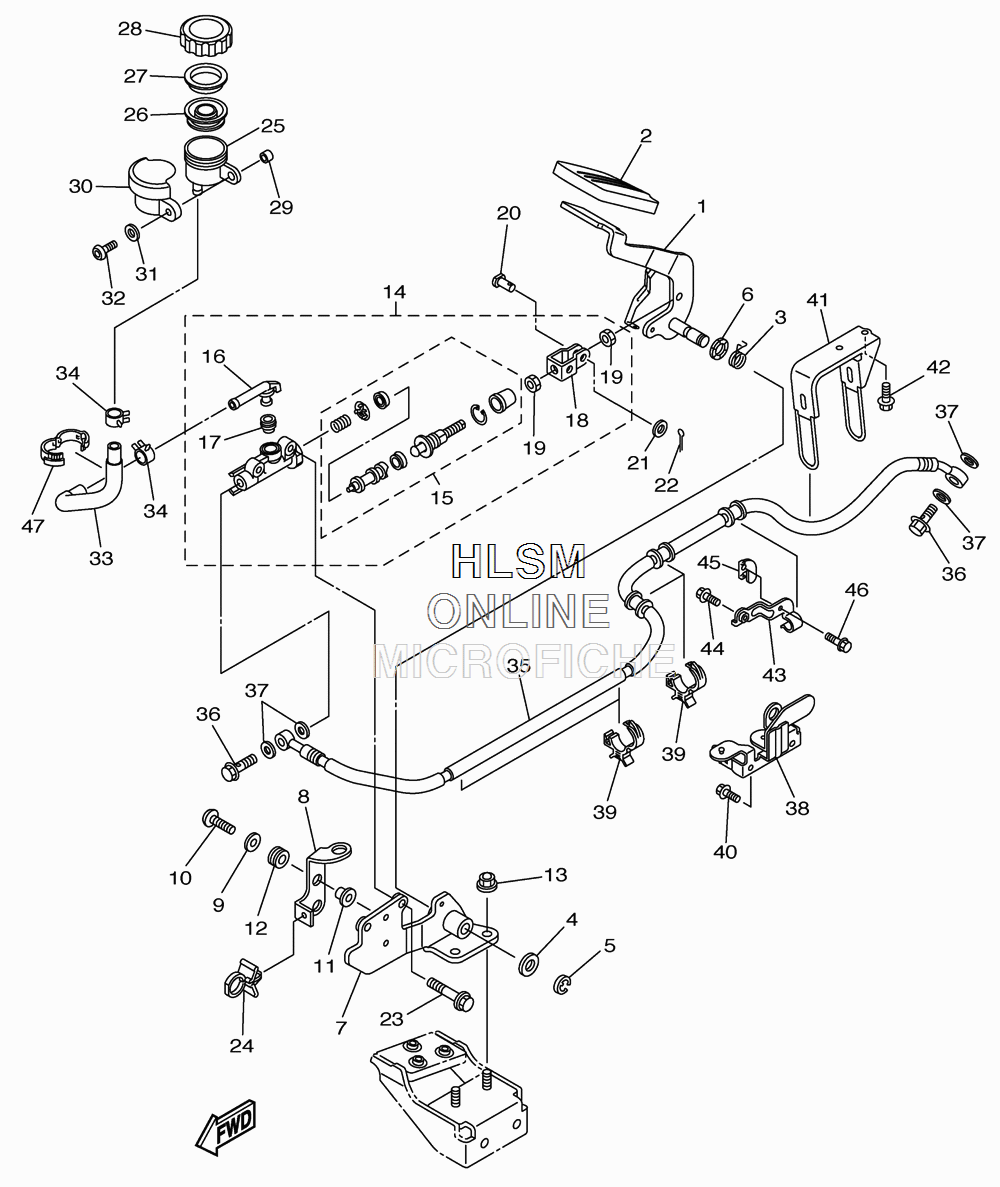

BRAKE - REAR MASTER CYLINDER для Yamaha V STAR 950 - 2010 года выпуска`
-
№АртикулНазвание
-
15S7-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
21D7-27285-00-00 CAPCAP
-
35S7-27216-00-00 SPRING, RETURNSPRING, RETURN
-
490201-12688-00 WASHER, PLATEWASHER, PLATE
-
599009-12400-00 CIRCLIPCIRCLIP
-
690206-12074-00 WASHER, WAVEWASHER, WAVE
-
75S7-27432-00-00 BRACKET 1BRACKET 1
-
85S7-21441-00-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
990201-06023-00 WASHER, PLATEWASHER, PLATE
-
1090111-06019-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1190387-06237-00 COLLARCOLLAR
-
1290480-13163-00 GROMMETGROMMET
-
1390176-08009-00 NUT, CROWNNUT, CROWN
-
144BP-2583V-01-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
154BP-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
164BP-2582A-00-00 JOINTJOINT
-
174BP-2585F-00-00 BUSHBUSH
-
184BP-27222-02-00 JOINTJOINT
-
1990170-08010-00 NUTNUT
-
2090240-08124-00 PIN, CLEVISPIN, CLEVIS
-
2190201-08083-00 WASHER, PLATEWASHER, PLATE
-
2291401-20012-00 PIN, COTTERPIN, COTTER
-
2395817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2490464-12001-00 CLAMPCLAMP
-
2531A-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
26360-25854-01-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
272GU-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
282KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2990387-06072-00 COLLARCOLLAR
-
304NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3190201-06025-00 WASHER, PLATEWASHER, PLATE
-
3292014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
335S7-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
3490467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
355S7-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
3690401-10020-00 BOLT, UNIONBOLT, UNION
-
3790430-10005-00 GASKETGASKET
-
385S7-21374-00-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3990464-15192-00 CLAMPCLAMP
-
4095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
415S7-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
435S7-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
4490105-06126-00 BOLT, FLANGEBOLT, FLANGE
-
453D8-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4695022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4790464-16001-00 CLAMPCLAMP
