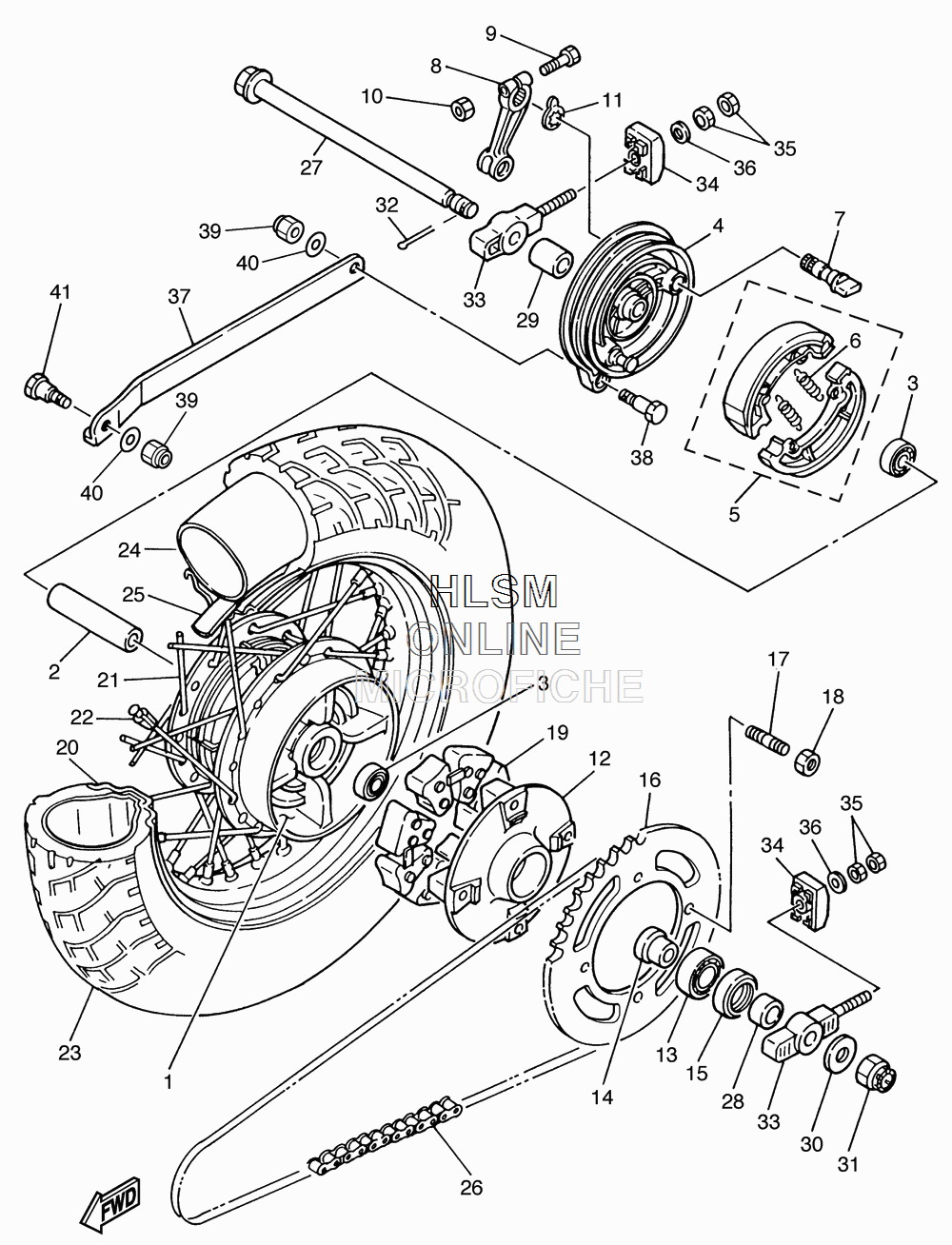

WHEEL - REAR для Yamaha V STAR 250 - 2010 года выпуска`
-
№АртикулНазвание
-
12UJ-25311-10-00 HUB, REARHUB, REAR
-
22UJ-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-20212-00 BEARINGBEARING
-
42RH-25321-10-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
53LS-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
690506-15260-00 SPRING, TENSIONSPRING, TENSION
-
72RH-25351-00-00 CAMSHAFTCAMSHAFT
-
85H0-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
990101-06765-00 BOLTBOLT
-
1095304-06600-00 NUTNUT
-
113Y6-2533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
125Y1-25366-10-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-30437-00 BEARINGBEARING
-
142UJ-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1593106-30029-00 OIL SEALOIL SEAL
-
164DN-25445-30-00 SPROCKET, DRIVEN (45T)SPROCKET, DRIVEN (45T)
-
1790116-10485-00 BOLT, STUDBOLT, STUD
-
1895604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
195Y1-25364-00-00 DAMPERDAMPER
-
2094427-15600-00 RIM (MT2.75-15 M/C)RIM (MT2.75-15 M/C)
-
212UJ-25304-02-00 SPOKE SET, REARSPOKE SET, REAR
-
223HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
2394113-151W8-00 TIRE (130/90-15 M/C 66P C-915)TIRE (130/90-15 M/C 66P C-915)
-
2494213-15259-00 TUBE (130/90-15 TR4)TUBE (130/90-15 TR4)
-
2594313-15151-00 BAND, RIM (3.00-15)BAND, RIM (3.00-15)
-
2694581-11114-00 CHAIN (DID520DS-114LE)CHAIN (DID520DS-114LE)
-
272UJ-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2890387-15004-00 COLLARCOLLAR
-
2990387-153U1-00 COLLARCOLLAR
-
3092903-14200-00 WASHERWASHER
-
3190171-14056-00 NUT, CASTLENUT, CASTLE
-
3291401-30030-00 PIN, COTTERPIN, COTTER
-
332UJ-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
3455K-2539F-00-00 PLATE 1PLATE 1
-
3595304-08600-00 NUTNUT
-
3692903-08600-00 WASHER, PLATEWASHER, PLATE
-
372UJ-25371-00-00 BAR, TENSIONBAR, TENSION
-
3890109-08005-00 BOLTBOLT
-
3995607-08100-00 NUT, UNUT, U
-
4092907-08600-00 WASHER, PLATEWASHER, PLATE
-
4190109-08003-00 BOLTBOLT
