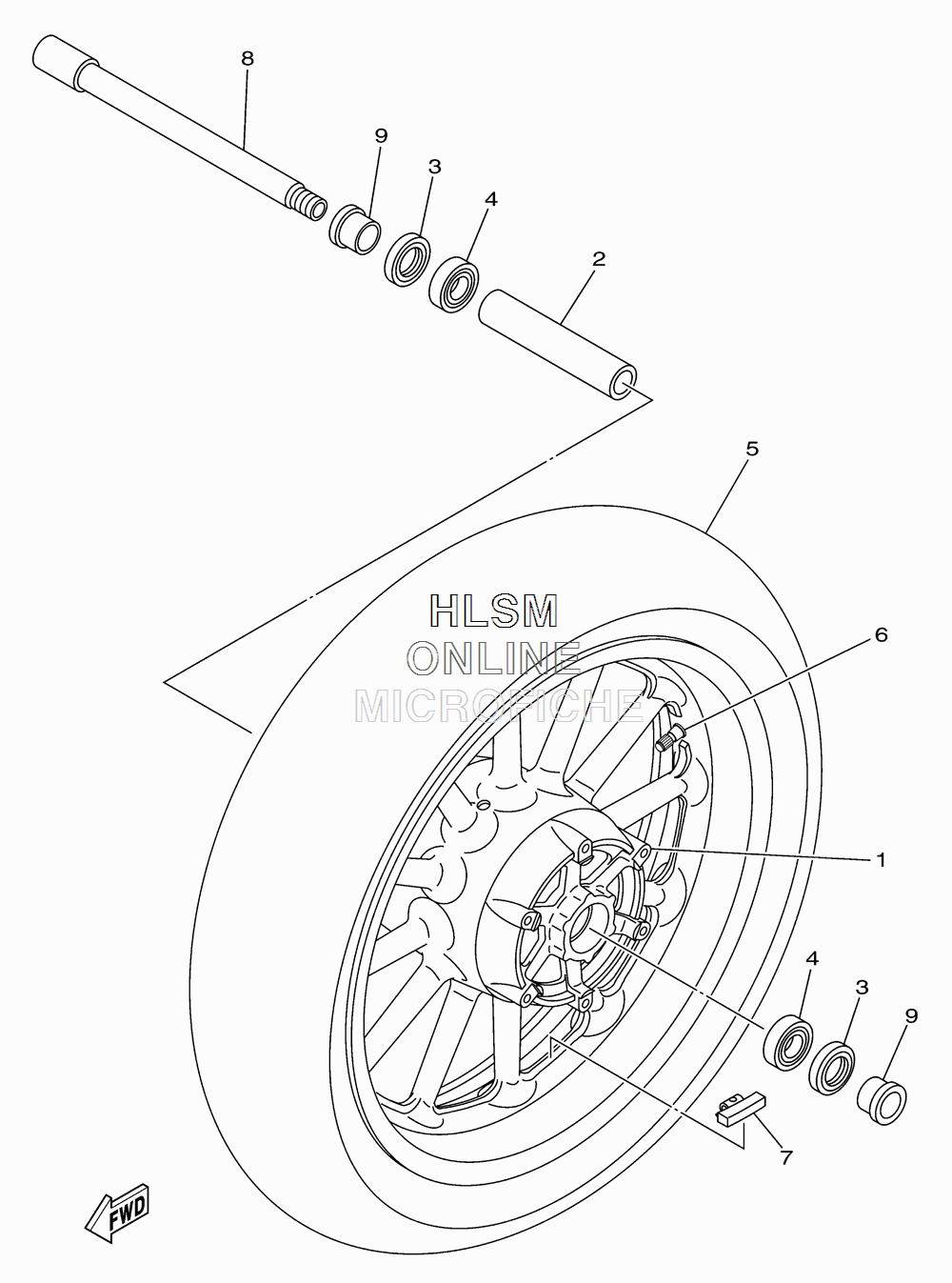

WHEEL - FRONT для Yamaha STRATOLINER S - 2010 года выпуска`
-
№АртикулНазвание
-
11D7-25168-01-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
290387-2208J-00 COLLARCOLLAR
-
393106-28043-00 OIL SEALOIL SEAL
-
493306-00420-00 BEARINGBEARING
-
594113-18019-00 TIRE (130/70R18M/C 63H) UR BRIDGESTONETIRE (130/70R18M/C 63H) UR BRIDGESTONE
-
594113-18020-00 TIRE (130/70R18M/C 63H D251F) UR DUNLOPTIRE (130/70R18M/C 63H D251F) UR DUNLOP
-
693900-00030-00 VALVE, RIM (TR412) TAIHEIYOVALVE, RIM (TR412) TAIHEIYO
-
75MT-25398-00-00 BALANCER, WHEEL (10G) UNBALANCER, WHEEL (10G) UN
-
75MT-25398-10-00 BALANCER, WHEEL (20G) UNBALANCER, WHEEL (20G) UN
-
75MT-25398-20-00 BALANCER, WHEEL (30G) UNBALANCER, WHEEL (30G) UN
-
81D7-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
990387-2200T-00 COLLARCOLLAR
