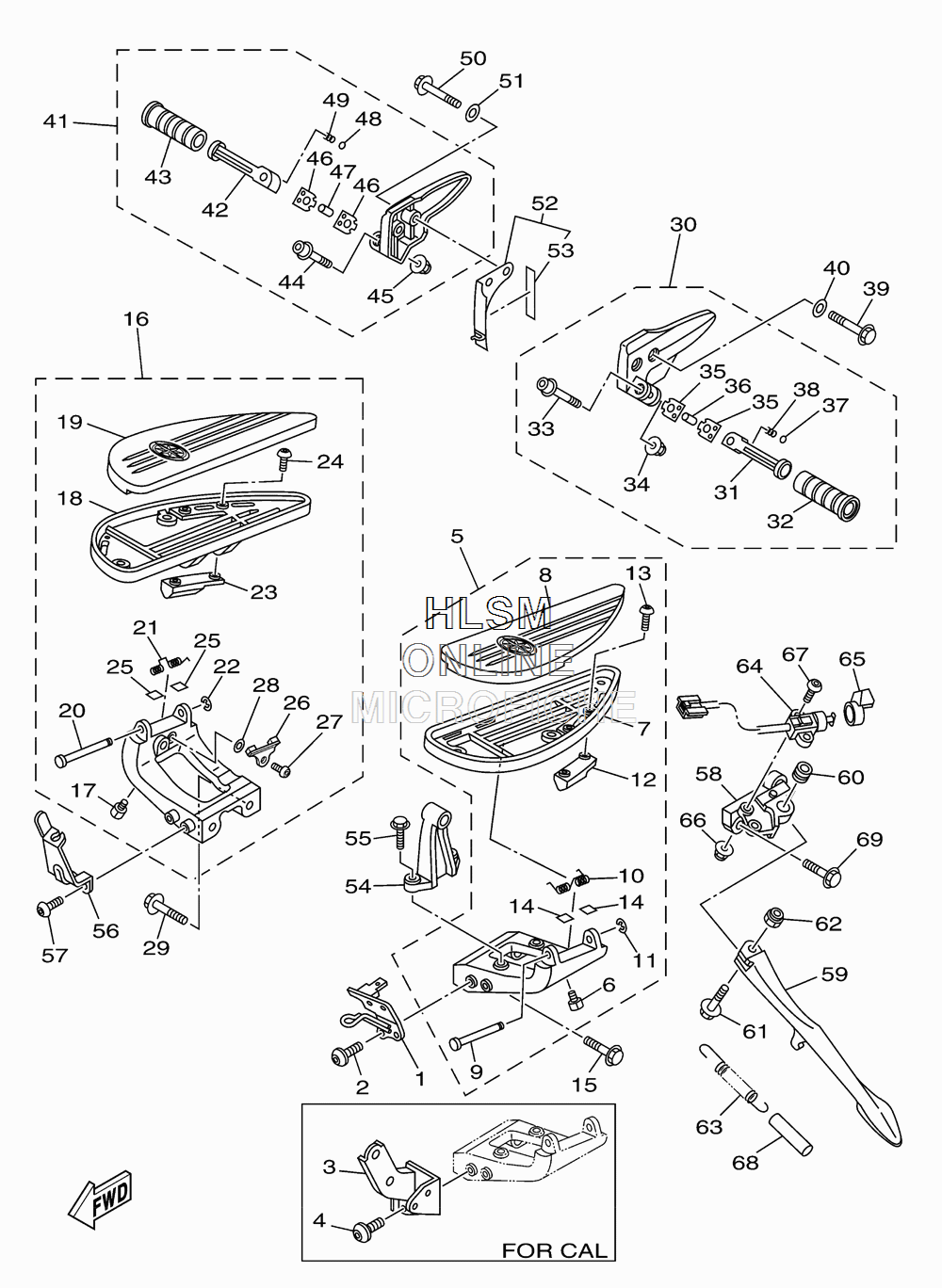

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha STRATOLINER DELUXE - 2010 года выпуска
-
№АртикулНазвание
-
11D7-2134L-00-00 BRACKET, HORN 2 (NOT FOR CALIFORNIA)BRACKET, HORN 2 (NOT FOR CALIFORNIA)
-
290111-06038-00 BOLT, HEX. SOCKET BUTTON (NOT FOR CALIFORNIA)BOLT, HEX. SOCKET BUTTON (NOT FOR CALIFORNIA)
-
31D7-2742L-00-00 BRACKET 5 (CALIFORNIA)BRACKET 5 (CALIFORNIA)
-
490111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
51D7-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
61D7-27435-00-00 BOLTBOLT
-
71D7-27451-00-00 FOOTRESTFOOTREST
-
81D7-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
91D7-27427-00-00 SHAFTSHAFT
-
101D7-27426-00-00 SPRING, RETURNSPRING, RETURN
-
1199002-06600-00 CLIPCLIP
-
121D7-27496-00-00 MOLE 1MOLE 1
-
1390111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
141D7-27485-00-00 SEALSEAL
-
1590105-10126-00 BOLT, FLANGEBOLT, FLANGE
-
161D7-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
171D7-27435-00-00 BOLTBOLT
-
181D7-27461-00-00 FOOTRESTFOOTREST
-
191D7-27423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
201D7-27427-00-00 SHAFTSHAFT
-
211D7-27426-00-00 SPRING, RETURNSPRING, RETURN
-
2299002-06600-00 CLIPCLIP
-
231D7-27497-00-00 MOLE 2MOLE 2
-
2490111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
251D7-27485-00-00 SEALSEAL
-
261D7-27214-00-00 STOPPERSTOPPER
-
2790111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2892902-06600-00 WASHERWASHER
-
2990105-10126-00 BOLT, FLANGEBOLT, FLANGE
-
301D7-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
311D7-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
324WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
3390109-06016-00 BOLTBOLT
-
3495604-06200-00 NUT, U FLANGENUT, U FLANGE
-
351D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
3690387-06554-00 COLLAR,LEVER 1COLLAR,LEVER 1
-
3793501-04011-00 BALLBALL
-
3890501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3990105-10171-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-10037-00 WASHER, PLATEWASHER, PLATE
-
411D7-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
421D7-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
434WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
4490109-06016-00 BOLTBOLT
-
4595604-06200-00 NUT, U FLANGENUT, U FLANGE
-
461D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4790387-06554-00 COLLAR,LEVER 1COLLAR,LEVER 1
-
4893501-04011-00 BALLBALL
-
4990501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5090105-10171-00 BOLT, FLANGEBOLT, FLANGE
-
5190201-10037-00 WASHER, PLATEWASHER, PLATE
-
521D7-2171G-01-00 BRACKET, STOPPER STEEERINGBRACKET, STOPPER STEEERING
-
531D7-2174Y-00-00 DAMPERDAMPER
-
541D7-27443-00-00 BRACKET 3BRACKET 3
-
5595024-08030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
561D7-2741L-00-00 BRACKET 4BRACKET 4
-
5792014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
581D7-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
591D7-27311-00-00 STAND, SIDESTAND, SIDE
-
6090387-12031-00 COLLARCOLLAR
-
6190105-12018-00 BOLT, FLANGEBOLT, FLANGE
-
6290185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6390506-35005-00 SPRING, TENSIONSPRING, TENSION
-
645VS-82566-B0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
654WM-8252U-00-00 COVERCOVER
-
6695607-05200-00 NUT, U FLANGENUT, U FLANGE
-
6792017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6890445-22327-00 HOSE (L70)HOSE (L70)
-
6990105-10157-00 BOLT, FLANGEBOLT, FLANGE
