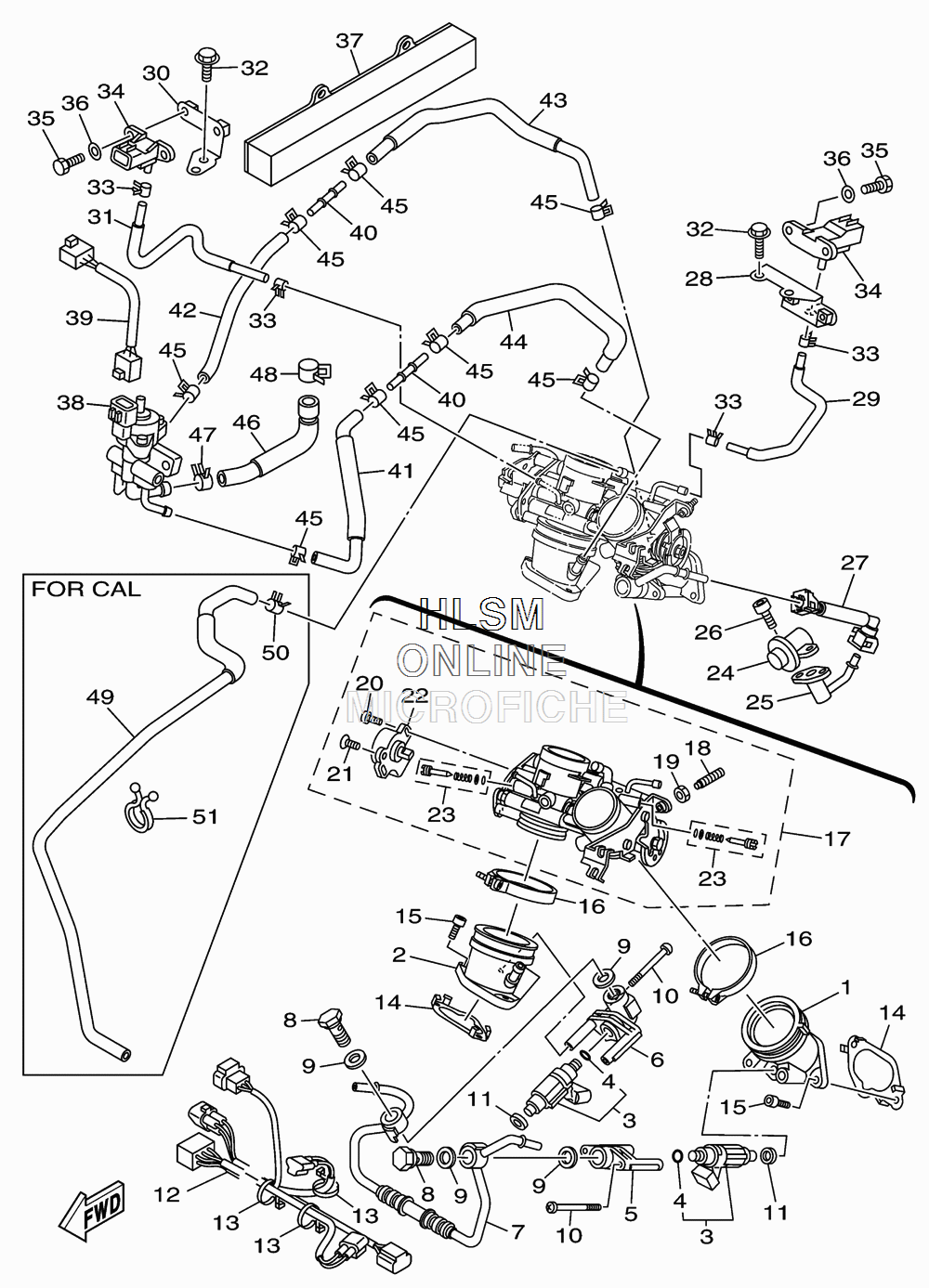

THROTTLE BODY ASSY. для Yamaha ROADLINDER S - 2010 года выпуска`
-
№АртикулНазвание
-
11D7-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
21D7-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
35YU-13761-00-00 INJECTORINJECTOR
-
45FL-14147-00-00 O-RINGO-RING
-
55PX-14188-00-00 CONNECTORCONNECTOR
-
65PX-14189-00-00 CONNECTORCONNECTOR
-
71D7-13938-00-00 PIPEPIPE
-
84BH-13573-00-00 BOLT 1BOLT 1
-
990430-12219-00 GASKETGASKET
-
1098507-06050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
118FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
121D7-82509-30-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1390465-10098-00 BANDBAND
-
141D7-14467-00-00 SEALSEAL
-
1591314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690450-62003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
171D7-13750-01-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
171D7-13750-11-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
183FV-14567-00-00 SCREWSCREW
-
193JD-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
204KM-24453-00-00 SCREWSCREW
-
2198707-04010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
228GL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
235JW-14104-00-00 AIR SCREW SETAIR SCREW SET
-
241D7-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
251D7-13595-00-00 JOINTJOINT
-
2691312-05025-00 BOLTBOLT
-
271D7-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
281D7-14493-00-00 STAY 1STAY 1
-
291D7-13895-00-00 HOSE, AIRHOSE, AIR
-
301D7-14494-00-00 STAY 2STAY 2
-
311D7-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
3295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3390467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
345PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
3597007-05016-00 BOLTBOLT
-
3692907-05600-00 WASHER, PLATEWASHER, PLATE
-
371D7-14426-00-00 DAMPER 2DAMPER 2
-
381D7-85880-00-00 LINEAR, CONTROL VALVELINEAR, CONTROL VALVE
-
391D7-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
405PX-14466-00-00 PIPEPIPE
-
411D7-13545-00-00 HOSE 1HOSE 1
-
421D7-13546-00-00 HOSE 2HOSE 2
-
431D7-13547-00-00 HOSE 3HOSE 3
-
441D7-13548-00-00 HOSE, AIR 4HOSE, AIR 4
-
4590467-10135-00 CLIP, SCISSORCLIP, SCISSOR
-
461D7-13897-00-00 PIPE, AIRPIPE, AIR
-
4790467-15001-00 CLIPCLIP
-
4890467-17089-00 CLIPCLIP
-
491D7-14349-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
5090467-09037-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5190464-23041-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
