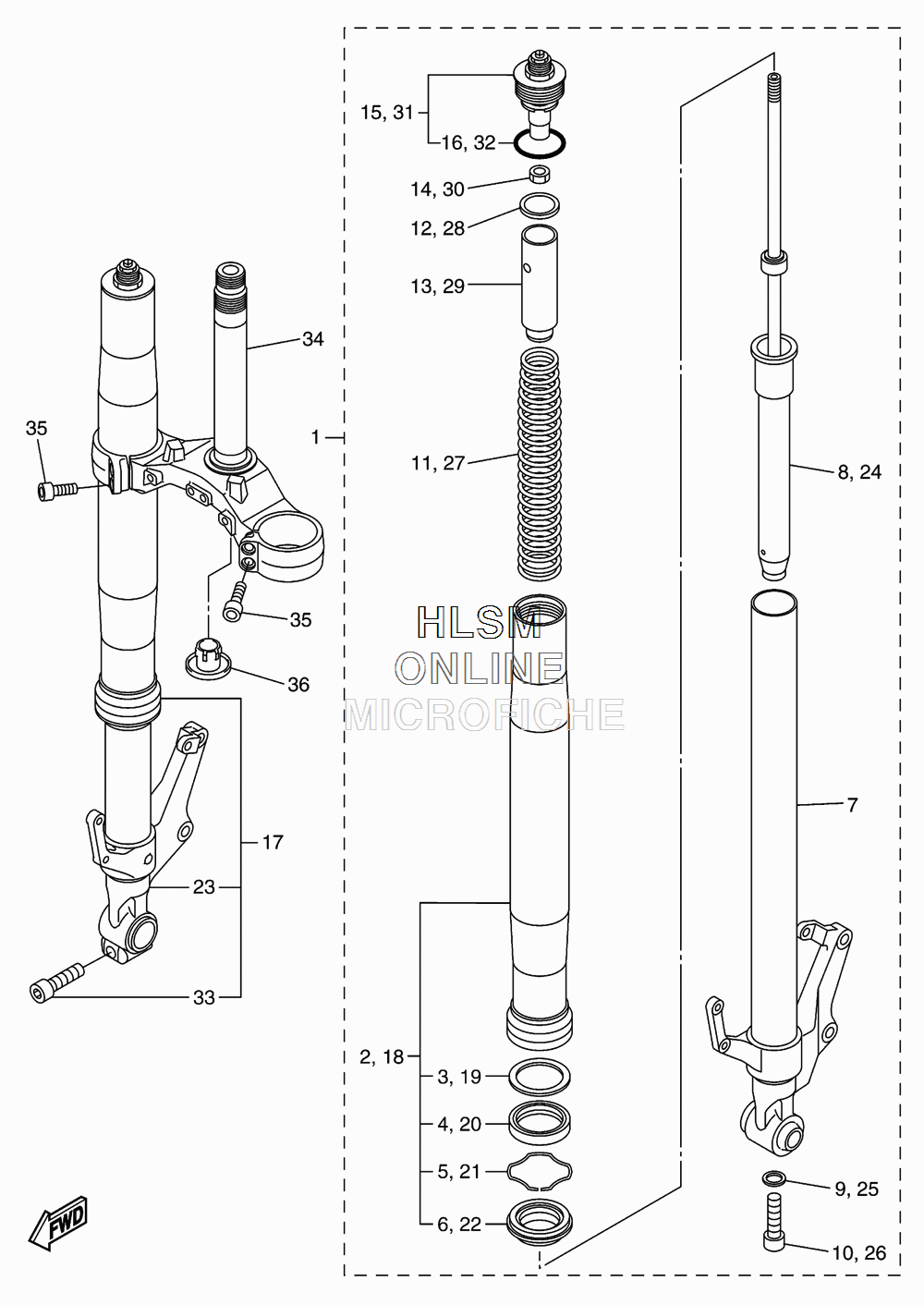

SUSPENSION - FRONT FORK для Yamaha FZ1 - 2010 года выпуска`
-
№АртикулНазвание
-
12D1-23102-11-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22D1-23136-10-00 TUBE, OUTERTUBE, OUTER
-
34V4-23146-L0-00 WASHER, OIL SEALWASHER, OIL SEAL
-
44PU-23145-01-00 OIL SEALOIL SEAL
-
54V4-23153-L0-00 RING, SNAPRING, SNAP
-
64PU-23144-00-00 SEAL, DUSTSEAL, DUST
-
72D1-23110-00-00 INNER TUBE COMP.1 (LEFT HAND)INNER TUBE COMP.1 (LEFT HAND)
-
82D1-23170-11-00 CYL. COMP., FRNT FORK (LEFT HAND)CYL. COMP., FRNT FORK (LEFT HAND)
-
9509-23158-L0-00 GASKETGASKET
-
103D8-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112D1-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
125VY-12277-00-00 WASHERWASHER
-
135VY-23118-00-00 SPACERSPACER
-
143LC-23357-00-00 NUTNUT
-
152D1-23111-10-00 BOLT, CAPBOLT, CAP
-
163XJ-23147-L0-00 O-RINGO-RING
-
172D1-23103-11-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
182D1-23136-10-00 TUBE, OUTERTUBE, OUTER
-
194V4-23146-L0-00 WASHER, OIL SEALWASHER, OIL SEAL
-
204PU-23145-01-00 OIL SEALOIL SEAL
-
214V4-23153-L0-00 RING, SNAPRING, SNAP
-
224PU-23144-00-00 SEAL, DUSTSEAL, DUST
-
232D1-23120-00-00 INNER TUBE COMP.2 (RIGHT HAND)INNER TUBE COMP.2 (RIGHT HAND)
-
242D1-23170-01-00 CYL. COMP., FRNT FORK (RIGHT HAND)CYL. COMP., FRNT FORK (RIGHT HAND)
-
25509-23158-L0-00 GASKETGASKET
-
263D8-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
272D1-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
285VY-12277-00-00 WASHERWASHER
-
295VY-23118-00-00 SPACERSPACER
-
303LC-23357-00-00 NUTNUT
-
312D1-23111-10-00 BOLT, CAPBOLT, CAP
-
323XJ-23147-L0-00 O-RINGO-RING
-
3391314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
342D1-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3591314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
364KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
