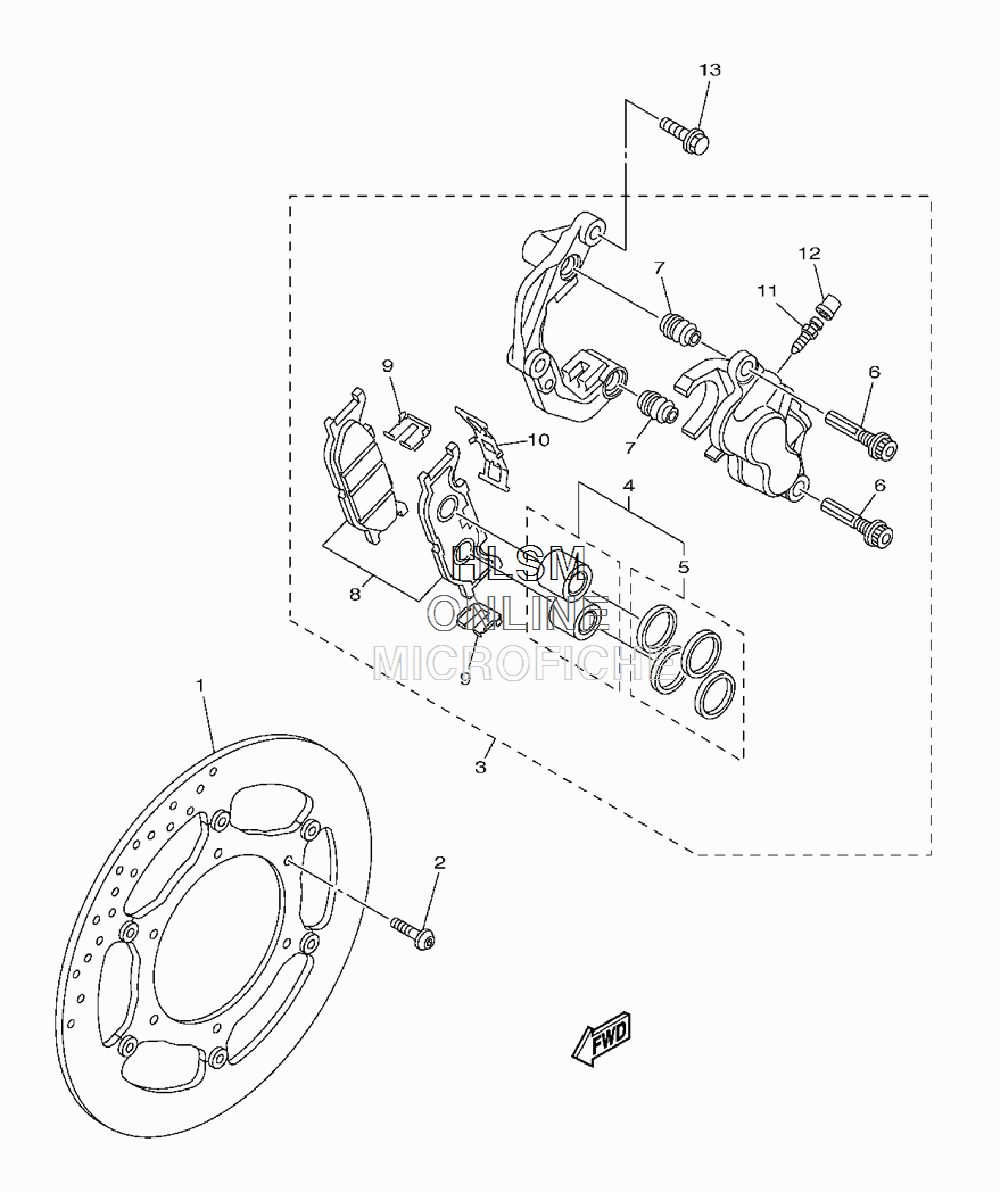

BRAKE - FRONT CALIPER для Yamaha V STAR 950 TOURER - 2009 года выпуска`
-
№АртикулНазвание
-
13P6-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
35S7-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43YX-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53JB-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
65JW-25914-10-00 PIN, SLIDEPIN, SLIDE
-
74TT-25937-00-00 BOOT 2BOOT 2
-
85S7-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
94BP-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
103YX-25929-00-00 SPRING, ANTI RATTLESPRING, ANTI RATTLE
-
1147X-25824-01-00 SCREW, BLEEDSCREW, BLEED
-
121D7-25825-00-00 CAPCAP
-
1390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
