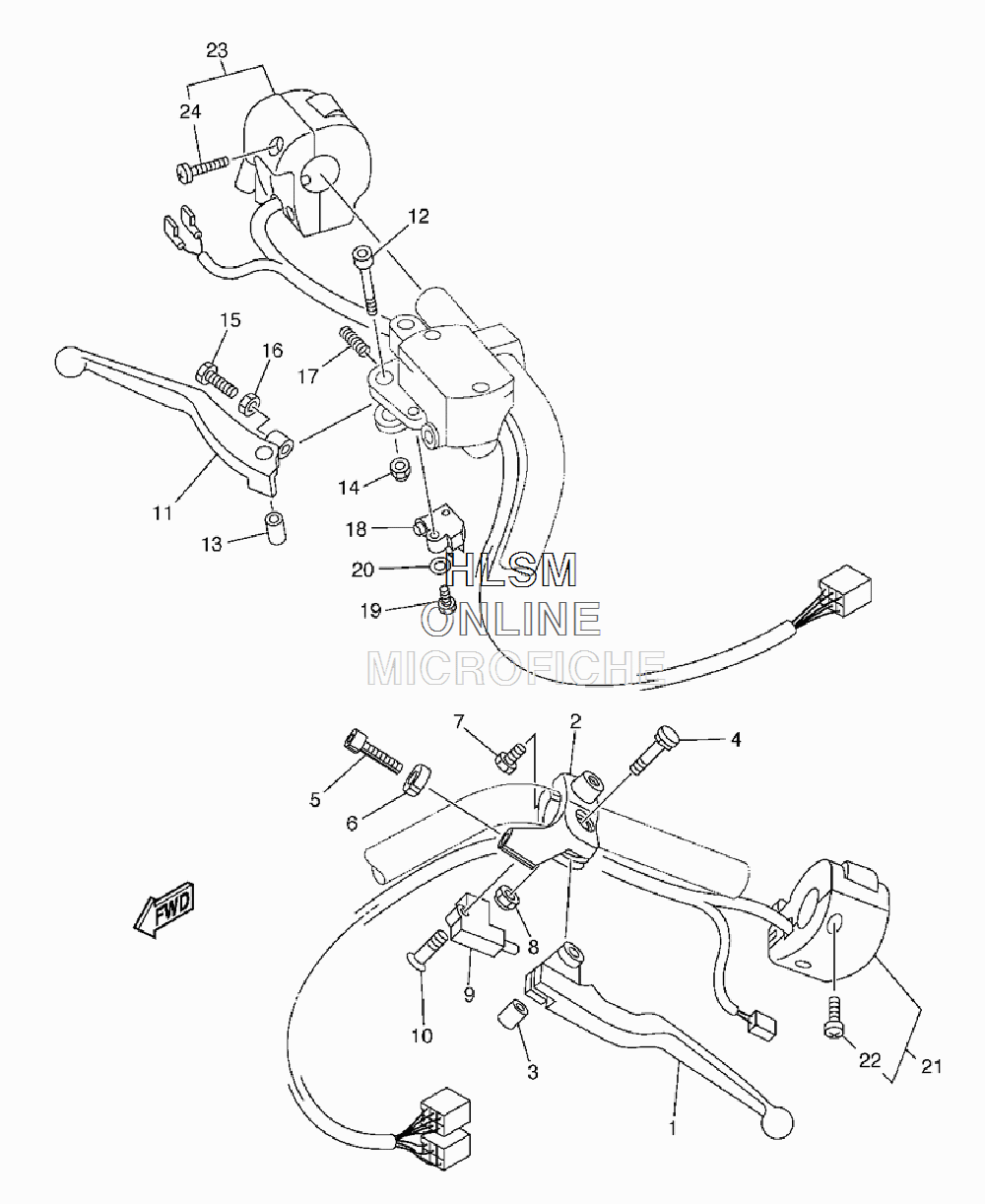

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 1100 SILVERADO - 2009 года выпуска`
-
№АртикулНазвание
-
15BN-83912-00-00 LEVER 1LEVER 1
-
25BN-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
34TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
44TR-83945-00-00 BOLT, LEVERBOLT, LEVER
-
590123-08046-00 BOLTBOLT
-
690179-08148-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
797004-06020-00 BOLTBOLT
-
895604-06100-00 NUT, UNUT, U
-
93YX-82917-01-00 SWITCHSWITCH
-
1098707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
115BN-83922-00-00 LEVER 2LEVER 2
-
1290110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1336Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1495607-06100-00 NUT, UNUT, U
-
1590149-06131-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1690170-06010-00 NUTNUT
-
1790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1836Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1998507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-04600-00 WASHERWASHER
-
215KS-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2298507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
235KS-83975-10-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2498507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
