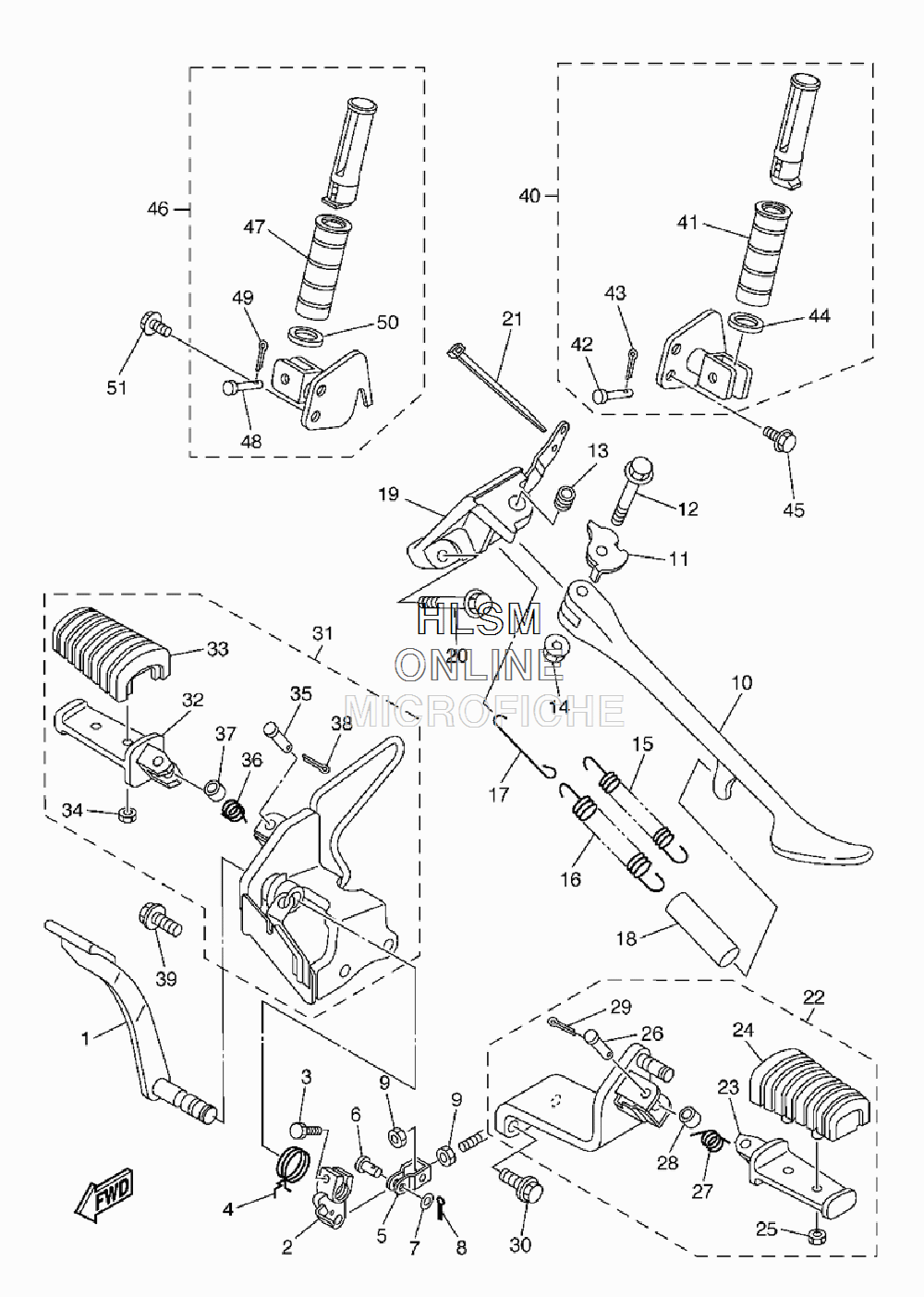

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1100 CUSTOM - 2009 года выпуска`
-
№АртикулНазвание
-
15EL-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EL-27262-00-00 LEVERLEVER
-
397024-06020-00 BOLTBOLT
-
45EL-27216-00-00 SPRING, RETURNSPRING, RETURN
-
54BP-27222-02-00 JOINTJOINT
-
690240-08124-00 PIN, CLEVISPIN, CLEVIS
-
790201-08083-00 WASHER, PLATEWASHER, PLATE
-
891490-20015-00 PIN, COTTERPIN, COTTER
-
995317-08700-00 NUTNUT
-
104KU-27311-13-00 STAND, SIDESTAND, SIDE
-
115EL-27322-01-00 WASHERWASHER
-
1290105-10012-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390387-1003G-00 COLLARCOLLAR
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590506-23490-00 SPRING, TENSIONSPRING, TENSION
-
1690506-29507-00 SPRING, TENSIONSPRING, TENSION
-
175EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1890445-16641-00 HOSE (L60)HOSE (L60)
-
195EL-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
2090105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
211UA-82591-00-00 BANDBAND
-
225EL-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
231NH-27451-00-00 FOOTRESTFOOTREST
-
244VR-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2595617-06100-00 NUT, UNUT, U
-
2691701-08038-00 PINPIN
-
2790508-18696-00 SPRING, TORSIONSPRING, TORSION
-
2890387-087K5-00 COLLARCOLLAR
-
2991490-25020-00 PIN. COTTERPIN. COTTER
-
3090105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
315EL-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
321NH-27461-00-00 FOOTRESTFOOTREST
-
334VR-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3495617-06100-00 NUT, UNUT, U
-
3591701-08038-00 PINPIN
-
3690508-18696-00 SPRING, TORSIONSPRING, TORSION
-
3790387-087K5-00 COLLARCOLLAR
-
3891490-25020-00 PIN. COTTERPIN. COTTER
-
3990105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
405EL-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
414WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
4291701-06032-00 PIN, CLEVISPIN, CLEVIS
-
4391490-20015-00 PIN, COTTERPIN, COTTER
-
4490201-210U0-00 WASHER, PLATEWASHER, PLATE
-
4590105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
465EL-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
474WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
4891701-06032-00 PIN, CLEVISPIN, CLEVIS
-
4991490-20015-00 PIN, COTTERPIN, COTTER
-
5090201-210U0-00 WASHER, PLATEWASHER, PLATE
-
5190105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
