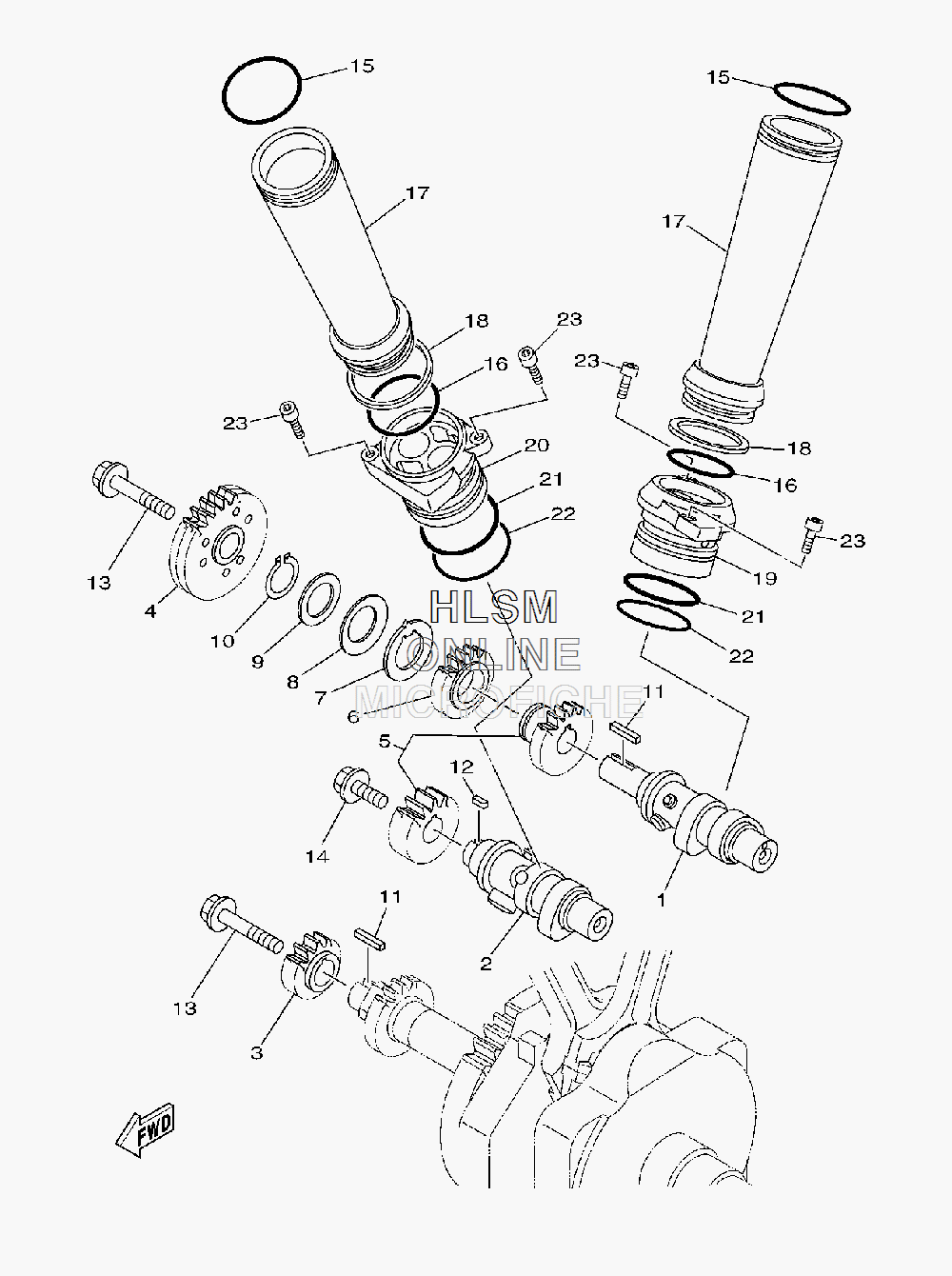

CAMSHAFT W/ CHAIN для Yamaha STRATOLINER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-12170-03-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
21D7-12180-03-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
31D7-11534-00-00 GEAR, BREAKER DRIVEGEAR, BREAKER DRIVE
-
41D7-Y115B-00-00 DRIVEN GEAR COMP.DRIVEN GEAR COMP.
-
51D7-W115A-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
64WM-11544-01-00 GEAR 2GEAR 2
-
71D7-11557-00-00 WASHER 1WASHER 1
-
84WM-12216-01-00 SPRINGSPRING
-
990201-283U6-00 WASHER, PLATEWASHER, PLATE
-
1099009-28400-00 CIRCLIPCIRCLIP
-
1190282-03002-00 KEY, STRAIGHTKEY, STRAIGHT
-
1290282-04001-00 KEY, STRAIGHTKEY, STRAIGHT
-
1390105-10159-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-10445-00 BOLT, FLANGEBOLT, FLANGE
-
1593210-53638-00 O-RINGO-RING
-
1693210-472A9-00 O-RINGO-RING
-
171D7-12155-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
185PX-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
191D7-12147-00-00 HOUSINGHOUSING
-
201D7-12148-00-00 HOUSINGHOUSING
-
2193210-54175-00 O-RINGO-RING
-
2293210-54452-00 O-RINGO-RING
-
2390110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
