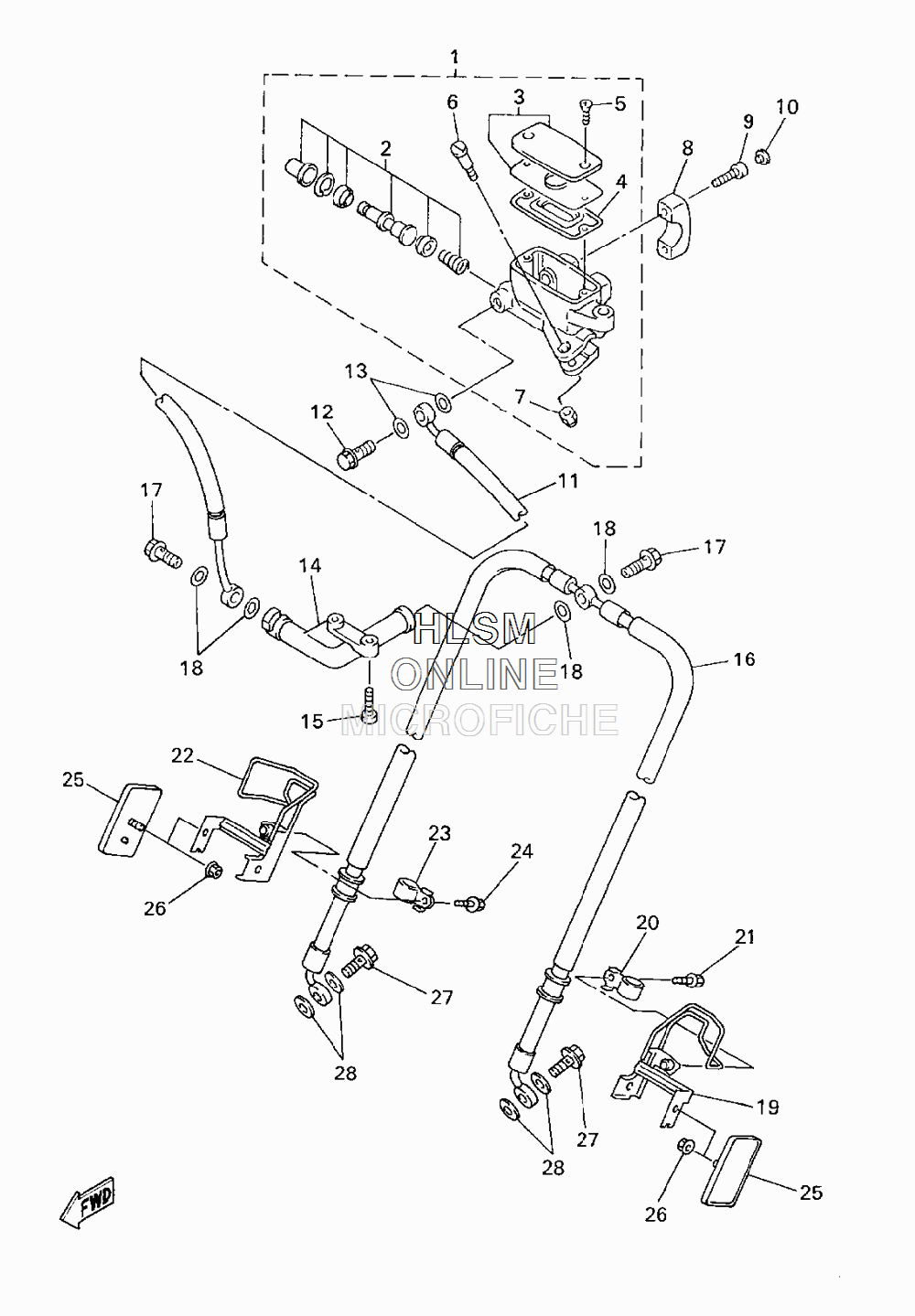

FRONT MASTER CYLINDER BRAKE для Yamaha ROYAL STAR VENTURE S - 2009 года выпуска`
-
№АртикулНазвание
-
14XY-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24K0-W0041-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
35VN-W2585-20-00 RESERVOIR CAP SETRESERVOIR CAP SET
-
44NK-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
54NK-2589H-00-00 SCREWSCREW
-
64NK-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
795604-06100-00 NUT, UNUT, U
-
84NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
991314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090338-06162-00 PLUGPLUG
-
114XY-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1290401-10020-00 BOLT, UNIONBOLT, UNION
-
1390430-10005-00 GASKETGASKET
-
144NK-25885-00-00 JOINTJOINT
-
1591317-06020-00 BOLTBOLT
-
164WM-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1790401-10020-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
194XY-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2090461-10132-00 CLAMPCLAMP
-
2195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
224XY-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2390461-10132-00 CLAMPCLAMP
-
2495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2511H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2695707-05500-00 NUT, FLANGENUT, FLANGE
-
2790401-10020-00 BOLT, UNIONBOLT, UNION
-
2890430-10005-00 GASKETGASKET
