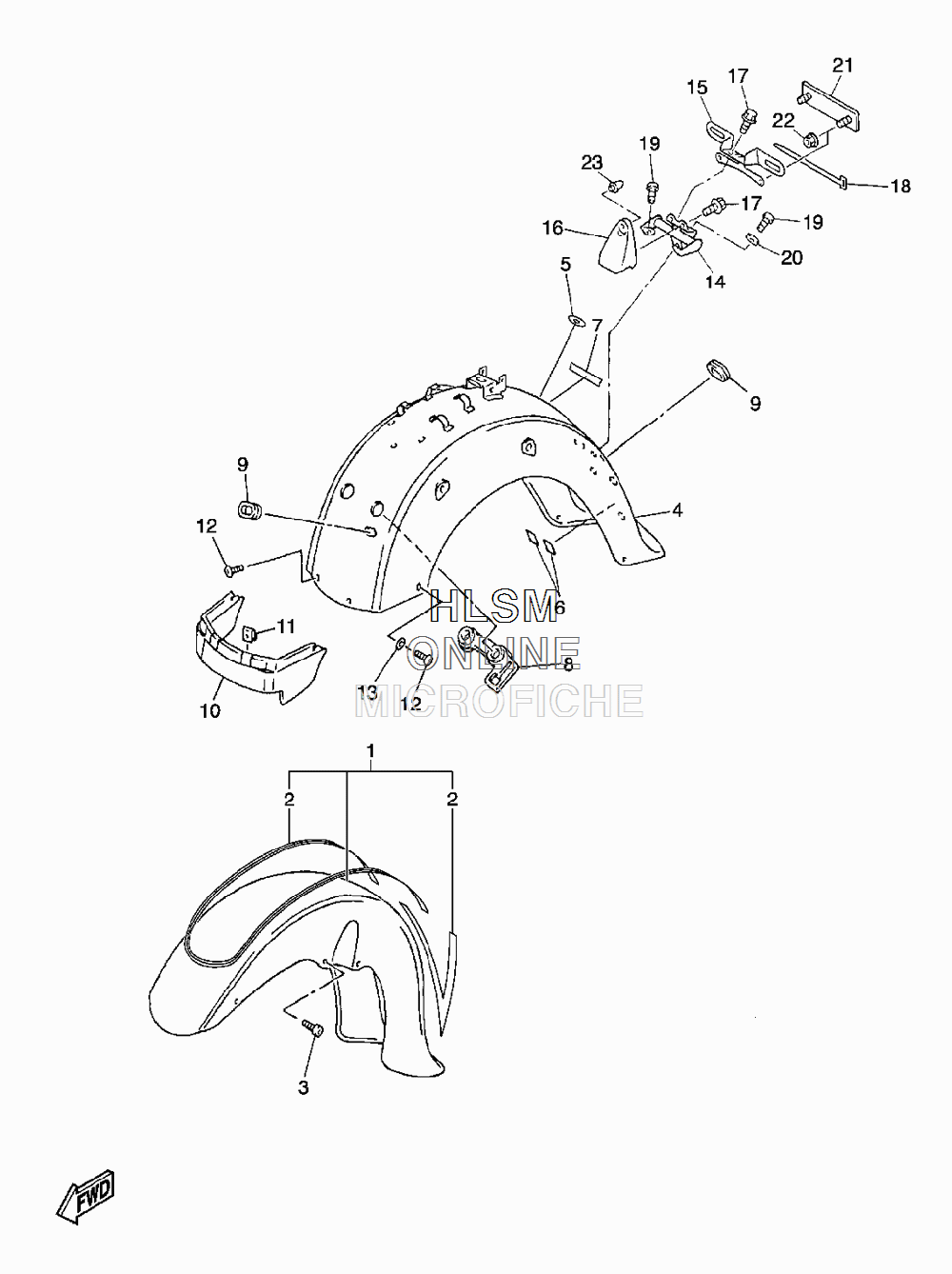

FENDER - FRONT / REAR для Yamaha ROYAL STAR TOUR DELUXE - 2009 года выпуска`
-
№АртикулНазвание
-
14NK-Y2150-R0-P2 FRONT FENDER ASSY (USE FOR COLOR DRMK / 0918)FRONT FENDER ASSY (USE FOR COLOR DRMK / 0918)
-
21D6-21570-60-00 GRAPHIC SET, FRONT FENDERGRAPHIC SET, FRONT FENDER
-
391314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45EJ-21610-00-P2 REAR FENDER COMP. (USE FOR COLOR DRMK / 0918)REAR FENDER COMP. (USE FOR COLOR DRMK / 0918)
-
54NK-21735-00-00 SEAL 2SEAL 2
-
63MA-27491-00-00 PROTECTORPROTECTOR
-
71D6-2153E-00-00 EMBLEM, YAMAHA (FRS)EMBLEM, YAMAHA (FRS)
-
84NK-21649-00-00 DAMPERDAMPER
-
990480-15061-00 GROMMETGROMMET
-
104NK-21621-00-P1 FLAP (USE FOR COLOR DRMK / 0918)FLAP (USE FOR COLOR DRMK / 0918)
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390202-06170-00 WASHER, PLATEWASHER, PLATE
-
144XY-2317W-00-00 STAY, 9STAY, 9
-
155BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
161D6-84703-00-00 BRACKETBRACKET
-
1795027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1890464-25002-00 CLAMPCLAMP
-
1995024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-06043-00 WASHER, PLATEWASHER, PLATE
-
211FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2295707-05500-00 NUT, FLANGENUT, FLANGE
-
2342U-21639-00-00 DAMPER 2DAMPER 2
