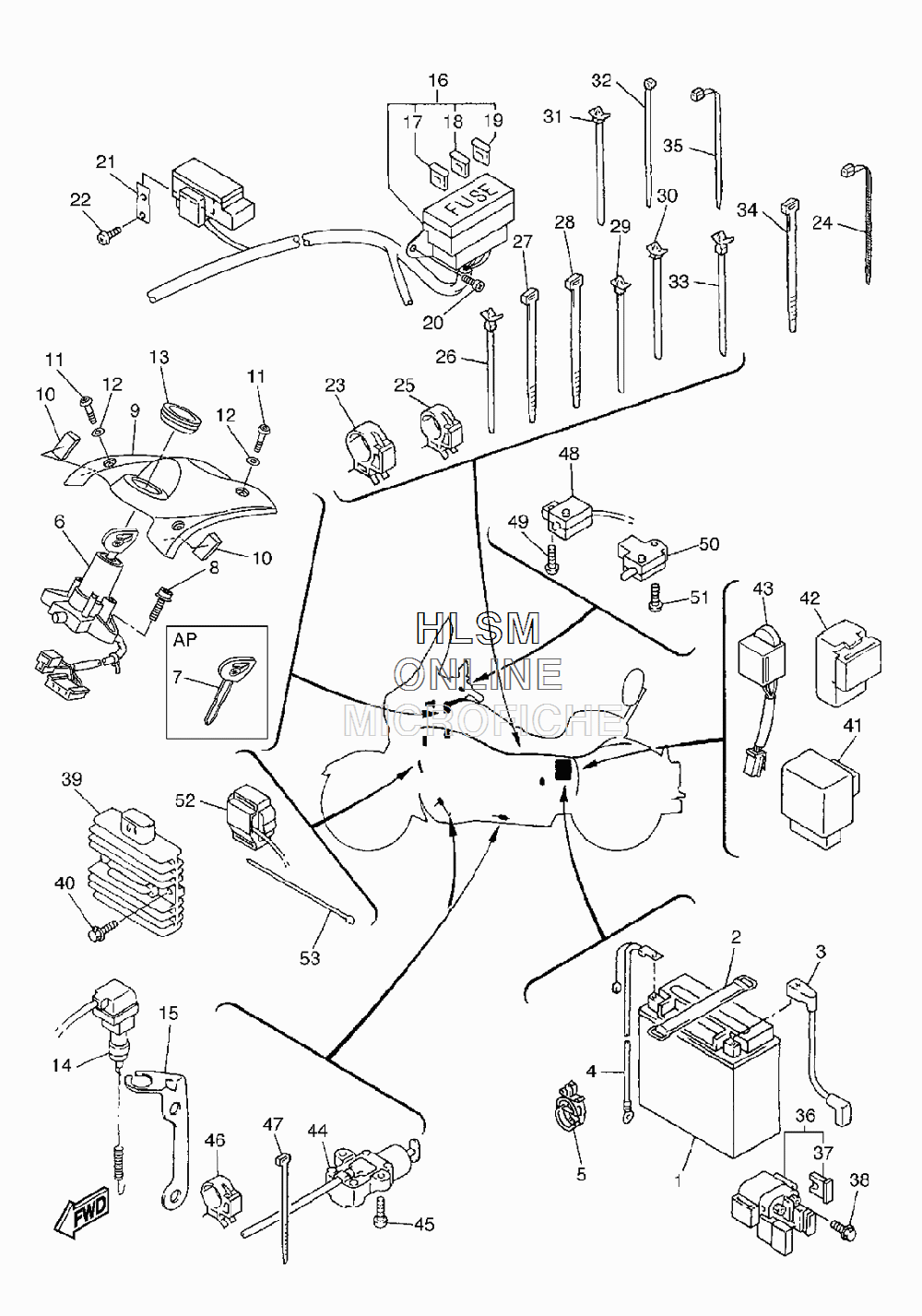

ELECTRICAL для Yamaha ROYAL STAR TOUR DELUXE S - 2009 года выпуска`
-
№АртикулНазвание
-
1BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
2120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34NK-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
41D6-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
590464-18246-00 CLAMPCLAMP
-
61D6-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
75PX-82511-09-00 BLANK KEYBLANK KEY
-
890109-080G5-00 BOLTBOLT
-
91D6-8291G-00-00 COVER, SWITCHCOVER, SWITCH
-
101D6-82176-00-00 DAMPERDAMPER
-
1190149-05299-00 SCREWSCREW
-
1290202-05180-00 WASHER, PLATEWASHER, PLATE
-
134XY-82545-00-00 GROMMETGROMMET
-
144XY-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
154XY-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
161D6-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1742X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
1836Y-82151-00-00 FUSE (15A-BL)FUSE (15A-BL)
-
191NL-82151-00-00 FUSE (5A-BL)FUSE (5A-BL)
-
2098907-06012-00 SCREW, BINDSCREW, BIND
-
214XY-81953-00-00 STAY, RELAYSTAY, RELAY
-
2297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2390464-25217-00 CLAMPCLAMP
-
2490464-15195-00 CLAMPCLAMP
-
2590464-20191-00 CLAMPCLAMP
-
2690464-12036-00 CLAMPCLAMP
-
271UA-82591-00-00 BANDBAND
-
2890464-35132-00 CLAMPCLAMP
-
2990464-12089-00 CLAMPCLAMP
-
3090464-10112-00 CLAMPCLAMP
-
3190464-12036-00 CLAMPCLAMP
-
3290464-16061-00 BANDBAND
-
3390464-12036-00 CLAMPCLAMP
-
341UA-82591-00-00 BANDBAND
-
3590464-13077-00 CLAMPCLAMP
-
364BH-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
371AE-82151-00-00 FUSE (30A-BL)FUSE (30A-BL)
-
3895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
394XY-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
4095807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
415KS-81950-00-00 RELAY ASSYRELAY ASSY
-
421UY-81950-92-00 RELAY ASSYRELAY ASSY
-
435FU-82560-60-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
445RT-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4590157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4690464-10190-00 CLAMPCLAMP
-
471UA-82591-00-00 BANDBAND
-
481D6-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
4998907-04014-00 SCREW, BINDSCREW, BIND
-
504XY-82917-00-00 SWITCHSWITCH
-
5198907-04025-00 SCREW, BINDSCREW, BIND
-
524BH-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
5390464-16061-00 BANDBAND
