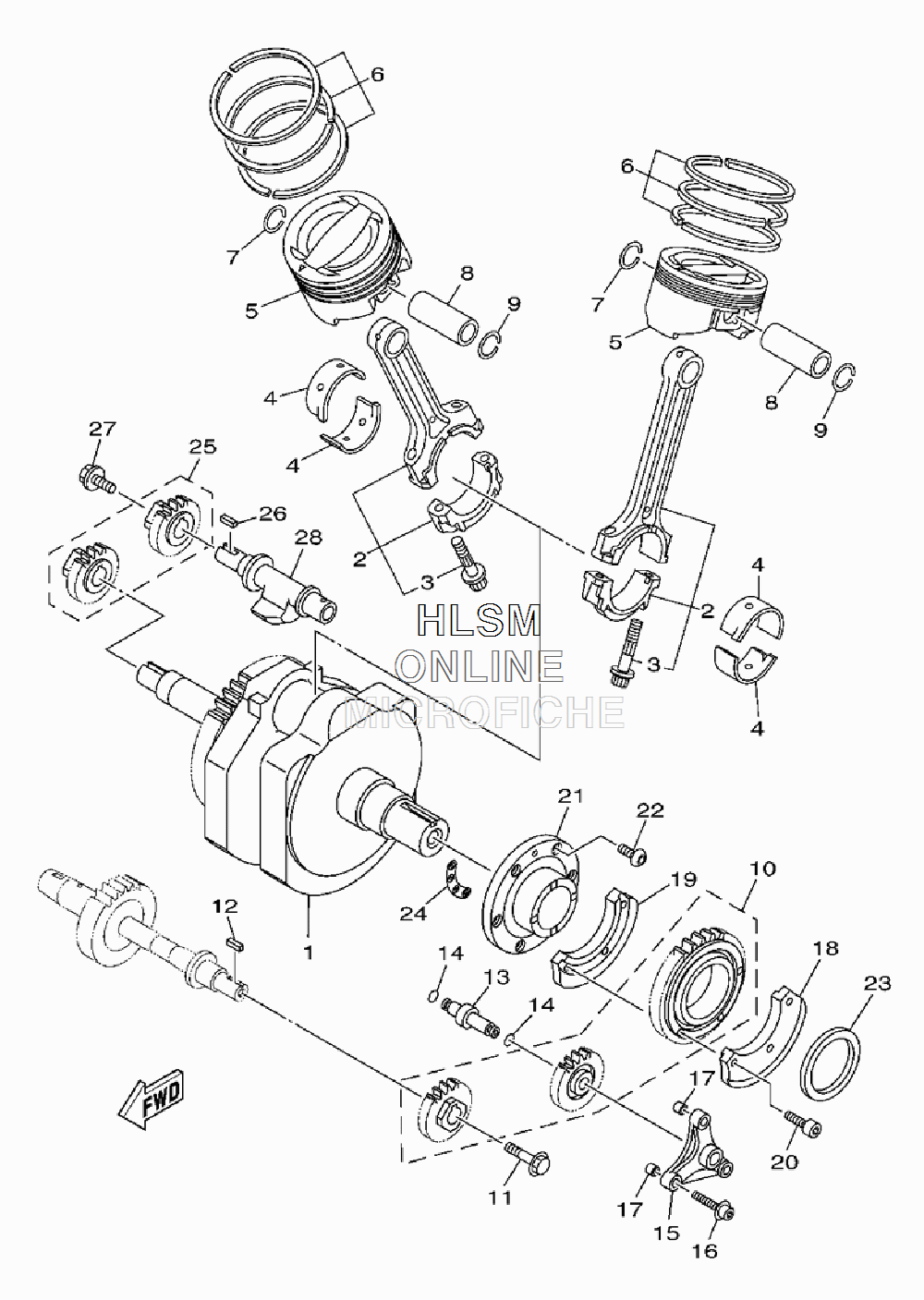

CRANKSHAFT - PISTON для Yamaha ROADLINER MIDNIGHT - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25C7-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35YU-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
45YU-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
45YU-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
45YU-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
45YU-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
45YU-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
51D7-11631-00-00 PISTON (STD)PISTON (STD)
-
61D7-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
793450-24154-00 CIRCLIPCIRCLIP
-
85VK-11633-00-00 PIN, PISTONPIN, PISTON
-
993450-24154-00 CIRCLIPCIRCLIP
-
101D7-W114B-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
1190105-10152-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1290282-04001-00 KEY, STRAIGHTKEY, STRAIGHT
-
131D7-11455-00-00 SHAFT 1SHAFT 1
-
1493210-06003-00 O-RINGO-RING
-
151D7-1135A-00-00 BRACKETBRACKET
-
1690109-06028-00 BOLTBOLT
-
1799530-08012-00 PIN, DOWELPIN, DOWEL
-
181D7-11454-00-00 WEIGHT 1WEIGHT 1
-
191D7-1145A-00-00 WEIGHT 3WEIGHT 3
-
2090110-06211-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
211D7-11444-00-00 HOUSINGHOUSING
-
2290149-06097-00 SCREWSCREW
-
231D7-11483-00-00 WASHER, WEIGHT 1WASHER, WEIGHT 1
-
241D7-11479-00-00 GASKETGASKET
-
251D7-W114A-00-00 BREAKER GEAR SETBREAKER GEAR SET
-
2690282-04001-00 KEY, STRAIGHTKEY, STRAIGHT
-
2790105-10445-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
281D7-11464-00-00 WEIGHT 2WEIGHT 2
