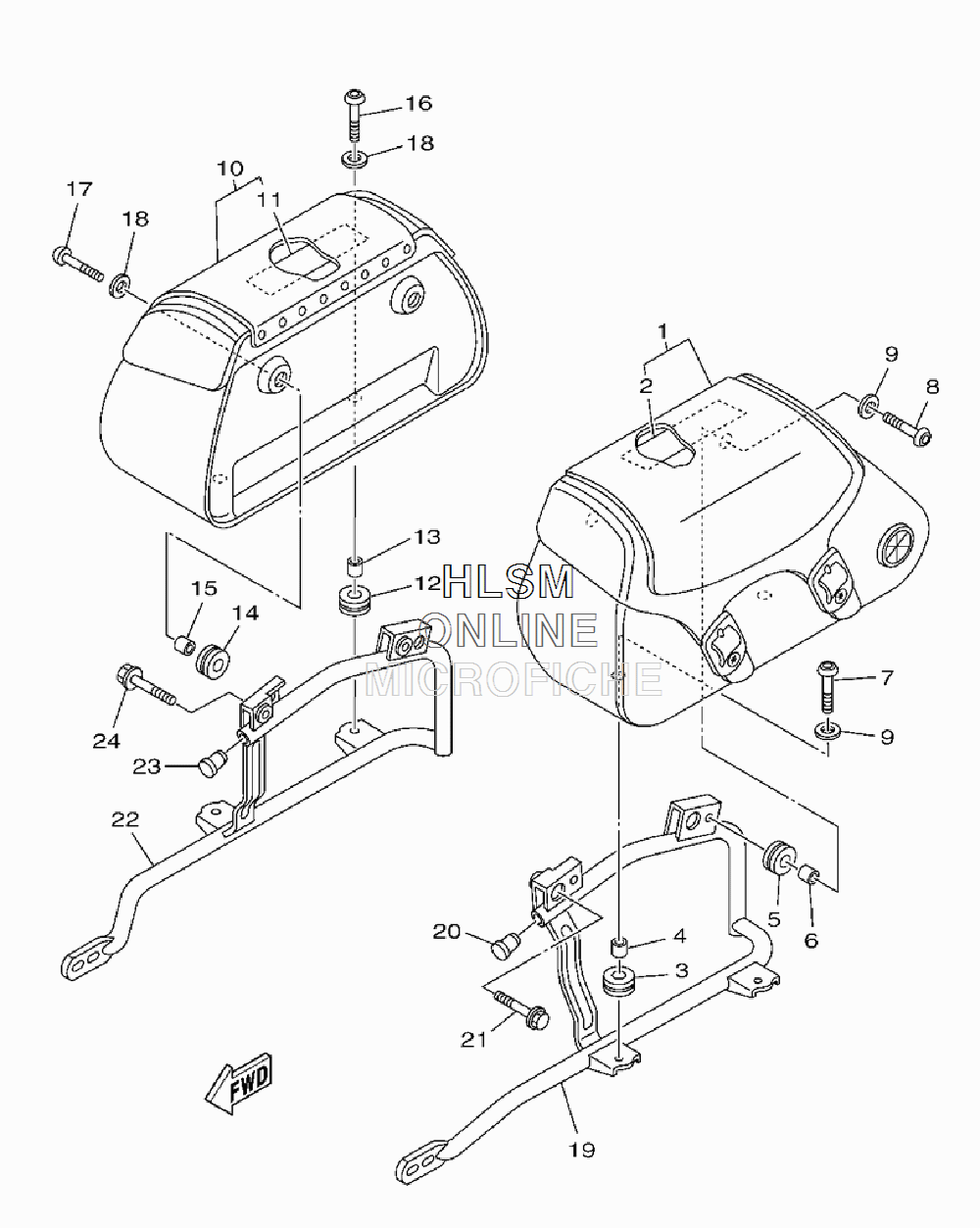

SADDLEBAG 1 для Yamaha ROAD STAR SILVERADO - 2009 года выпуска`
-
№АртикулНазвание
-
15VP-F8430-20-00 SADDLEBAG COMP. 1SADDLEBAG COMP. 1
-
25GA-F8446-00-00 LABEL, CAUTIONLABEL, CAUTION
-
390480-20132-00 GROMMETGROMMET
-
490387-061Y7-00 COLLARCOLLAR
-
590480-20338-00 GROMMETGROMMET
-
690387-06518-00 COLLARCOLLAR
-
792017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
892017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990201-06074-00 WASHER, PLATEWASHER, PLATE
-
105VP-F8440-20-00 SADDBAG COMP. 2SADDBAG COMP. 2
-
115GA-F8446-00-00 LABEL, CAUTIONLABEL, CAUTION
-
1290480-20132-00 GROMMETGROMMET
-
1390387-061Y7-00 COLLARCOLLAR
-
1490480-20338-00 GROMMETGROMMET
-
1590387-06518-00 COLLARCOLLAR
-
1692017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1792017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890201-06074-00 WASHER, PLATEWASHER, PLATE
-
195GA-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
2090338-19212-00 PLUGPLUG
-
2195807-08050-00 BOLT, FLANGEBOLT, FLANGE
-
225GA-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
2390338-19212-00 PLUGPLUG
-
2495807-08050-00 BOLT, FLANGEBOLT, FLANGE
