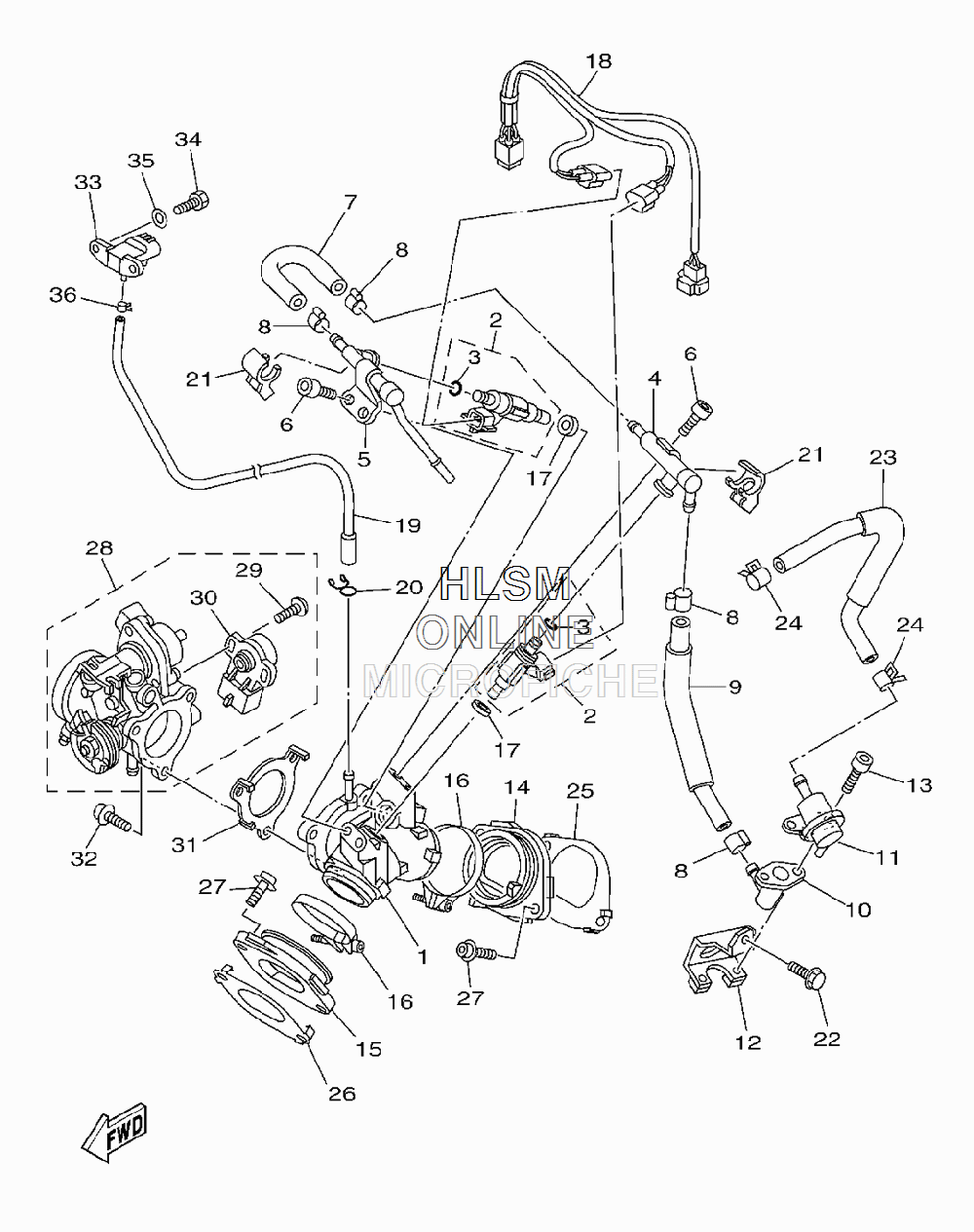

THROTTLE BODY ASSY. для Yamaha ROAD STAR S - 2009 года выпуска`
-
№АртикулНазвание
-
15VN-13640-00-00 MANIFOLDMANIFOLD
-
25VN-13761-00-00 INJECTORINJECTOR
-
35FL-14147-00-00 O-RINGO-RING
-
45VN-14349-00-00 PIPEPIPE
-
55VN-14148-00-00 PIPEPIPE
-
691312-06014-00 BOLTBOLT
-
75VN-13926-00-00 HOSEHOSE
-
868V-24387-00-00 CLIPCLIP
-
95VN-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
105VN-13595-00-00 JOINTJOINT
-
115UX-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
125VN-14291-00-00 BRACKET 1BRACKET 1
-
1391317-05016-00 BOLTBOLT
-
145VN-13596-01-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
155VN-13597-01-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
1690450-59010-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
178FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
185VN-81517-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
195VN-13895-00-00 HOSE, AIRHOSE, AIR
-
2090467-08075-00 CLIP,SCISSORCLIP,SCISSOR
-
213D8-14261-00-00 HOLDERHOLDER
-
2295027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
235VN-13973-00-00 PIPE, FUEL 3PIPE, FUEL 3
-
2490467-13071-00 CLIP(3YX)CLIP(3YX)
-
255VN-14457-00-00 SEALSEAL
-
265VN-14462-00-00 SEALSEAL
-
2790110-06048-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
285VN-13750-00-00 THROTTLE BODY ASSY (ASYB) (5VRG)THROTTLE BODY ASSY (ASYB) (5VRG)
-
285VN-13750-10-00 THROTTLE BODY ASSY (ASYCB) (5VRH) (CALIF ONLY)THROTTLE BODY ASSY (ASYCB) (5VRH) (CALIF ONLY)
-
298CC-14216-10-00 SCREWSCREW
-
303B4-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
315VN-14467-00-00 SEALSEAL
-
3290110-06069-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
335PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
3497007-05016-00 BOLTBOLT
-
3592907-05600-00 WASHER, PLATEWASHER, PLATE
-
3690467-07093-00 CLIPCLIP
