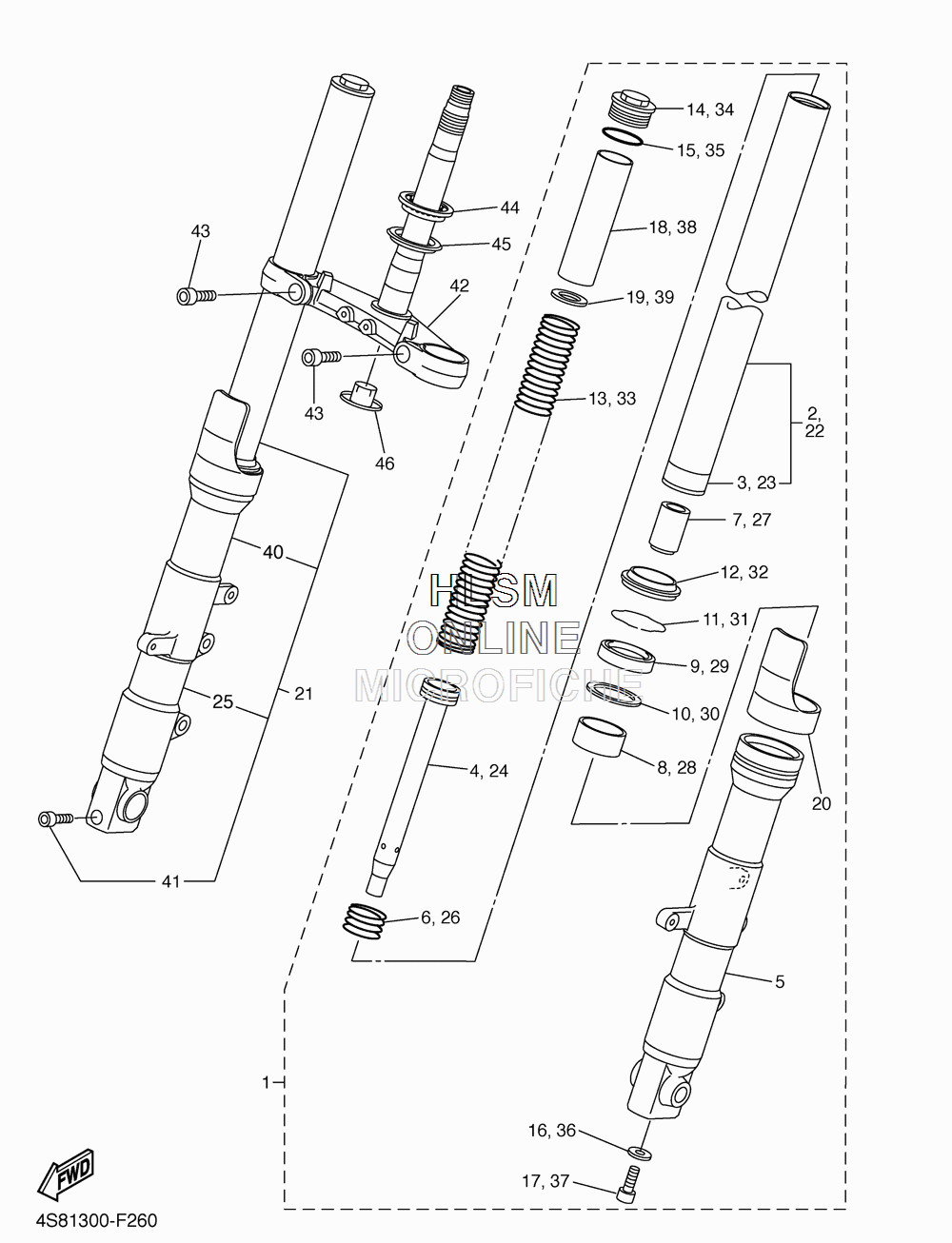

SUSPENSION - FRONT FORK для Yamaha FZ6 - 2009 года выпуска`
-
№АртикулНазвание
-
14S8-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24S8-23110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
34TX-23135-B0-00 METAL, SLIDE 2METAL, SLIDE 2
-
45VX-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
54S8-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
64TX-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
74TX-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
84TX-23125-B0-00 METAL, SLIDE 1METAL, SLIDE 1
-
95VX-23145-00-00 OIL SEALOIL SEAL
-
104TX-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
114TX-23156-00-00 RING, SNAPRING, SNAP
-
124TX-23144-00-00 SEAL, DUSTSEAL, DUST
-
135VX-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
145VX-2311H-00-00 FORK BOLTFORK BOLT
-
1593210-34504-00 O-RINGO-RING
-
1690430-10171-00 GASKETGASKET
-
1790110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185VX-23118-00-00 SPACERSPACER
-
194S8-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
204TX-2331G-00-00 COVERCOVER
-
214S8-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
224S8-23110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
234TX-23135-B0-00 METAL, SLIDE 2METAL, SLIDE 2
-
245VX-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
254S8-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
264TX-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
274TX-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
284TX-23125-B0-00 METAL, SLIDE 1METAL, SLIDE 1
-
295VX-23145-00-00 OIL SEALOIL SEAL
-
304TX-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
314TX-23156-00-00 RING, SNAPRING, SNAP
-
324TX-23144-00-00 SEAL, DUSTSEAL, DUST
-
335VX-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
345VX-2311H-00-00 FORK BOLTFORK BOLT
-
3593210-34504-00 O-RINGO-RING
-
3690430-10171-00 GASKETGASKET
-
3790110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
385VX-23118-00-00 SPACERSPACER
-
394S8-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
404TX-2331G-00-00 COVERCOVER
-
4191314-08045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
425VX-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391312-10025-00 BOLTBOLT
-
4493399-99932-00 BEARING, SPECIALBEARING, SPECIAL
-
453FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
464KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
