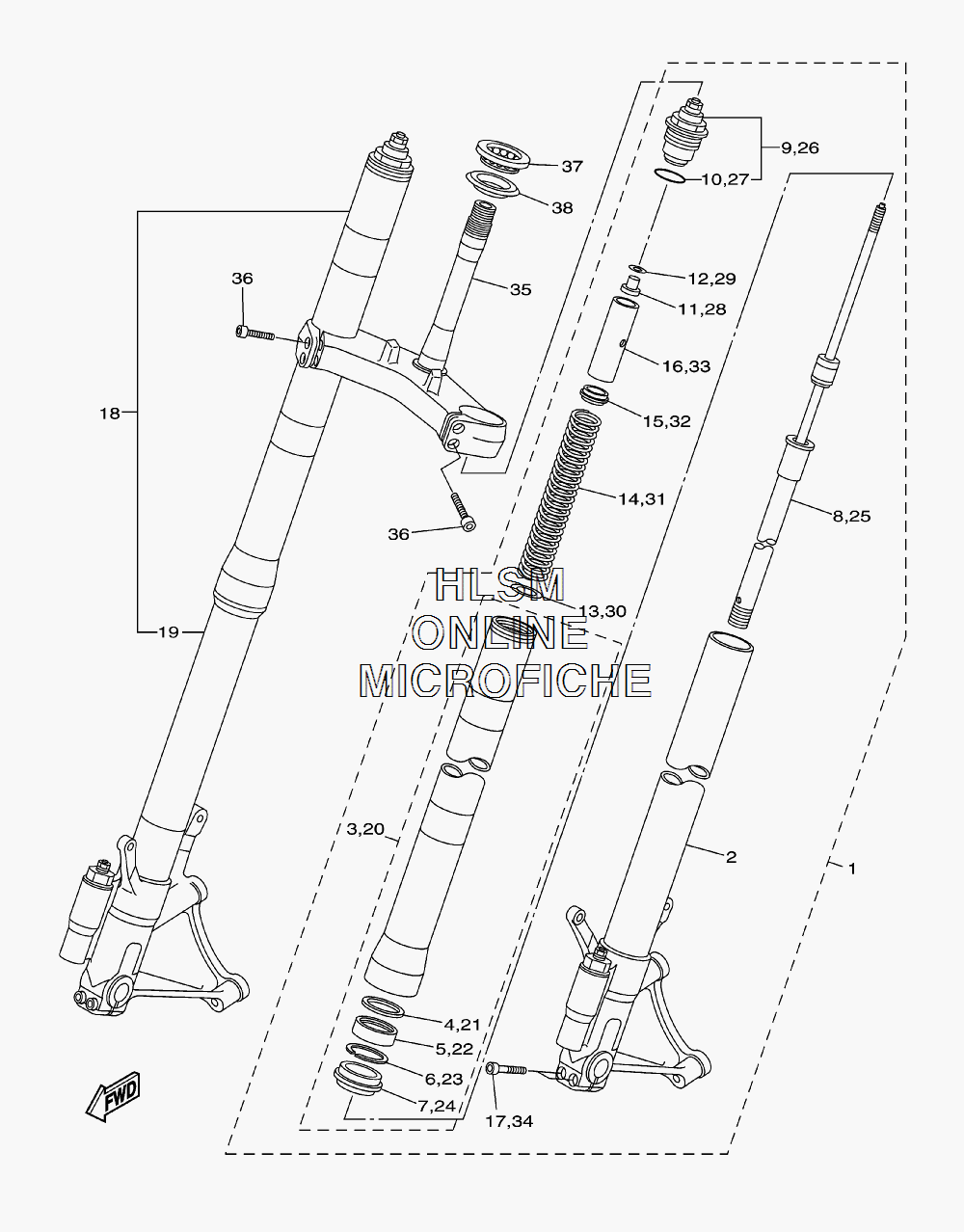

SUSPENSION - FRONT FORK для Yamaha YZF-R6 W/FLAMES - 2008 года выпуска`
-
№АртикулНазвание
-
113S-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
213S-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
313S-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
43VD-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
55VU-23145-00-00 ...OIL SEAL...OIL SEAL
-
63VD-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
73VD-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
813S-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
913S-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1093210-41N50-00 ......O-RING......O-RING
-
1113S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
1213S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
132C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
1413S-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1513S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
1613S-23118-00-00 ...SPACER...SPACER
-
1791314-08040-00 ...BOLT (3JP)...BOLT (3JP)
-
1813S-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
1913S-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
2013S-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
213VD-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
225VU-23145-00-00 ...OIL SEAL...OIL SEAL
-
233VD-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
243VD-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2513S-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
2613S-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
2793210-41N50-00 ...O-RING...O-RING
-
2813S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
2913S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
302C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
3113S-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
3213S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
3313S-23118-00-00 ...SPACER...SPACER
-
3491314-08040-00 ...BOLT (3JP)...BOLT (3JP)
-
3513S-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3691314-08030-00 BOLT (3BM)BOLT (3BM)
-
3793399-99957-00 BEARINGBEARING
-
383FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
