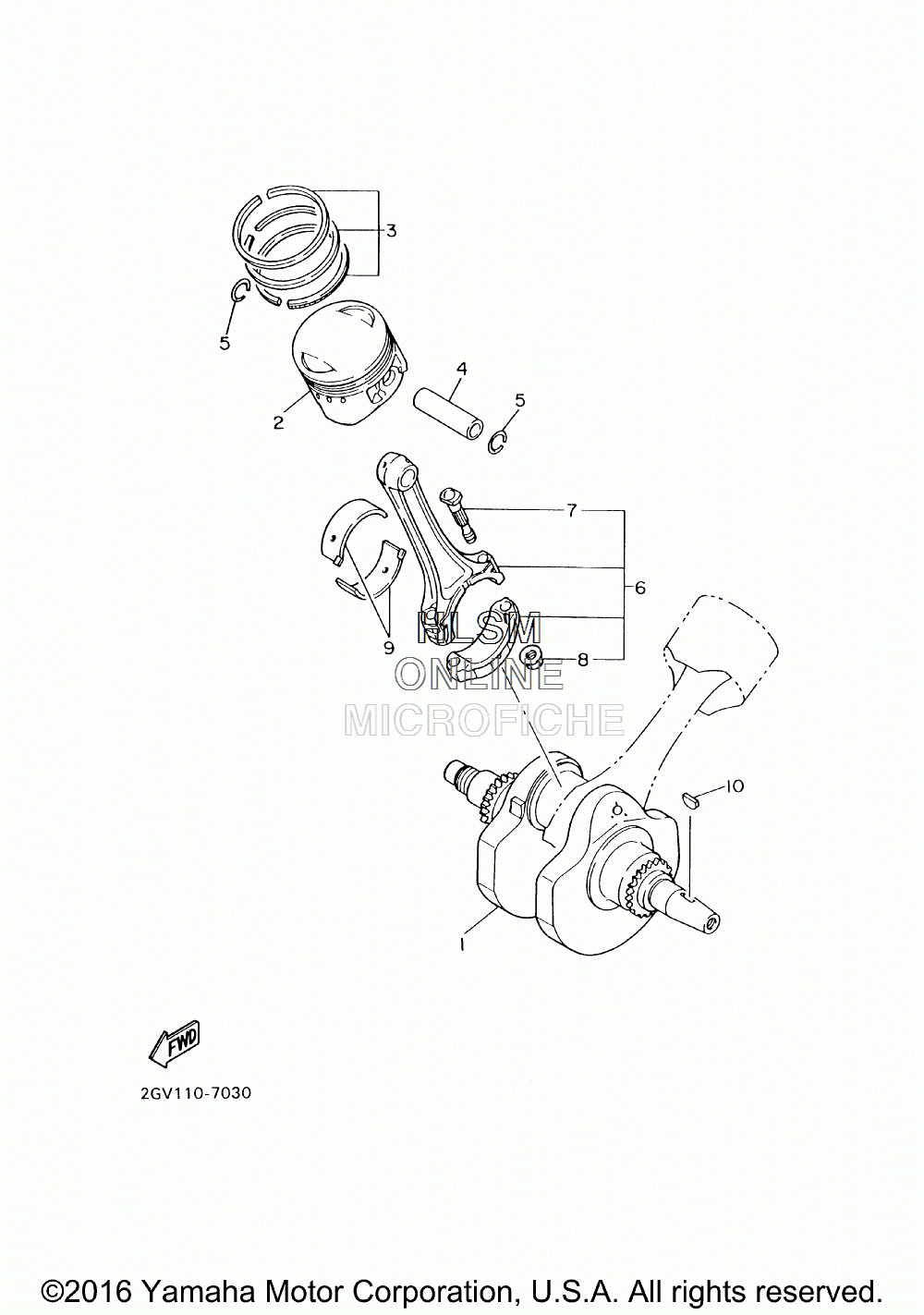

CRANKSHAFT - PISTON для Yamaha V STAR 650 MIDNIGHT CUSTOM - 2008 года выпуска`
-
№АртикулНазвание
-
14VR-11411-00-00 CRANKSHAFTCRANKSHAFT
-
24VR-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
24VR-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
24VR-11631-01-A0 PISTON (STD)PISTON (STD)
-
34VR-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
34VR-11605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
34VR-11607-00-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
43LD-11633-00-00 PIN, PISTONPIN, PISTON
-
593450-22027-00 CIRCLIP, INNERCIRCLIP, INNER
-
64VR-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
722U-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
890179-08327-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
93LD-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
93LD-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
93LD-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
93LD-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
1090280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
