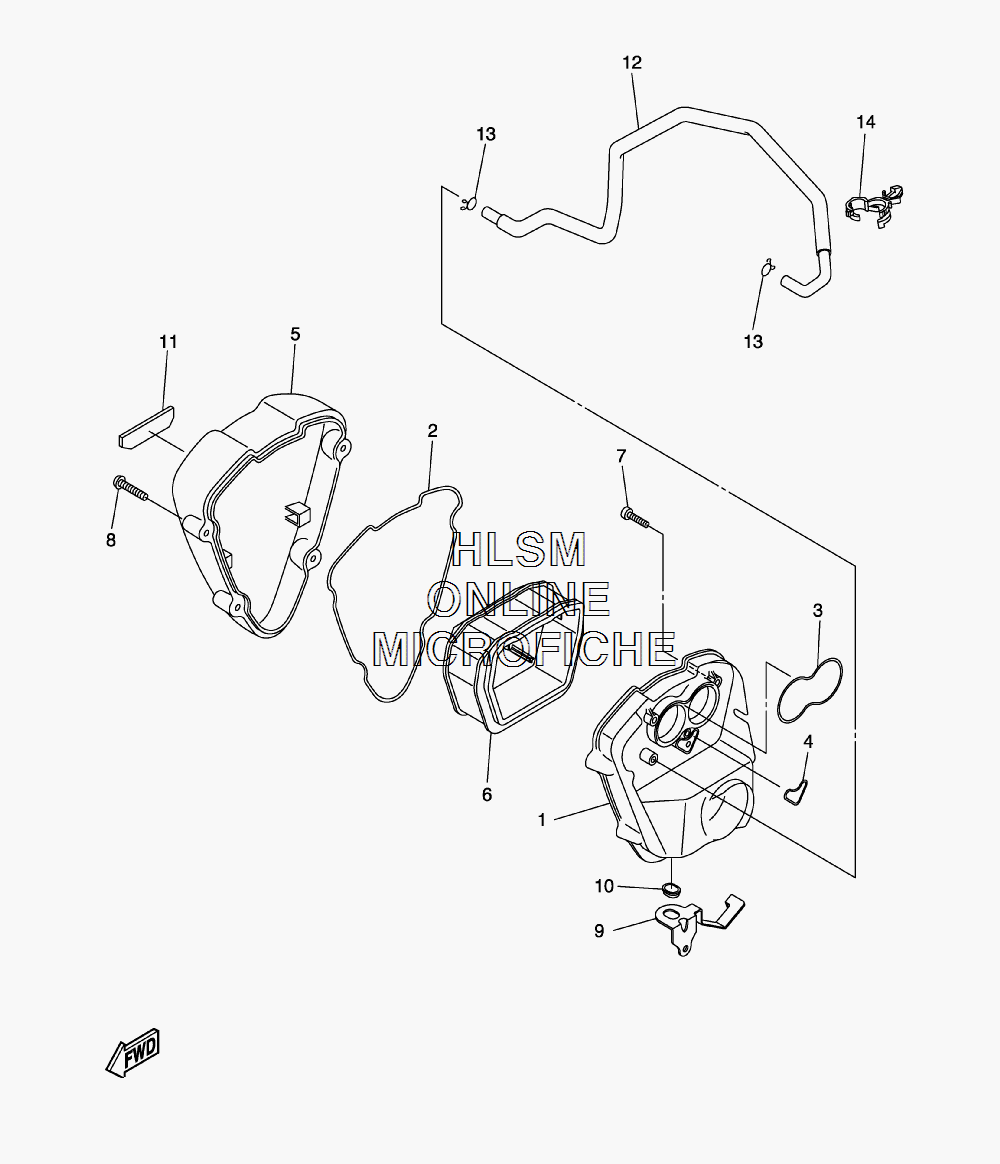

AIR CLEANER W/ INTAKE для Yamaha V STAR 1300 TOURER - 2008 года выпуска`
-
№АртикулНазвание
-
13D8-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
24GA-14452-00-00 SEALSEAL
-
33D8-14457-00-00 SEALSEAL
-
43D8-14462-00-00 SEALSEAL
-
53D8-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
63D8-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
791312-05025-00 BOLTBOLT
-
890111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
93D8-14498-00-00 STAY 1STAY 1
-
1090480-01558-00 GROMMETGROMMET
-
113D8-1442K-00-00 EMBLEM 2EMBLEM 2
-
123D8-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1390467-16195-00 CLIP,SCISSORCLIP,SCISSOR
-
1490464-20009-00 CLAMPCLAMP
