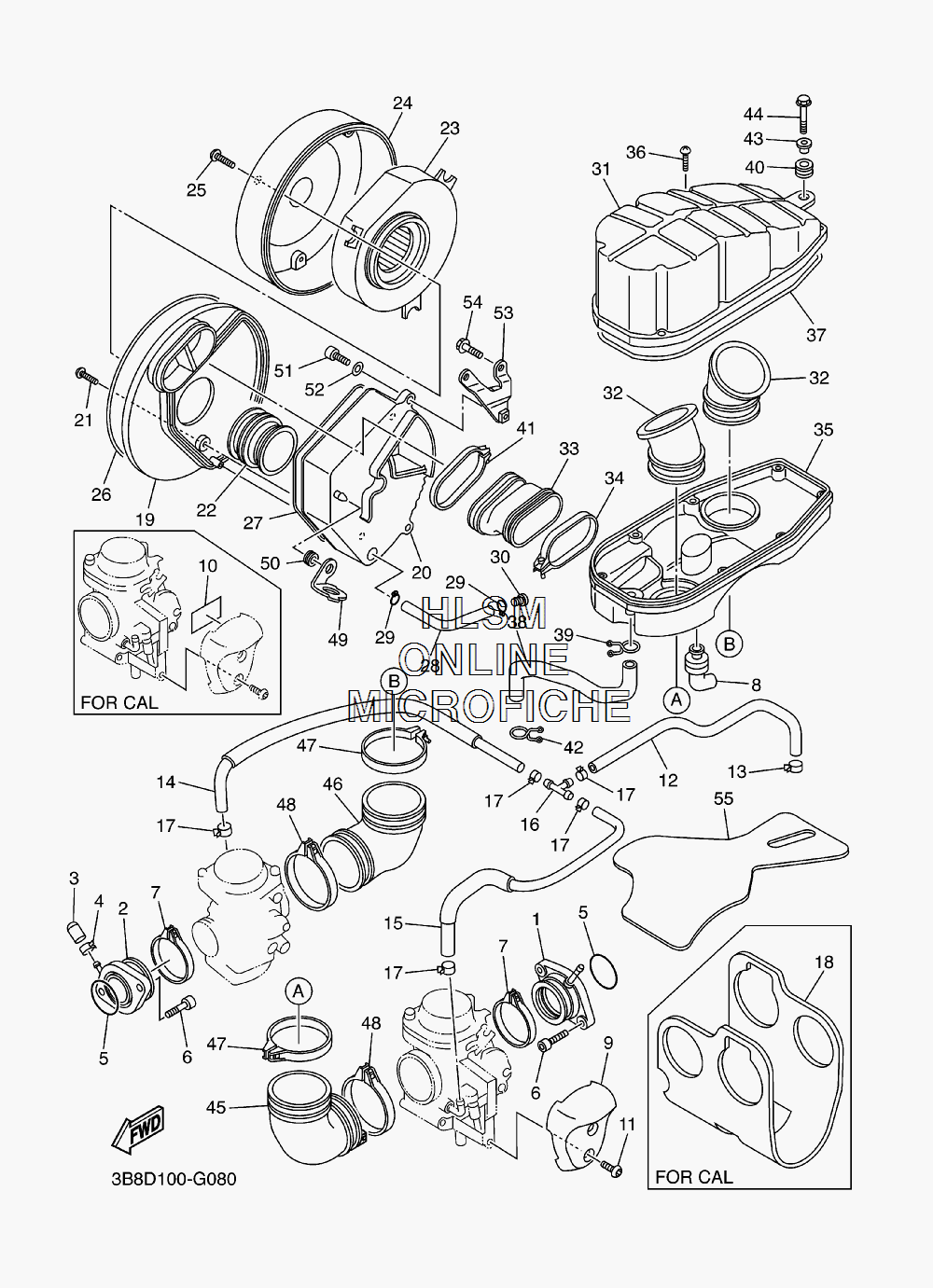

AIR CLEANER W/ INTAKE для Yamaha V STAR 1100 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
15EL-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
25EL-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
316G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
490467-10039-00 CLIP, SCISSORCLIP, SCISSOR
-
593210-44545-00 O-RINGO-RING
-
691317-06020-00 BOLT (4FL)BOLT (4FL)
-
75EL-13474-00-00 BANDBAND
-
85EL-14987-00-00 HOSEHOSE
-
95EL-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
103SP-21732-00-00 SEAL 1SEAL 1
-
1192014-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
125EL-14294-10-00 HOSEHOSE
-
1390467-11175-00 CLIPCLIP
-
145EL-14349-10-00 PIPEPIPE
-
155EL-14348-10-00 PIPE 1PIPE 1
-
1690413-07007-00 WAY 3WAY 3
-
1790467-10135-00 CLIP, SCISSORCLIP, SCISSOR
-
185EL-14477-00-00 PLATEPLATE
-
195EL-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
205EL-14417-02-00 COVER 1COVER 1
-
2197707-50116-00 SCREW, TAPPINGSCREW, TAPPING
-
225EL-14437-00-00 DUCTDUCT
-
235EL-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
245EL-14421-10-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
2592014-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
264TR-14452-00-00 SEALSEAL
-
275EL-14452-00-00 SEALSEAL
-
285EL-14148-00-00 PIPEPIPE
-
2990467-11106-00 CLIPCLIP
-
3090338-08174-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
315EL-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
325EL-14454-00-00 JOINTJOINT
-
335EL-1440F-00-00 JOINT, AIR FILTER 1JOINT, AIR FILTER 1
-
345EL-14455-00-00 BANDBAND
-
355EL-14432-00-00 SILENCER, INNERSILENCER, INNER
-
3697707-50125-00 SCREW, TRUSSSCREW, TRUSS
-
375EL-14462-00-00 SEALSEAL
-
385EL-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3990467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
4090480-12314-00 GROMMETGROMMET
-
415EL-14455-00-00 BANDBAND
-
4290467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
4390387-065J6-00 COLLARCOLLAR
-
4495817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
455EL-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
465EL-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
4790450-72095-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4890450-63096-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
495EL-14499-00-00 STAY 2STAY 2
-
5090480-13398-00 GROMMETGROMMET
-
5191317-06020-00 BOLT (4FL)BOLT (4FL)
-
5292907-06600-00 WASHER, PLATE (6TA)WASHER, PLATE (6TA)
-
535EL-14414-00-00 STAY 2STAY 2
-
5495817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
555EL-12682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
