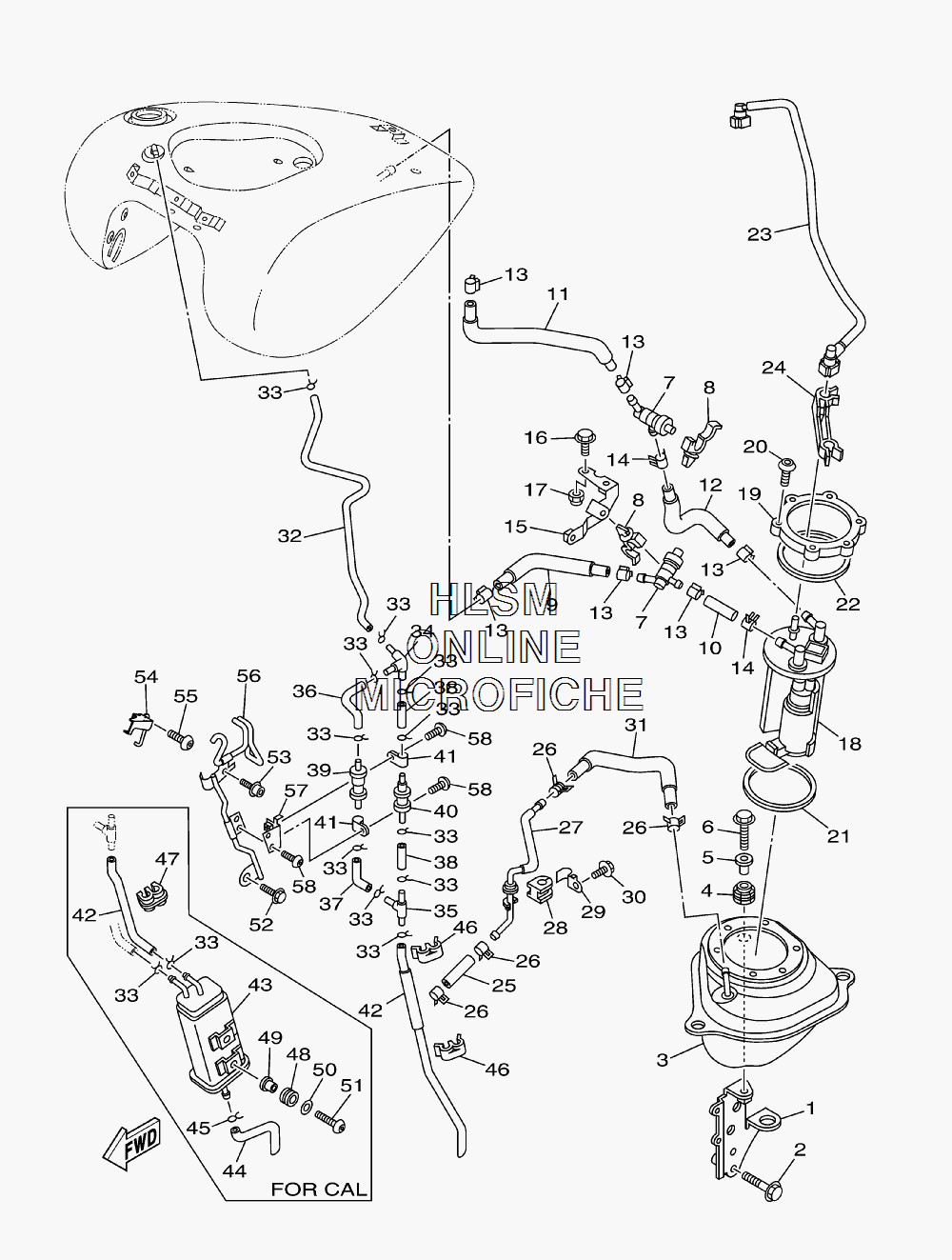

FUEL TANK 2 для Yamaha STRATOLINER MIDNIGHT - 2008 года выпуска
-
№АртикулНазвание
-
11D7-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
295027-08055-00 BOLT, FLANGEBOLT, FLANGE
-
31D7-24280-00-00 TANK, FUELTANK, FUEL
-
41D7-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
590387-0700G-00 COLLARCOLLAR
-
695817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
71D7-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
890464-20010-00 CLAMPCLAMP
-
95C7-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
105C7-24312-00-00 PIPE 2PIPE 2
-
115C7-24313-00-00 PIPE 3PIPE 3
-
125C7-24314-00-00 PIPE 4PIPE 4
-
135PX-2411M-00-00 CLIPCLIP
-
1490467-16009-00 CLIPCLIP
-
151D7-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
1690119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1795307-05800-00 NUTNUT
-
181D7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
195PX-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2090111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
215PX-24486-00-00 O-RINGO-RING
-
225PX-24145-00-00 PLATE, DAMPERPLATE, DAMPER
-
231D7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2490464-15004-00 CLAMPCLAMP
-
255C7-13973-00-00 PIPE, FUEL 3PIPE, FUEL 3
-
2690467-13071-00 CLIP (3YX)CLIP (3YX)
-
271D7-14295-00-00 PIPE, FUELPIPE, FUEL
-
285PX-14435-00-00 GROMMETGROMMET
-
295PX-14261-00-00 HOLDERHOLDER
-
3095027-06010-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
315C7-13974-00-00 PIPE, FUEL 4PIPE, FUEL 4
-
321D7-24316-20-00 PIPE 6PIPE 6
-
3390467-09002-00 CLIPCLIP
-
3390467-09002-00 CLIPCLIP
-
3490413-06002-00 WAY 3WAY 3
-
3590413-06031-00 WAY 3WAY 3
-
361D7-24317-20-00 PIPE 7PIPE 7
-
371D7-24321-10-00 PIPE 10PIPE 10
-
381D7-24322-10-00 PIPE 11PIPE 11
-
395PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
404WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4190461-15139-00 CLAMPCLAMP
-
421D7-24317-00-00 PIPE 7PIPE 7
-
421D7-24324-10-00 PIPE 13PIPE 13
-
431D7-24170-00-00 CANISTER ASSYCANISTER ASSY
-
441D7-24325-00-00 PIPE 14PIPE 14
-
4590467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
4690464-10M38-00 CLAMPCLAMP
-
4790464-10M57-00 CLAMPCLAMP
-
4890480-13163-00 GROMMETGROMMET
-
4990387-062L2-00 COLLARCOLLAR
-
5090201-06023-00 WASHER, PLATEWASHER, PLATE
-
5190111-06046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5290105-06791-00 BOLT, WASHER (4EB)BOLT, WASHER (4EB)
-
5391314-06014-00 BOLT, SOCKETBOLT, SOCKET
-
541D7-26328-10-00 GUIDE, CABLEGUIDE, CABLE
-
5590111-06010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
561D7-26292-00-00 STAYSTAY
-
571D7-26299-00-00 PLATE, MIRROR FITTING 2PLATE, MIRROR FITTING 2
-
5892017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
