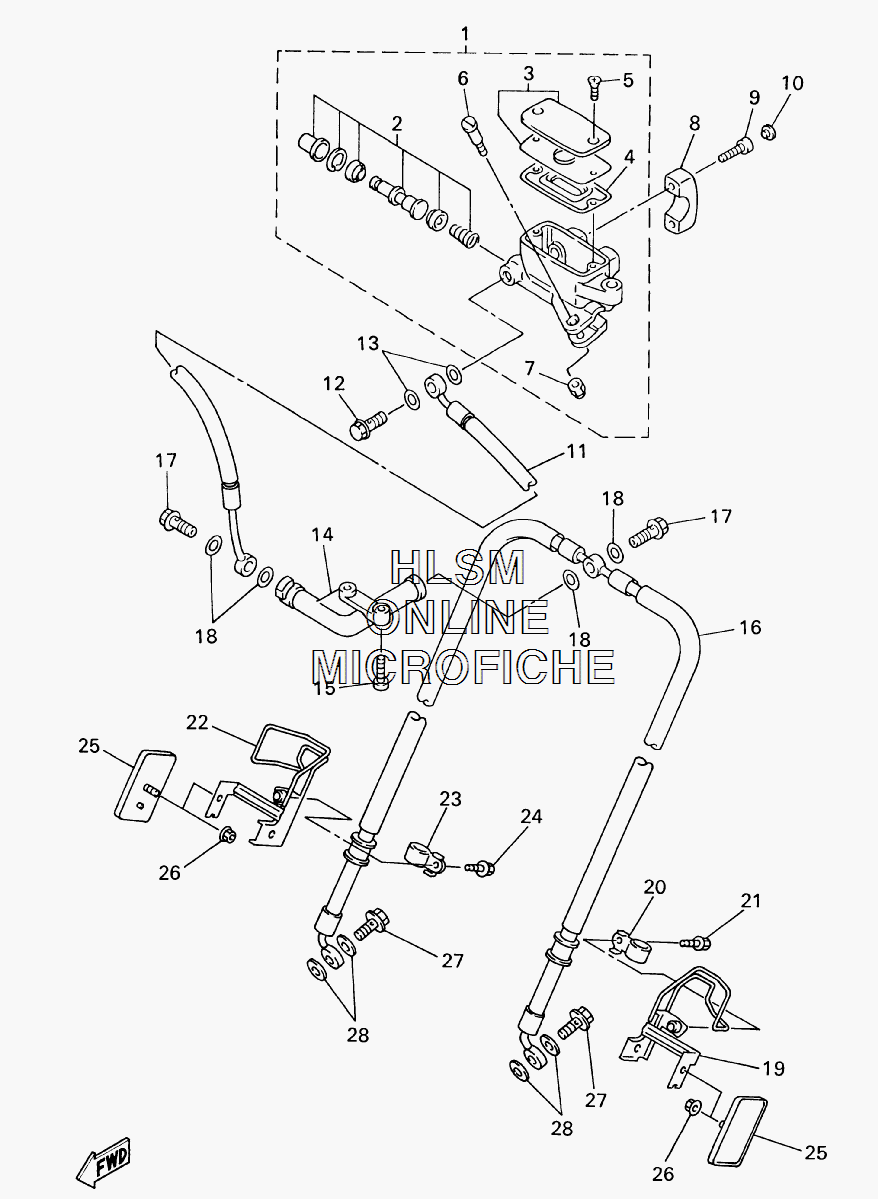

BRAKE - FRONT MASTER CYLINDER для Yamaha ROYAL STAR VENTURE - 2008 года выпуска`
-
№АртикулНазвание
-
14XY-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24K0-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VN-W2585-20-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
54NK-2589H-00-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
64NK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795604-06100-00 ...NUT, U (4NK)...NUT, U (4NK)
-
84NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
991314-06025-00 BOLT (3DM)BOLT (3DM)
-
1090338-06162-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
114XY-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1290401-10020-00 BOLT, UNIONBOLT, UNION
-
1390430-10005-00 GASKETGASKET
-
144NK-25885-00-00 JOINTJOINT
-
1591317-06020-00 BOLT (4FL)BOLT (4FL)
-
164WM-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1790401-10020-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
194XY-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2090461-10132-00 CLAMPCLAMP
-
2195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
224XY-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2390461-10132-00 CLAMPCLAMP
-
2495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2511H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2695707-05500-00 NUT, FLANGENUT, FLANGE
-
2790401-10020-00 BOLT, UNIONBOLT, UNION
-
2890430-10005-00 GASKETGASKET
