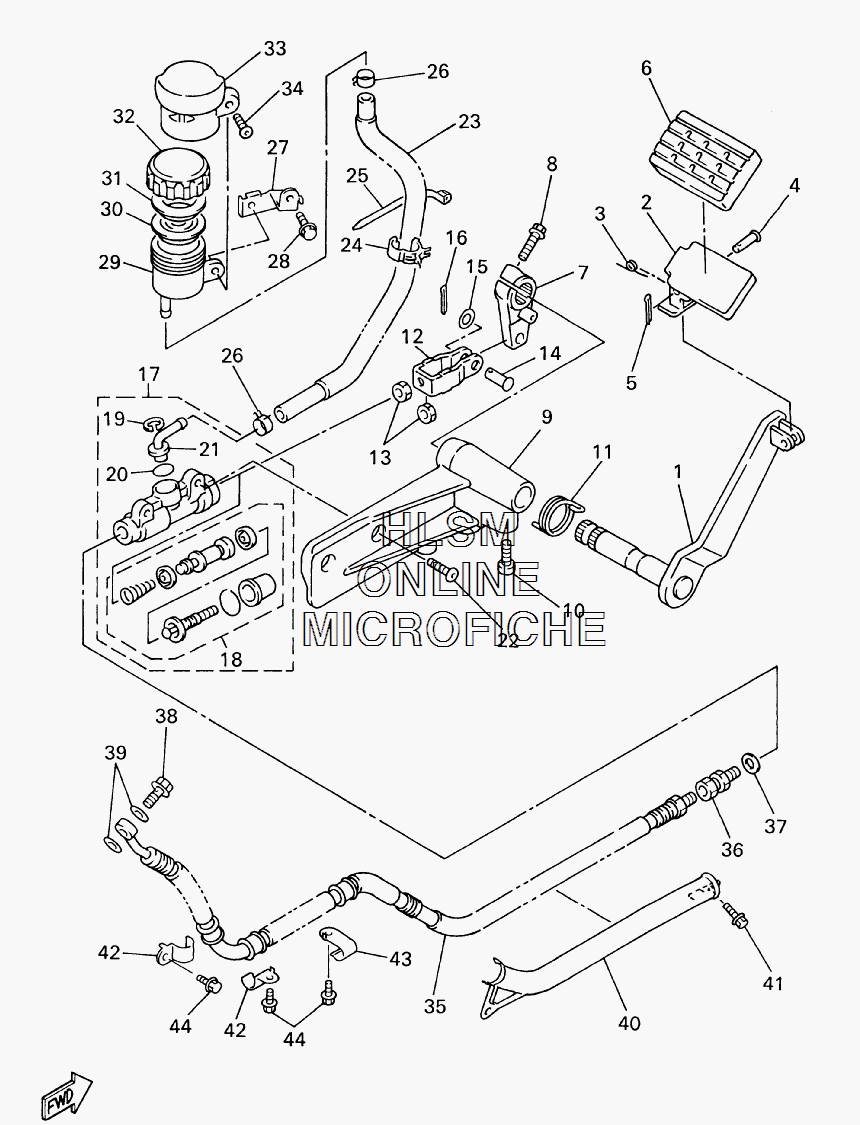

BRAKE - REAR MASTER CYLINDER для Yamaha ROYAL STAR TOUR DELUXE - 2008 года выпуска
-
№АртикулНазвание
-
14NK-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491702-06022-00 PIN, CLEVISPIN, CLEVIS
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
74NK-27262-00-00 LEVERLEVER
-
895027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
94NK-2741L-01-00 BRACKET 4BRACKET 4
-
1091317-08016-00 BOLTBOLT
-
114NK-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
-
124NK-27222-00-00 JOINTJOINT
-
1395307-08700-00 NUT, HEX SMALLNUT, HEX SMALL
-
1490240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1590201-08083-00 WASHER, PLATEWASHER, PLATE
-
1691401-16012-00 PIN, COTTERPIN, COTTER
-
174NK-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
181FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
192VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
2093210-15620-00 ...O-RING...O-RING
-
213LD-2582A-00-00 ...JOINT...JOINT
-
2292014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234XY-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2490464-20191-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
2690467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
274XY-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2895027-06012-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
2931A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
30360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
312GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
322KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
334NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3492014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
354XY-2581J-01-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
363LC-25885-00-00 JOINTJOINT
-
3790430-10005-00 GASKETGASKET
-
3890401-10020-00 BOLT, UNIONBOLT, UNION
-
3990430-10005-00 GASKETGASKET
-
404NK-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4195024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
423XV-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
434XY-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4495027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
