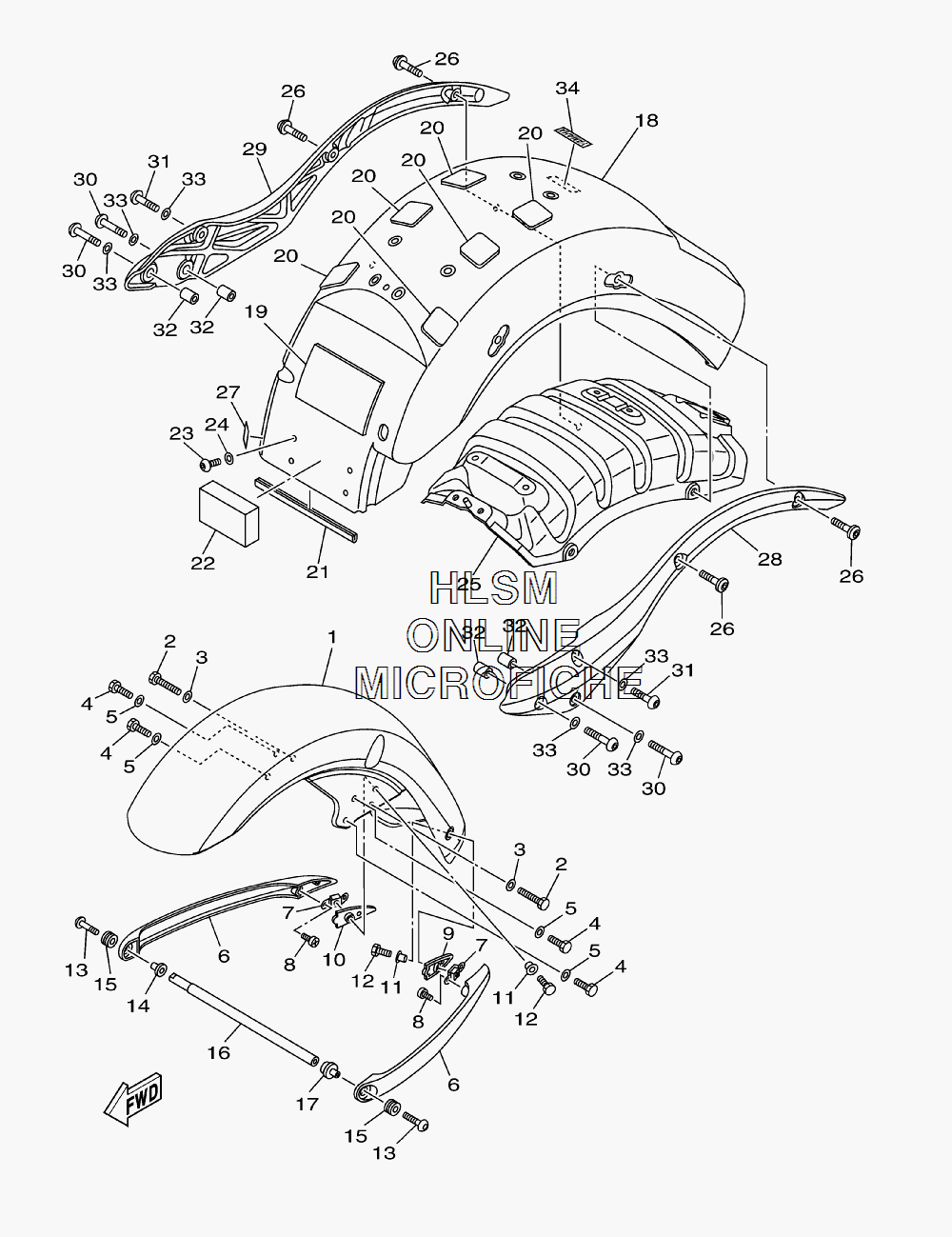

FENDER - FRONT / REAR для Yamaha ROADLINER MIDNIGHT - 2008 года выпуска`
-
№АртикулНазвание
-
11D7-YK215-00-P1 FRONT FENDER COMP. (FOR SMX)FRONT FENDER COMP. (FOR SMX)
-
297027-08030-00 BOLTBOLT
-
392907-08600-00 WASHER, PLATE (6TA)WASHER, PLATE (6TA)
-
497027-08016-00 BOLTBOLT
-
592907-08600-00 WASHER, PLATE (6TA)WASHER, PLATE (6TA)
-
61D7-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
71D7-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
897707-40610-00 SCREW, TAPPINGSCREW, TAPPING
-
91D7-21541-00-00 DAMPER 1DAMPER 1
-
101D7-21542-00-00 DAMPER 2DAMPER 2
-
1190387-087L0-00 COLLARCOLLAR
-
1297012-06014-00 BOLTBOLT
-
1390110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490387-06125-00 COLLARCOLLAR
-
1590480-14323-00 GROMMETGROMMET
-
161D7-21544-00-00 COLLAR 1COLLAR 1
-
171D7-21545-00-00 PLATE 3PLATE 3
-
181D7-YK216-00-P1 REAR FENDER C0MP. (FOR SMX)REAR FENDER C0MP. (FOR SMX)
-
195PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
205PX-21669-01-00 SEALSEAL
-
211D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
221D7-21639-00-00 DAMPER 2DAMPER 2
-
2390111-06065-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
2490201-06036-00 WASHER, PLATEWASHER, PLATE
-
251D7-21643-00-00 STAY, REARSTAY, REAR
-
2690111-08023-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
273FY-21575-01-00 SEAL 1SEAL 1
-
281D7-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
291D7-21614-10-00 STAY, FENDER 2STAY, FENDER 2
-
3092014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3299530-14016-00 PIN,DOWEL (59V)PIN,DOWEL (59V)
-
3390201-10M63-00 WASHER, PLATEWASHER, PLATE
-
341D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
