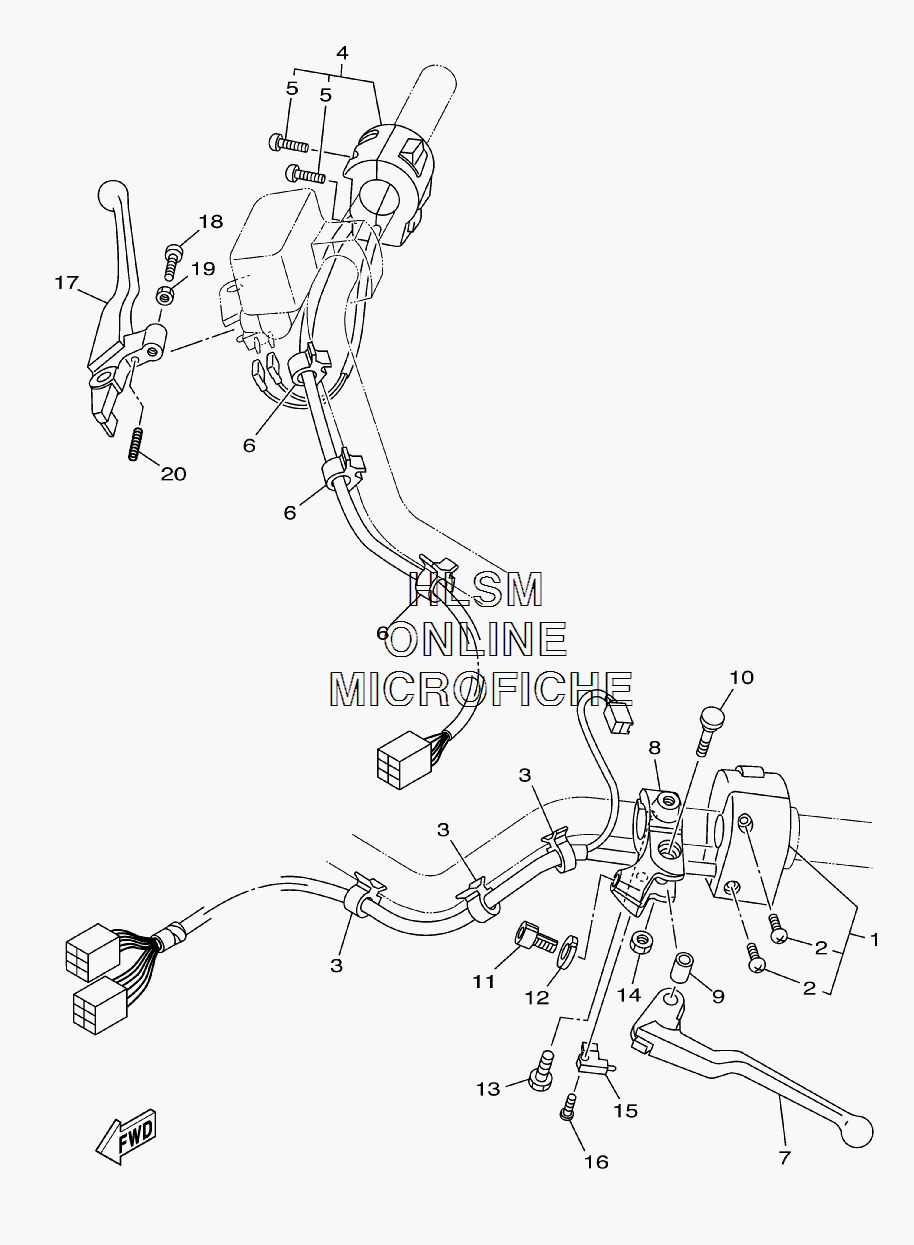

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROAD STAR WARRIOR - 2008 года выпуска`
-
№АртикулНазвание
-
15PX-83973-20-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
390464-15192-00 CLAMPCLAMP
-
45PX-83975-20-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
598507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
690464-10190-00 CLAMPCLAMP
-
74WM-83912-00-00 LEVER 1LEVER 1
-
85BN-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
94TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
104TR-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1190123-08046-00 BOLTBOLT
-
1290179-08148-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1397004-06020-00 BOLT (3DM)BOLT (3DM)
-
1495604-06100-00 NUT, U (4NK)NUT, U (4NK)
-
153YX-82917-01-00 SWITCHSWITCH
-
1698707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
175EY-83922-00-00 LEVER 2LEVER 2
-
1890149-06131-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1990170-06010-00 NUTNUT
-
2090501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
