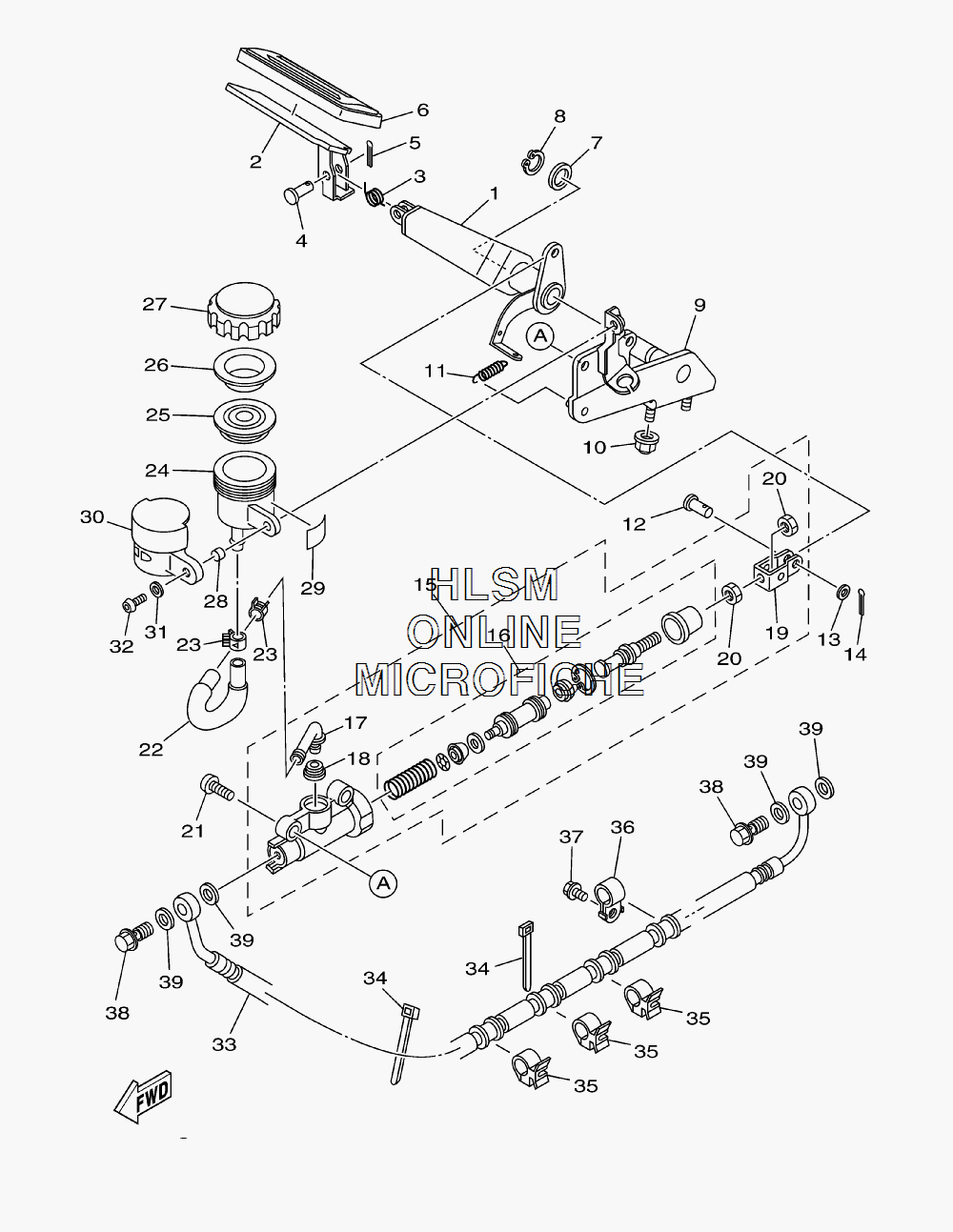

BRAKE - REAR MASTER CYLINDER для Yamaha ROAD STAR S - 2008 года выпуска`
-
№АртикулНазвание
-
14WM-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24WM-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491702-06022-00 PIN, CLEVISPIN, CLEVIS
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
64WM-27285-00-00 CAPCAP
-
790201-152L1-00 WASHER, PLATEWASHER, PLATE
-
899009-15400-00 CIRCLIP (55X)CIRCLIP (55X)
-
95VN-2740A-00-00 BRACKET SUB ASSY (LEFT)BRACKET SUB ASSY (LEFT)
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190506-20534-00 SPRING, TENSIONSPRING, TENSION
-
1290240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1390201-08083-00 WASHER, PLATEWASHER, PLATE
-
1491401-16012-00 PIN, COTTERPIN, COTTER
-
154BP-2583V-01-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
164BP-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
174BP-2582A-00-00 ...CONNECTOR...CONNECTOR
-
184BP-2585F-00-00 ...O-RING...O-RING
-
194BP-27222-02-00 ...JOINT...JOINT
-
2090170-08010-00 ...NUT...NUT
-
2192014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
224WM-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2390467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
2431A-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
25360-25854-01-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
262GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
272KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2890387-06072-00 COLLARCOLLAR
-
291UF-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
304NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3190201-06025-00 WASHER, PLATEWASHER, PLATE
-
3292014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
335VN-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
341UA-82591-00-00 BANDBAND
-
3590464-15192-00 CLAMPCLAMP
-
3690461-10132-00 CLAMPCLAMP
-
3795807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3890401-10020-00 BOLT, UNIONBOLT, UNION
-
3990430-10005-00 GASKETGASKET
