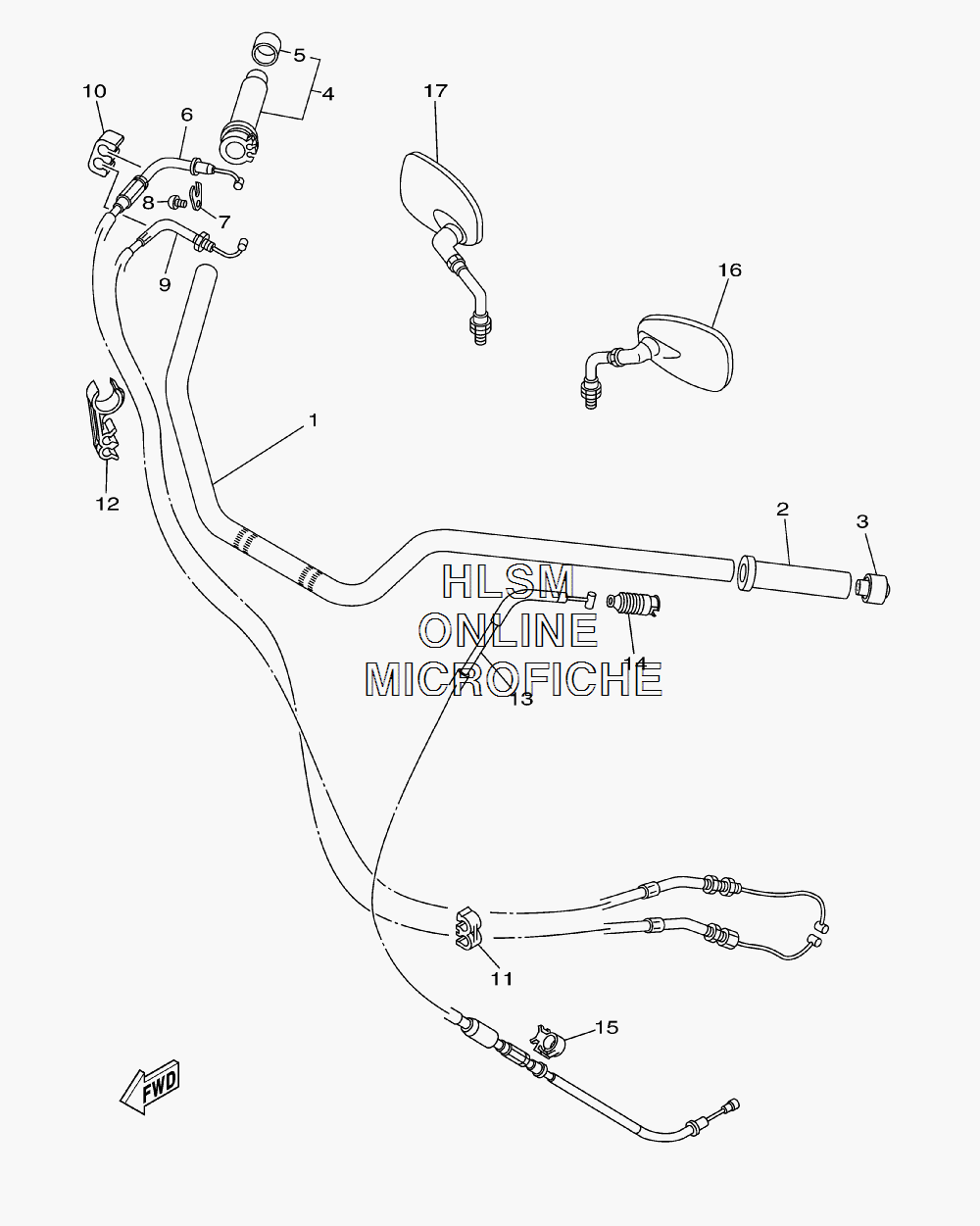

HANDLEBAR W/ CABLES для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2008 года выпуска`
-
№АртикулНазвание
-
15PX-26111-11-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34NK-2628J-00-00 CAP, GRIPCAP, GRIP
-
44NK-26240-00-00 GRIP ASSYGRIP ASSY
-
54NK-2635J-00-00 ...CAP 2...CAP 2
-
65PX-26311-30-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75PX-26393-00-00 HOLDERHOLDER
-
898502-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95PX-26312-30-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1090464-07006-00 CLAMPCLAMP
-
1190464-06214-00 CLAMPCLAMP
-
1290464-13006-00 CLAMPCLAMP
-
135PX-26335-30-00 CABLE, CLUTCHCABLE, CLUTCH
-
141E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1590464-10190-00 CLAMPCLAMP
-
165PX-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
174NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
