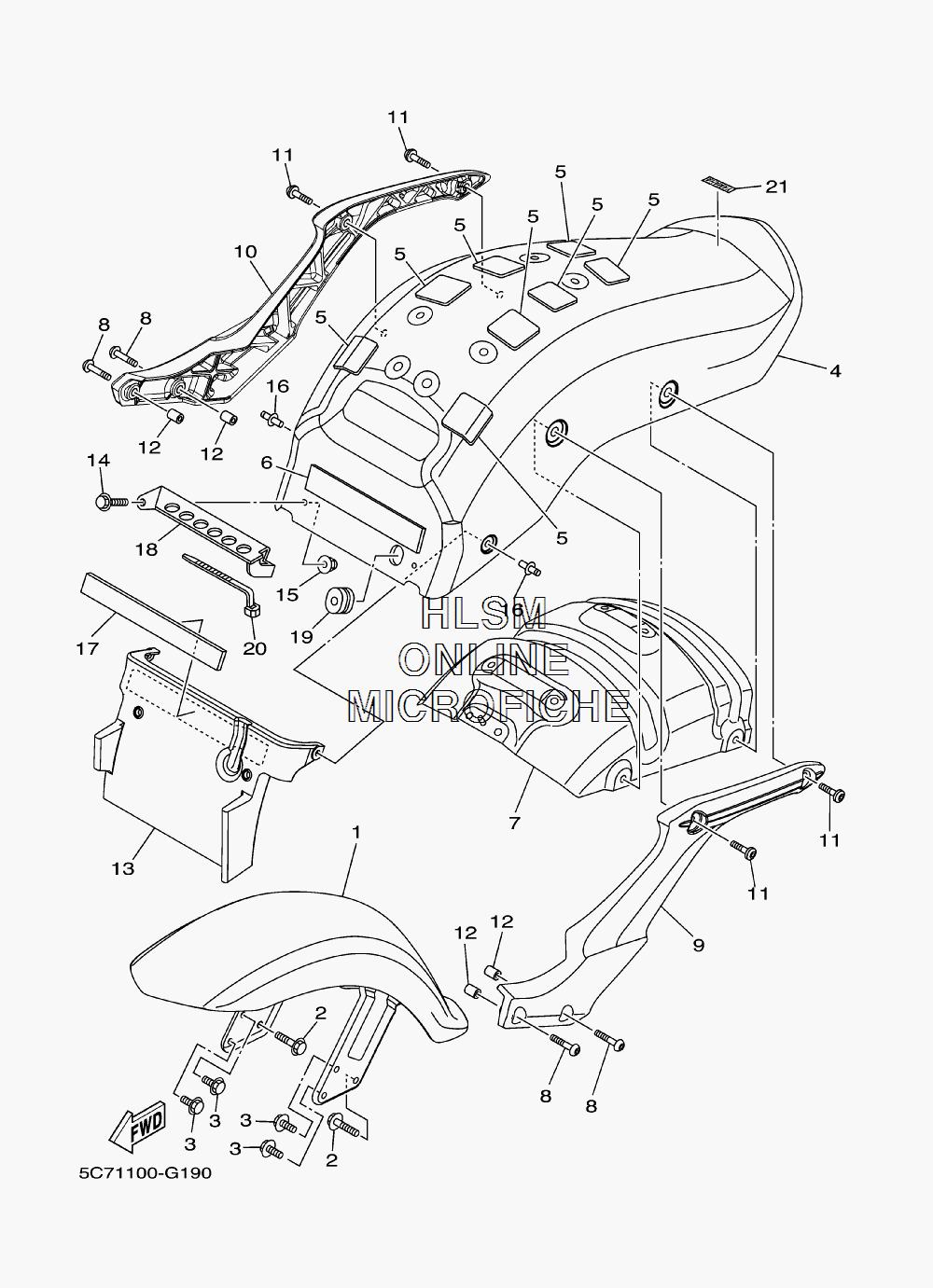

FENDER - FRONT / REAR для Yamaha RAIDER - 2008 года выпуска`
-
№АртикулНазвание
-
15C7-YK215-00-P1 FRONT FENDER COMP. FOR SMXFRONT FENDER COMP. FOR SMX
-
290119-08111-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-08110-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45C7-YK216-00-P1 REAR FENDER C0MP. FOR SMXREAR FENDER C0MP. FOR SMX
-
55PX-21669-01-00 SEALSEAL
-
65C7-21649-00-00 DAMPERDAMPER
-
75C7-21643-00-00 STAY, REARSTAY, REAR
-
890110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95C7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
105C7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
1192014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1299530-14016-00 PIN, DOWEL (59V)PIN, DOWEL (59V)
-
135C7-21629-00-00 GUARD, MUDGUARD, MUD
-
1495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690269-07077-00 RIVETRIVET
-
175C7-21639-00-00 DAMPER 2DAMPER 2
-
185C7-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
1990480-01015-00 GROMMETGROMMET
-
2090464-13077-00 CLAMPCLAMP
-
211D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
