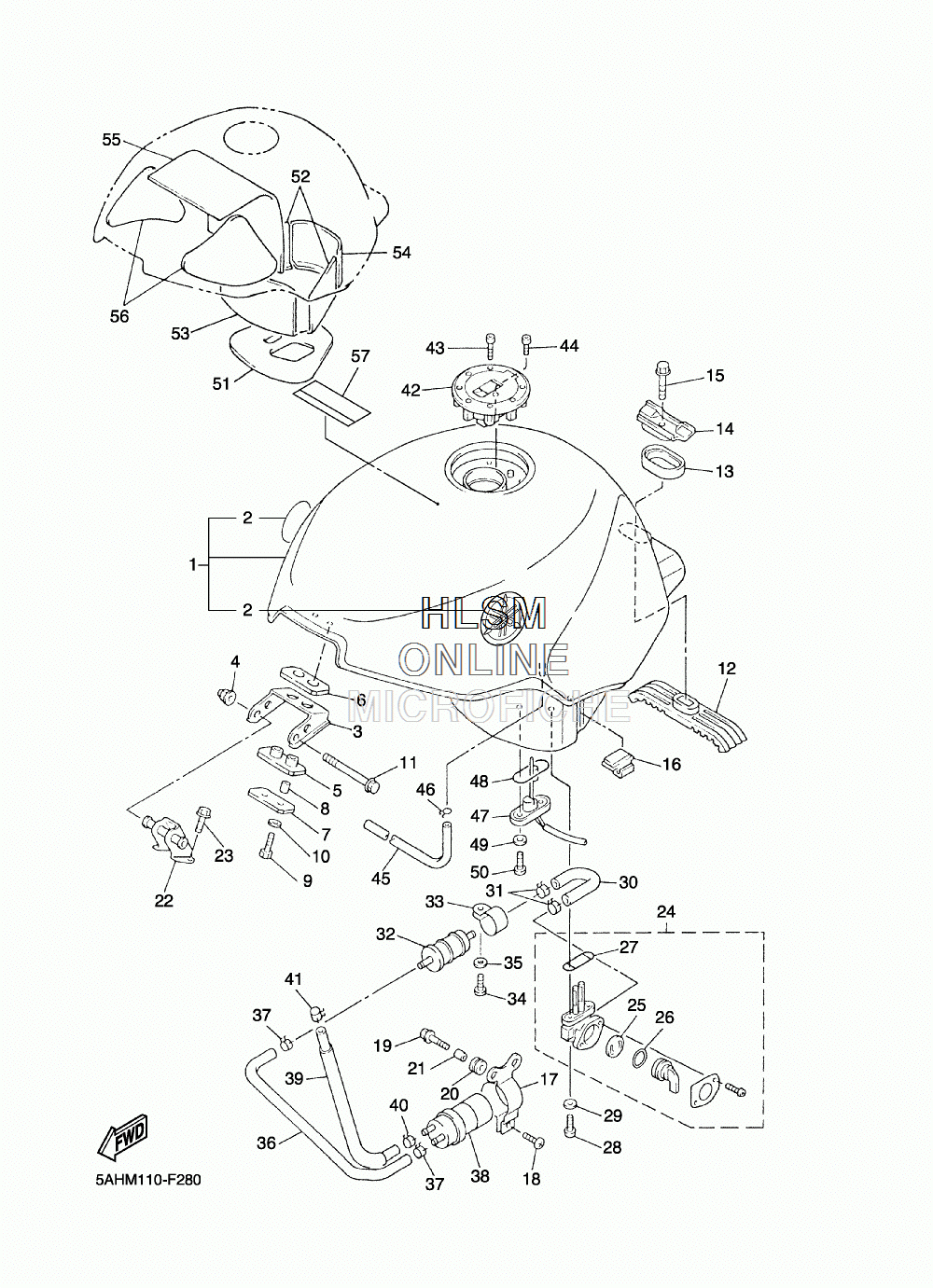

FUEL TANK для Yamaha YZF600R (5AHM/5AHN) [YZF600RW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14TV-Y2410-10-W2 FUEL TANK COMP. (5AHM)FUEL TANK COMP. (5AHM)
-
14TV-Y2410-30-W3 FUEL TANK COMP. (5AHN)FUEL TANK COMP. (5AHN)
-
25VX-2411B-10-00 ...EMBLEM...EMBLEM
-
34FM-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490176-06055-00 NUT, CROWNNUT, CROWN
-
52GH-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
62GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
72GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-06299-00 COLLARCOLLAR
-
997007-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1195817-06075-00 BOLT, FLANGEBOLT, FLANGE
-
1233M-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
133Y6-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
144FM-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1595807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
164TV-24183-10-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
173CV-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1898907-05010-00 SCREW, BINDSCREW, BIND
-
1990119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090480-13163-00 GROMMETGROMMET
-
2190387-060G7-00 COLLARCOLLAR
-
224TV-24115-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
2395027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
244TV-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
253XV-24523-00-00 ...VALVE...VALVE
-
263XV-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
274X8-24512-00-00 ...O-RING...O-RING
-
2890149-06008-00 SCREW, SPECIAL SHAPESCREW, SPECIAL SHAPE
-
2990202-05193-00 WASHER, PLATEWASHER, PLATE
-
304TV-24313-00-00 PIPE 3PIPE 3
-
3190467-14057-00 CLIPCLIP
-
324TV-24560-00-00 FILTER ASSYFILTER ASSY
-
331AE-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
3498507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3592907-06600-00 WASHER, PLATEWASHER, PLATE
-
364TV-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3790467-14057-00 CLIPCLIP
-
384TV-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
394TV-14294-00-00 HOSEHOSE
-
4090467-13123-00 CLIPCLIP
-
4190467-11032-00 CLIPCLIP
-
424FM-24602-10-00 CAP ASSY (5AHM)CAP ASSY (5AHM)
-
424HM-24602-00-00 CAP ASSY (5AHN)CAP ASSY (5AHN)
-
4390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4491317-05010-00 BOLTBOLT
-
4590445-107H3-00 HOSE (L700)HOSE (L700)
-
4690467-09006-00 CLIPCLIP
-
473GM-85752-02-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
4842X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4990202-05193-00 WASHER, PLATEWASHER, PLATE
-
5090149-06008-00 SCREW, SPECIAL SHAPESCREW, SPECIAL SHAPE
-
514TV-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
524TV-24145-10-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
534TV-24145-20-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
544TV-24145-30-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
554TV-24145-40-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
564TV-24145-50-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
575GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
