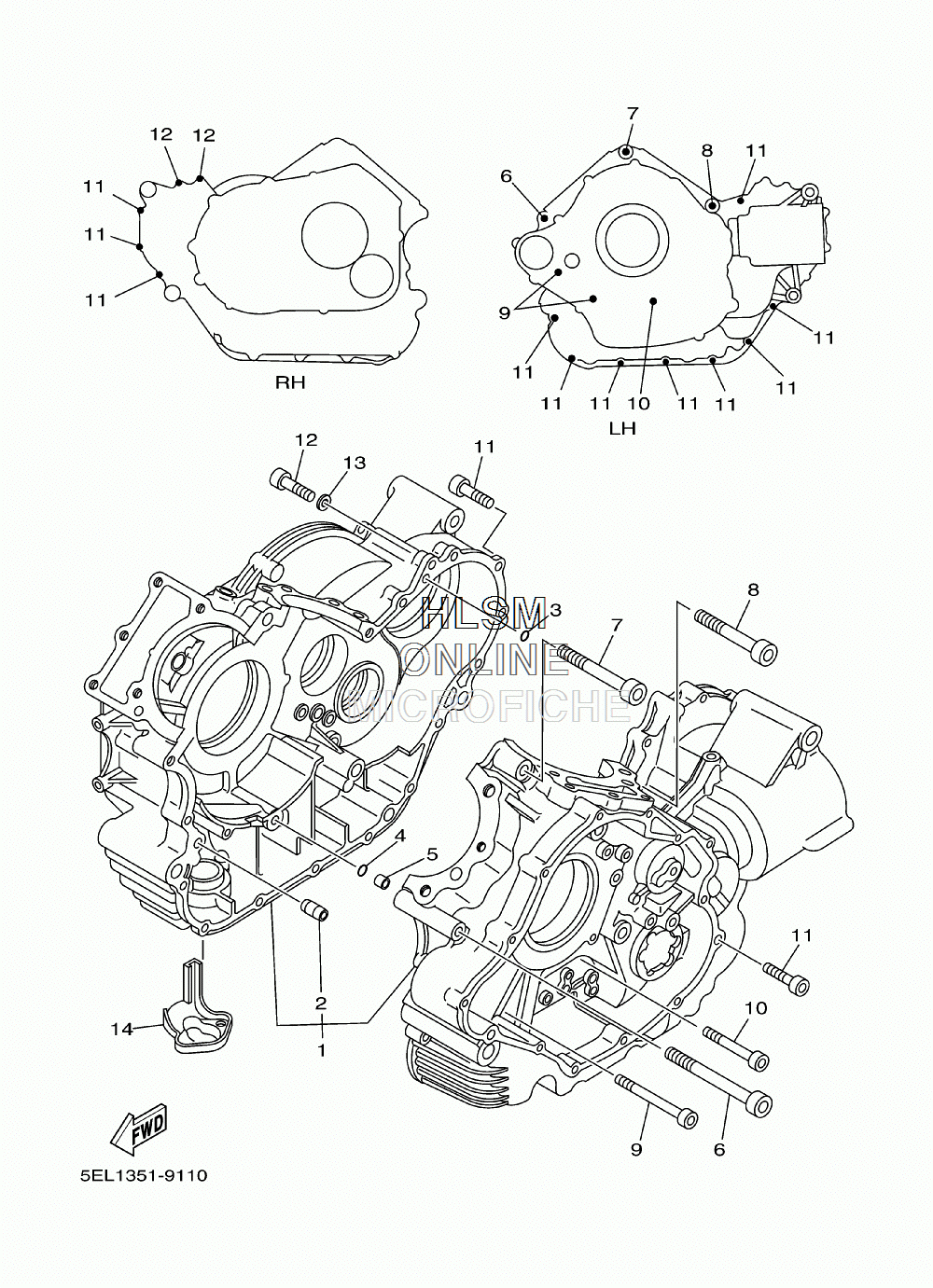

CRANKCASE для Yamaha V STAR 100 CUSTOM (3B89/3B8A) [XVS11W/C] - 2007 года выпуска
-
№АртикулНазвание
-
15YS-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
393210-07135-00 O-RINGO-RING
-
493210-07135-00 O-RINGO-RING
-
590387-064E8-00 COLLARCOLLAR
-
691317-10100-00 BOLTBOLT
-
791317-10070-00 BOLTBOLT
-
891317-10060-00 BOLTBOLT
-
991317-06080-00 BOLTBOLT
-
1091317-06055-00 BOLTBOLT
-
1191317-06030-00 BOLTBOLT
-
1291314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390430-06014-00 GASKETGASKET
-
144X7-15491-00-00 PROTECTORPROTECTOR
