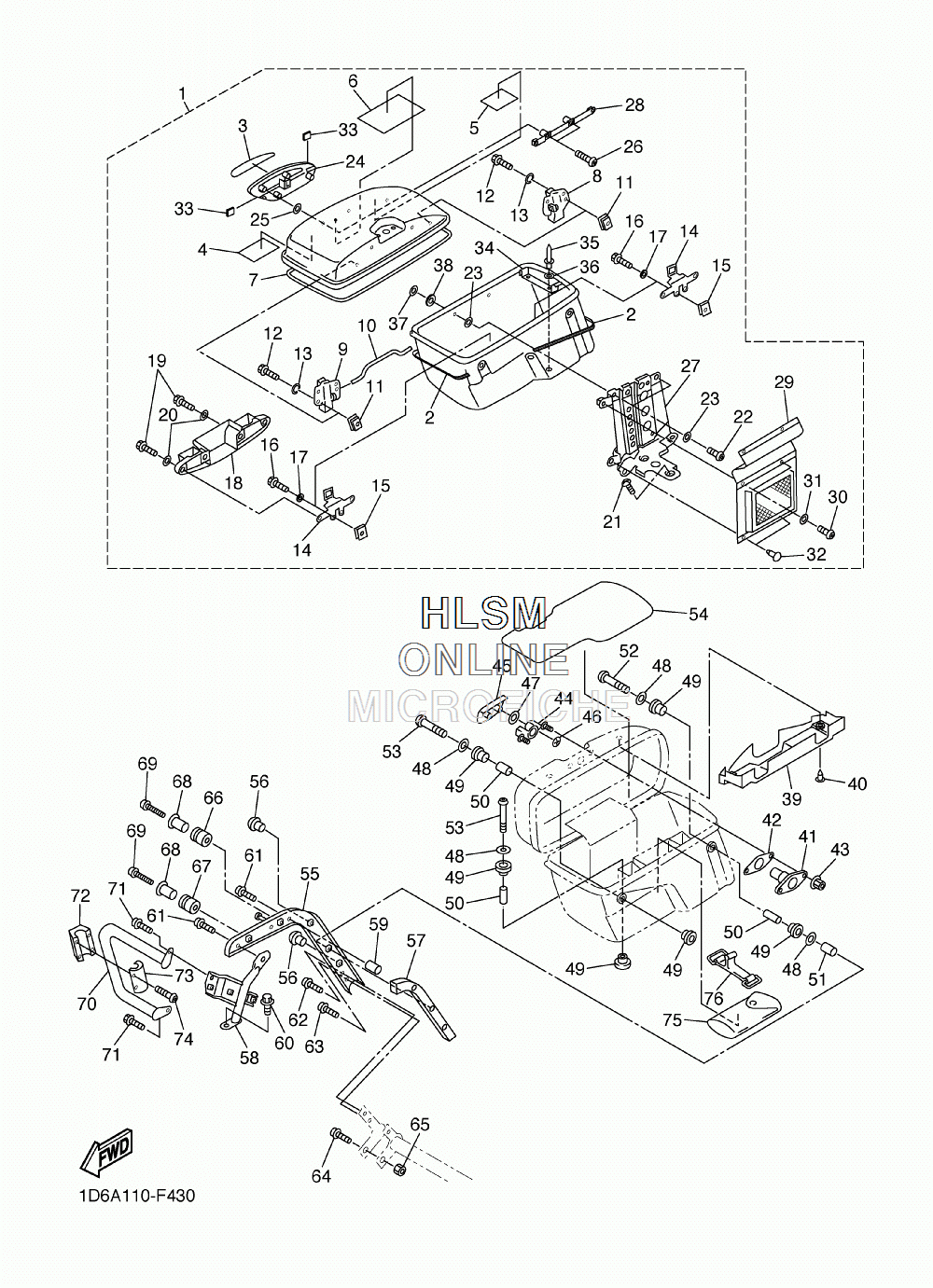

SADDLEBAG 2 для Yamaha ROYAL STAR TOUR DELUXE (1D6A/1D6B) [XVZ13CTW/C] - 2007 года выпуска
-
№АртикулНазвание
-
14XY-Y2844-2V-9X SADDLEBAG COMP, 2 (DRMK/SMX)SADDLEBAG COMP, 2 (DRMK/SMX)
-
14XY-Y2844-2X-9X SADDLEBAG COMP, 2 (DRMK/SMX)SADDLEBAG COMP, 2 (DRMK/SMX)
-
21D6-2840J-30-00 ...SADDLEBAG GRAPHIC SET 2...SADDLEBAG GRAPHIC SET 2
-
31D6-2847B-00-00 ...ORNAMENT 2...ORNAMENT 2
-
41D6-2179W-10-00 ...PLATE, EPA (NON CALIFORNIA)...PLATE, EPA (NON CALIFORNIA)
-
41D6-2179R-20-00 ...PLATE, EPA 2 (CALIFORNIA)...PLATE, EPA 2 (CALIFORNIA)
-
54LE-21686-A0-00 ...PLATE, ROUTING 2...PLATE, ROUTING 2
-
61D6-28446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
74XY-28428-00-00 ...SEAL 1...SEAL 1
-
84XY-28494-00-00 ...HOOK 3...HOOK 3
-
94XY-28495-00-00 ...HOOK 4...HOOK 4
-
104XY-2841A-00-00 ...LEVER...LEVER
-
1190183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1297007-05012-00 ...BOLT...BOLT
-
1392907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
144XY-28498-00-00 ...HOOK 2...HOOK 2
-
1590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1697007-05016-00 ...BOLT...BOLT
-
1792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
184XY-2843J-00-00 ...COVER 3...COVER 3
-
1992017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2092907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
2197707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2292017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2390201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
244XY-28454-10-00 ...HINGE 3...HINGE 3
-
2590202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2692017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
274XY-28437-00-00 ...REINFORCEMENT 2...REINFORCEMENT 2
-
284XY-2847H-00-00 ...PLATE 5...PLATE 5
-
294XY-2845M-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
3092017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3192907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
3290269-05039-00 ...RIVET...RIVET
-
334XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
344XY-2843L-00-00 ...PLATE...PLATE
-
3590267-32109-00 ...RIVET, BLIND...RIVET, BLIND
-
3692907-03600-00 ...WASHER...WASHER
-
3790201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
384XY-28429-00-00 ...SEAL 2...SEAL 2
-
394XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
4090269-06081-00 RIVETRIVET
-
414XY-W2843-00-00 LOCK ASSY 3LOCK ASSY 3
-
424XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
4395607-05200-00 NUT, U FLANGENUT, U FLANGE
-
444XY-2849H-00-00 PLATE 6PLATE 6
-
454XY-2843C-00-00 COVER 6COVER 6
-
4690183-04005-00 NUT, SPRINGNUT, SPRING
-
474KJ-28371-00-00 DAMPERDAMPER
-
4890201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4990480-20447-00 GROMMETGROMMET
-
5090387-084R5-00 COLLARCOLLAR
-
5190387-0811N-00 COLLARCOLLAR
-
5292017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5392017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
544XY-2848K-00-00 SEAT 2SEAT 2
-
551D6-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
5690338-07259-00 PLUGPLUG
-
571D6-28416-00-00 DAMPER 2DAMPER 2
-
584YE-28414-02-00 STAY, FRONT GUARD 2STAY, FRONT GUARD 2
-
5990387-0811N-00 COLLARCOLLAR
-
6095807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
6190111-08021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6292014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6392014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
6595307-08800-00 NUTNUT
-
661D6-2843A-00-00 DAMPER, GRIPDAMPER, GRIP
-
671D6-2843N-00-00 DAMPER, GRIP 2DAMPER, GRIP 2
-
6890387-08029-00 COLLARCOLLAR
-
6990111-08014-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
704XY-2842K-00-00 GUARD, SADDLEBAG 2GUARD, SADDLEBAG 2
-
7195814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
724YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
734YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
7497707-30514-00 SCREW, TAPPINGSCREW, TAPPING
-
754XY-28100-01-00 TOOL KITTOOL KIT
-
7655K-2811G-00-00 BANDBAND
